Configuring Quality of Service
Defining General Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 279
11
Mapping DSCP to Queue
The
DSCP to Queue Page
enables mapping DSCP values to specific queues.
To map DCSP to Queues:
STEP 1 Click Quality of Service > General > DSCP to Queue. The
DSCP to Queue Page
opens:

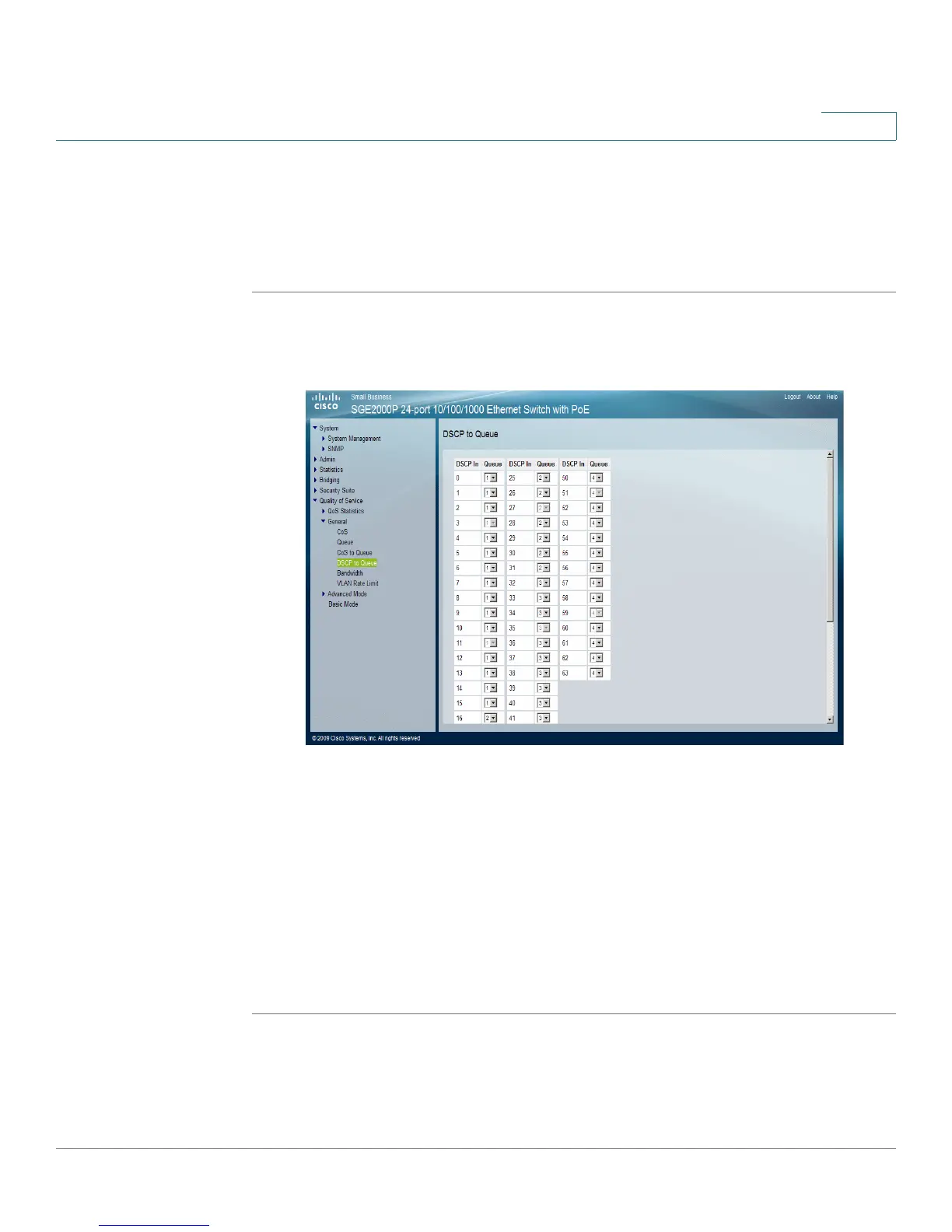

DSCP to Queue Page
The
DSCP to Queue Page
contains the following fields:
• DSCP In — Indicates the Differentiated Services Code Point (DSCP) value in
the incoming packet. The following values are reserved and cannot be
changed: 3, 11, 19, 27, 35, 43, 51, and 59.
• Queue — Defines the traffic forwarding queue to which the DSCP priority is
mapped.
STEP 2 Define the relevant fields.
STEP 3 Click Apply. The device is updated.
