Configuring VLANs
Defining VLAN Membership
Cisco Small Business SFE/SGE Managed Switches Administration Guide 169
6
Interface Status — Indicates the interfaces membership status in the VLAN.
The possible field values are:
-
Untagged
— Indicates the interface is an untagged VLAN member.
Packets forwarded by the interface are untagged.
-
Tagged
— Indicates the interface is a tagged member of a VLAN. All
packets forwarded by the interface are tagged. The packets contain
VLAN information.
-
Exclude
— Excludes the interface from the VLAN. However, the interface
can be added to the VLAN through GARP.
-
Forbidden
— Denies the interface VLAN membership, even if GARP
indicates the port is to be added.
Modifying VLAN Membership
STEP 2 Click the Edit button. The
Edit Edit Interface Status Page
opens:

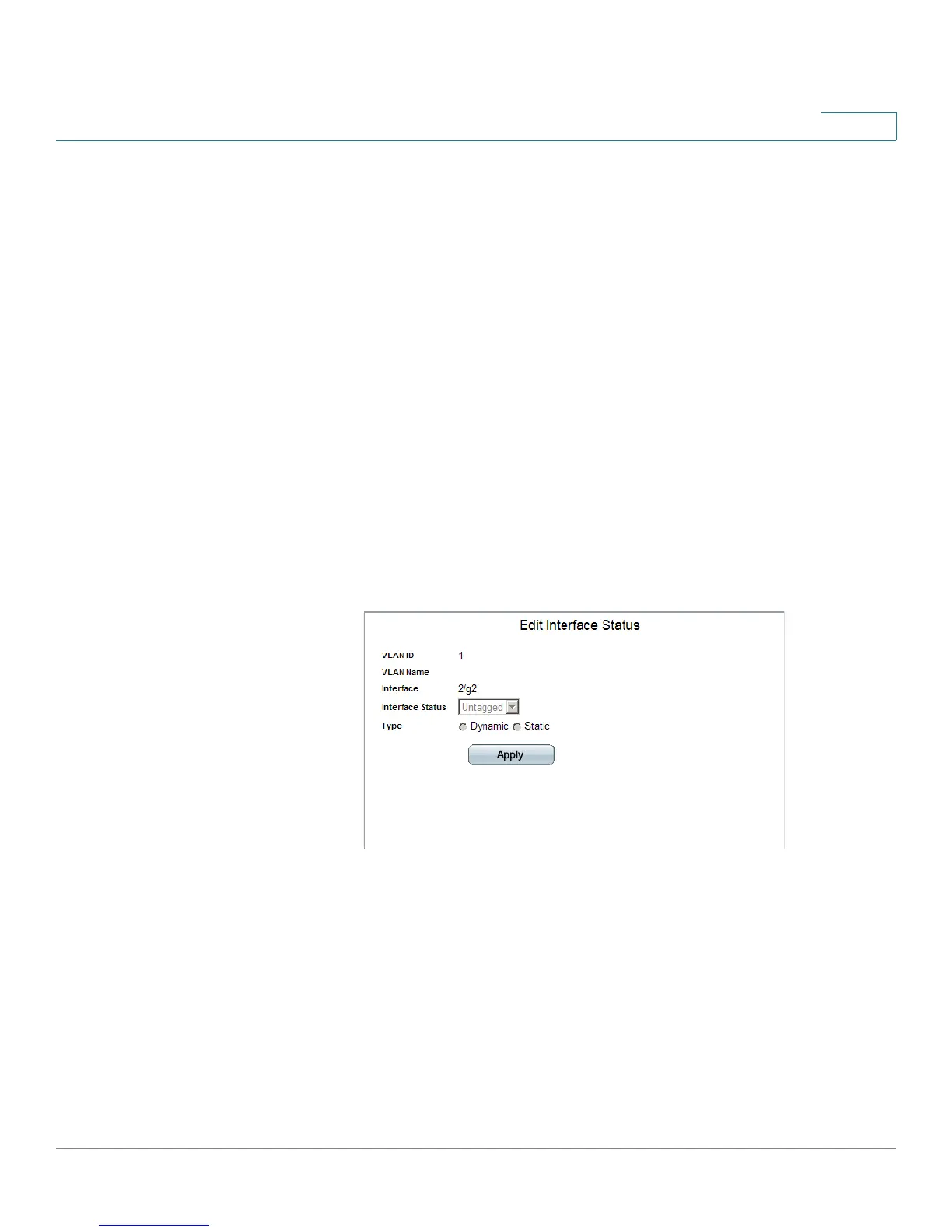

Edit Interface Status Page
The
Edit Interface Status Page
contains the following fields:
VLAN ID — Displays the VLAN ID.
VLAN Name — Displays the VLAN name.
Interface — Defines the port or LAG attached to the VLAN.
Interface Status — Defines the current interface’s membership status in the
VLAN. The possible field values are:
-
Untagged
— Indicates the interface is an untagged VLAN member.
Packets forwarded by the interface are untagged.
