Configuring Quality of Service
Defining QoS Basic Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 299
11
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The QoS Policy Binding is defined, and the device is updated.
Modifying QoS Policy Binding Settings
STEP 1 Click Quality of Service > Advanced Mode > Policy Binding. The Policy Binding
Page
opens:

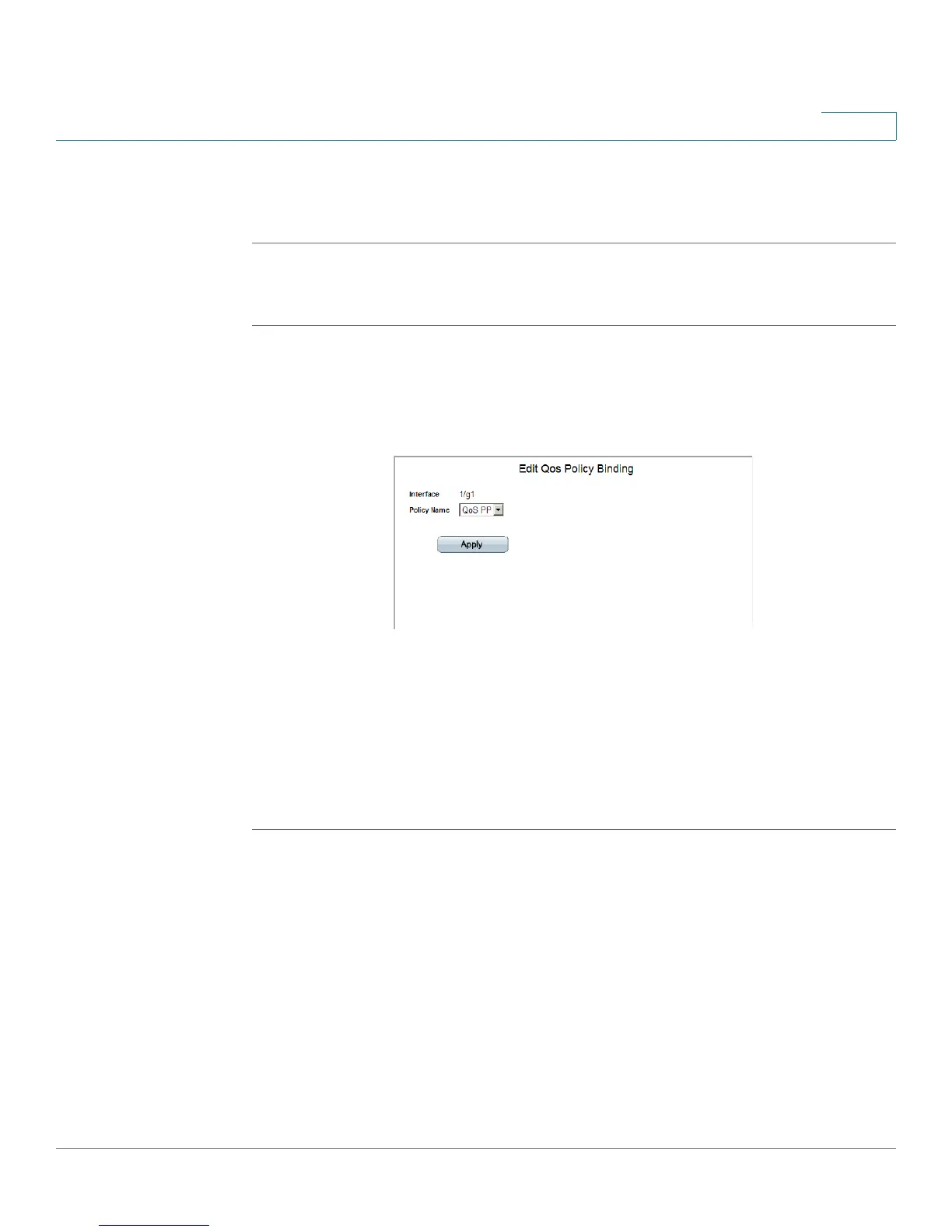

STEP 2 Click the Edit button. The Edit QoS Policy Binding Page opens:
Edit QoS Policy Binding Page
The
Edit QoS Policy Binding Page contains the following fields.
• Interface — Displays the interface to which the entry refers.
• Policy Name — Displays the Policy name associated with the interface.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The QoS policy binding is defined, and the device is updated.
Defining QoS Basic Mode
The Basic Mode Page contains information for enabling Trust on the device.
Packets entering a QoS domain are classified at the edge of the QoS domain.
To define the Trust configuration:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
