Configuring IP Information
IP Addressing
Cisco Small Business SFE/SGE Managed Switches Administration Guide 216
7

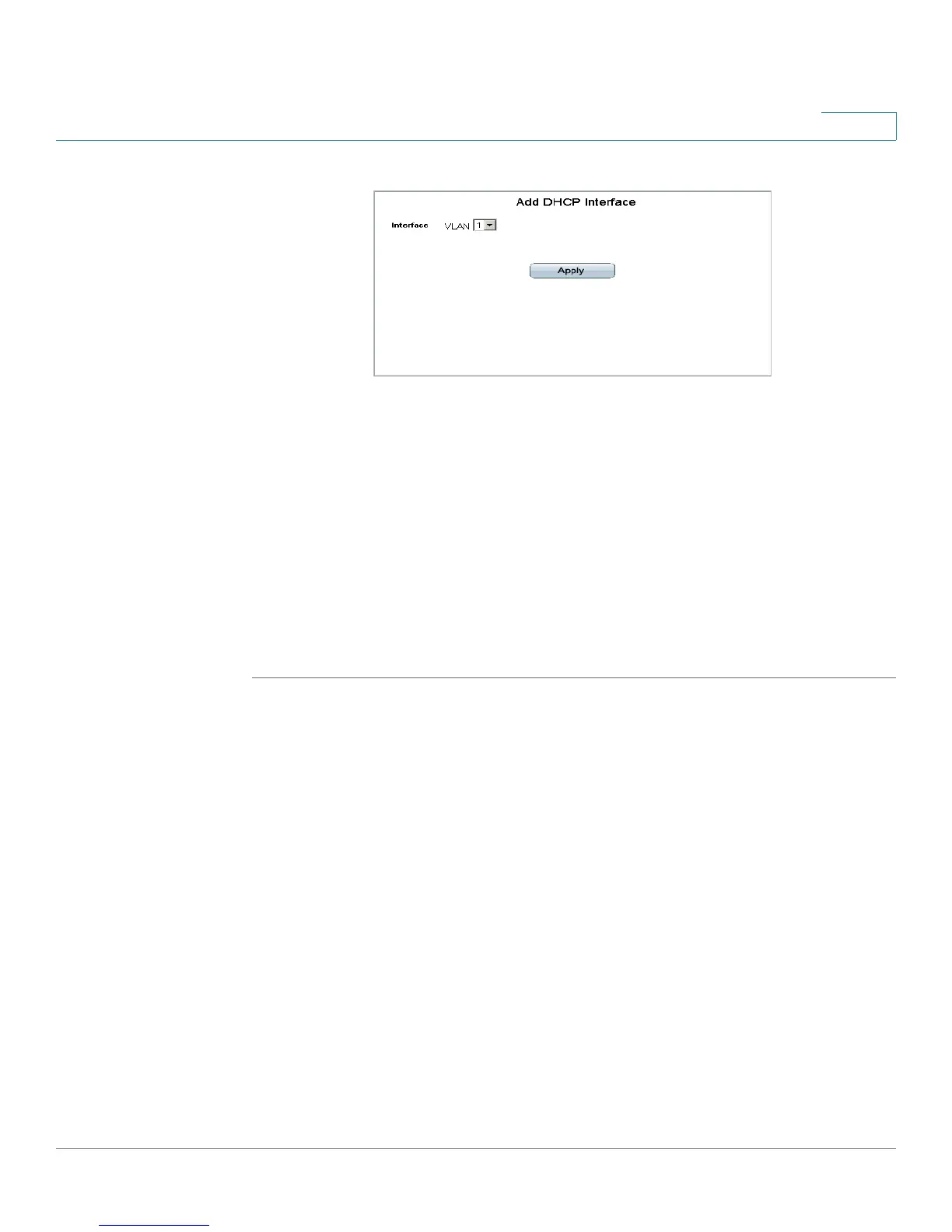

Add DHCP Interface Page
The
Add DHCP Interface Page contains the following field:
• Interface — Selects the interface to define DHCP Relay. The possible field
values are:
- Ports — Defines the DHCP Relay on the selected port.
- LAGs — Defines the DHCP Relay on the selected LAG.
- VLAN — Defines the DHCP Relay on the selected VLAN.
STEP 3 Select the Interface on which to define a DHCP Relay.
STEP 4 Click Apply. A DHCP Relay Interface is defined, and the device is updated.
Defining DHCP Relay (Layer 3)
The DHCP Server Page enables users to establish a DHCP configuration with
multiple DHCP servers to ensure redundancy. IP Addresses are controlled and
distributed one-by-one to avoid overloading the device.
The DHCP servers act as a DHCP relay if the parameter is not equal to 0.0.0.0.
DHCP requests are relayed only if their SEC field is greater or equal to the
threshold value. This allows local DHCP Servers to respond first.
To define the DHCP Relay (Layer 3) configuration:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
