Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring Quality of Service
Defining Advanced QoS Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 293
11
Configuring Policy Table
In the Policy Table Page, QoS policies are set up and assigned to interfaces.
To set up QoS policies:
STEP 1 Click Quality of Service > Advanced Mode > Policy Table. The Policy Table Page
opens:

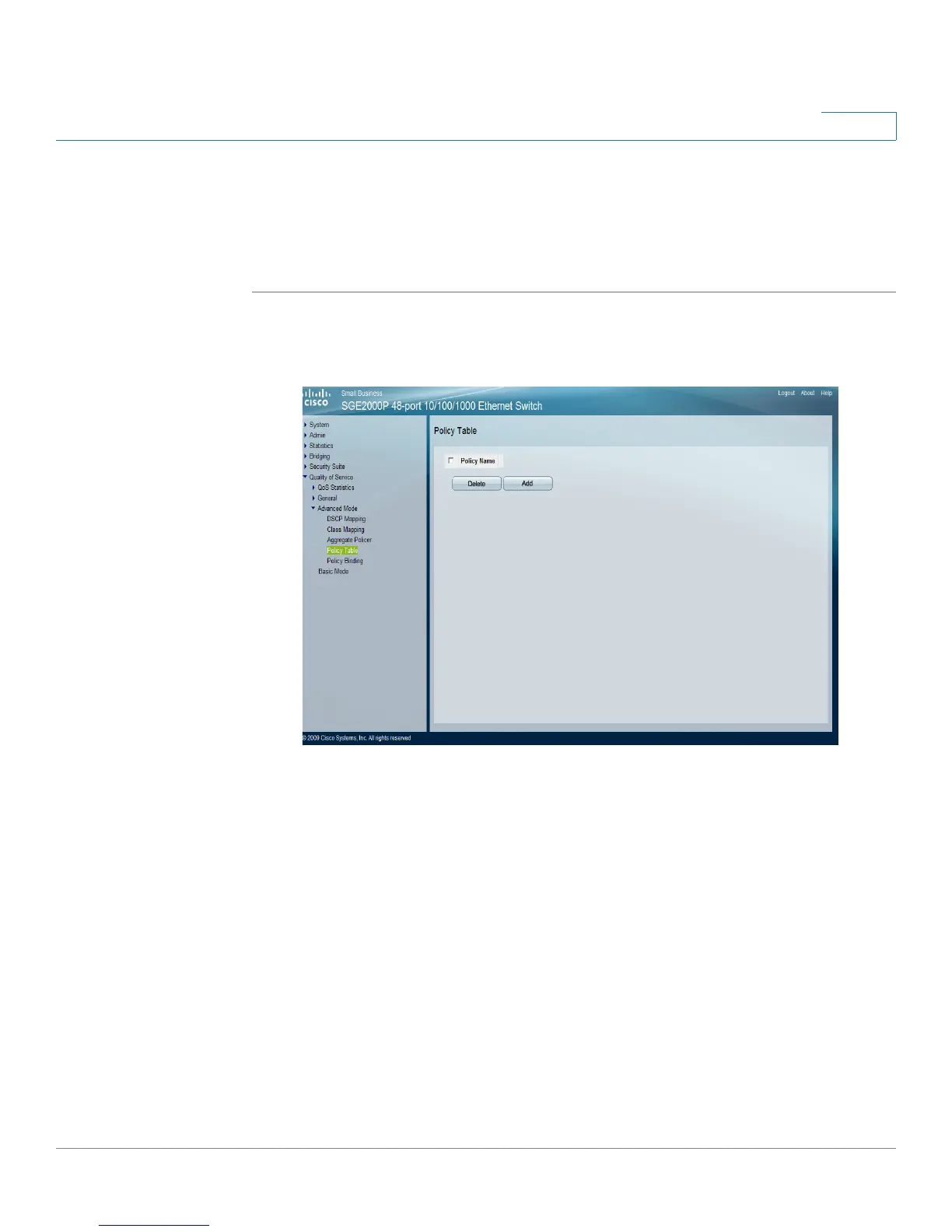

Policy Table Page
The
Policy Table Page contains the following field:
• Policy Name — Displays the user-defined policy name.
STEP 2 Click the Add button. The Add QoS Policy Profile Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
