Configuring Quality of Service
Defining Advanced QoS Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 294
11

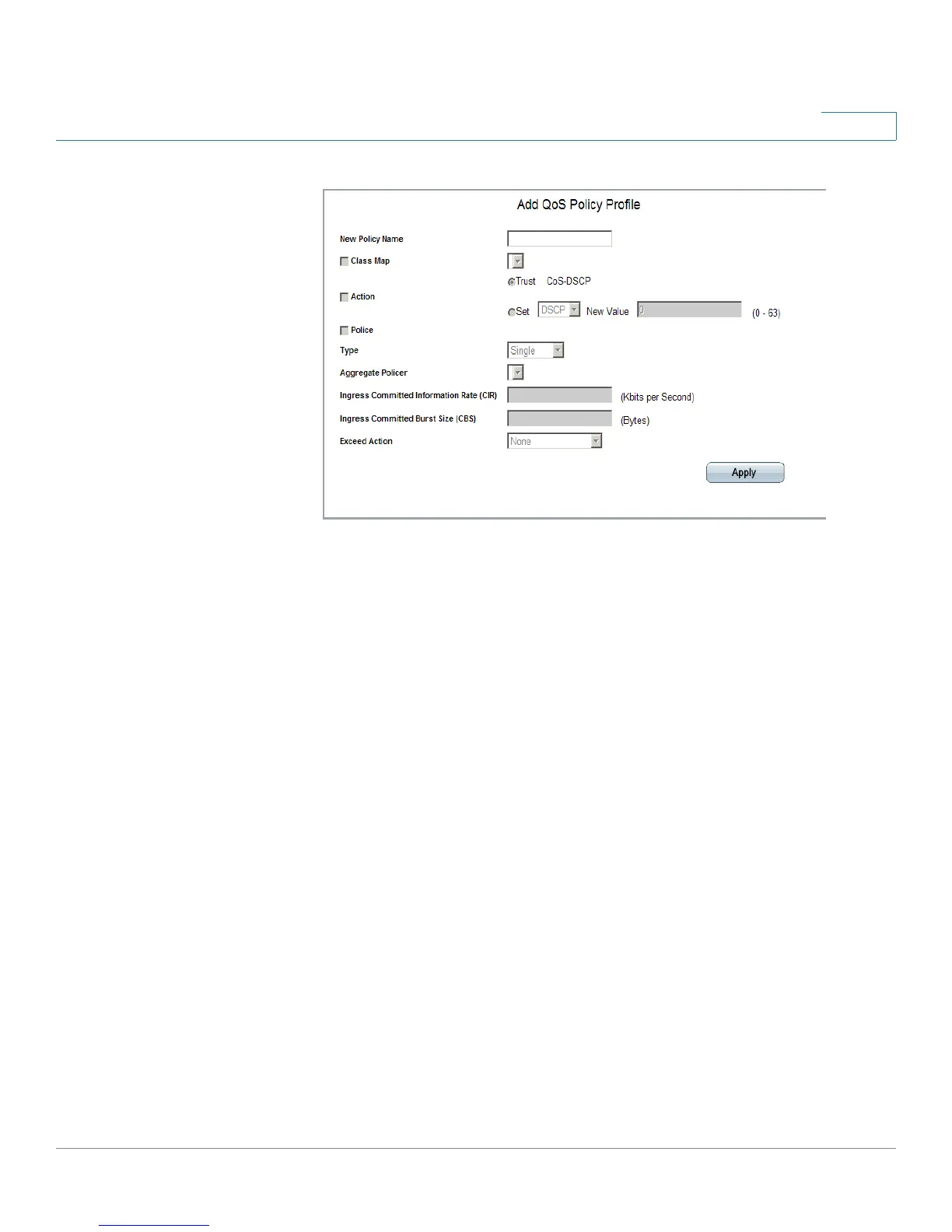

Add QoS Policy Profile Page
The
Add QoS Policy Profile Page contains the following fields.
• New Policy Name — Displays the user-defined policy name.
• Class Map — Selects the user-defined class maps which can be associated
with the policy.
• Action — Defines the action attached to the rule. The possible field value is:
• Set — Defines the Trust configuration manually. The possible field values
are:
- DSCP — In the New Value box, the possible values are 0-63.
- CoS — In the New Value box, the possible values are 0-7. This is
applicable only for the GE device.
- Queue — In the New Value box, the possible values are 1-4. This is
applicable only for the GE device.
- Trust CoS-DSCP — Determines the queue to which the packet is
assigned dependent on the CoS tag and DSCP tag. This is applicable
only for the GE device.
• Police — Enables Policer functionality.
• Type — Policer type for the policy. Possible values are:
- Aggregate — Configures the class to use a configured aggregate
policer selected from the drop-down menu. An aggregate policer is

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
