Defining Address Tables
Defining Dynamic Addresses
Cisco Small Business SFE/SGE Managed Switches Administration Guide 233
8
Defining Dynamic Addresses
The Dynamic Address Table contains the MAC addresses learned by monitoring
the source address for traffic entering the switch. When the destination address
for inbound traffic is found in the database, the packets intended for that address
are forwarded directly to the associated port. Otherwise, the traffic is flooded to
all ports.
The
Dynamic Page contains parameters for querying information in the Dynamic
MAC Address Table, including the interface type, MAC addresses, VLAN, and
table storing. The Dynamic MAC Address table contains information about the
aging time before a dynamic MAC address is erased, and includes parameters for
querying and viewing the Dynamic MAC Address table. The Dynamic MAC
Address table contains address parameters by which packets are directly
forwarded to the ports. The Dynamic Address Table can be sorted by interface,
VLAN, and MAC Address.
To define a dynamic address:

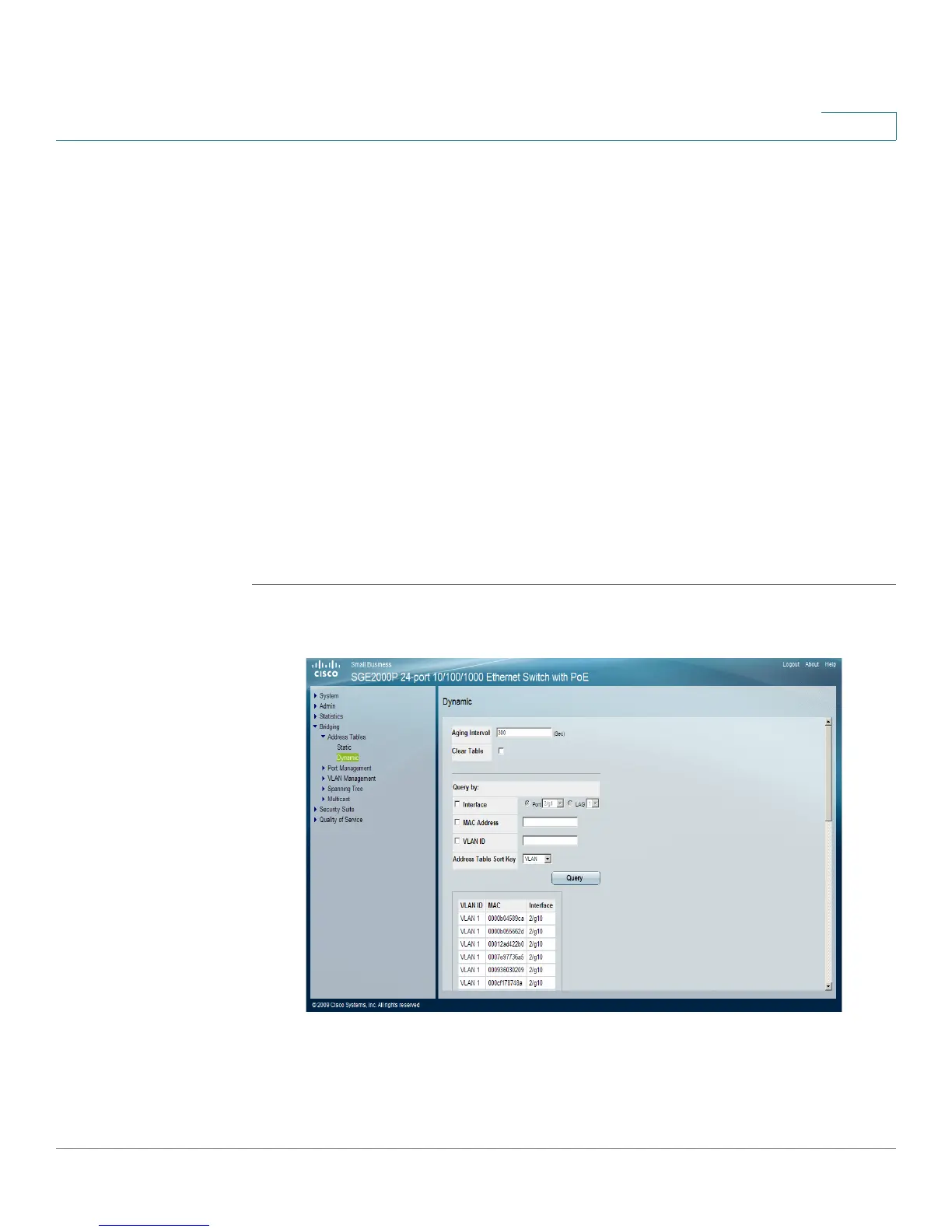

STEP 1 Click Bridging > Address Tables > Dynamic. The Dynamic Page opens:
Dynamic Page
The
Dynamic Page contains the following fields:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
