Defining Address Tables
Defining Static Addresses
Cisco Small Business SFE/SGE Managed Switches Administration Guide 232
8
STEP 2 Click the Add button. The Add Static MAC Address Page opens:

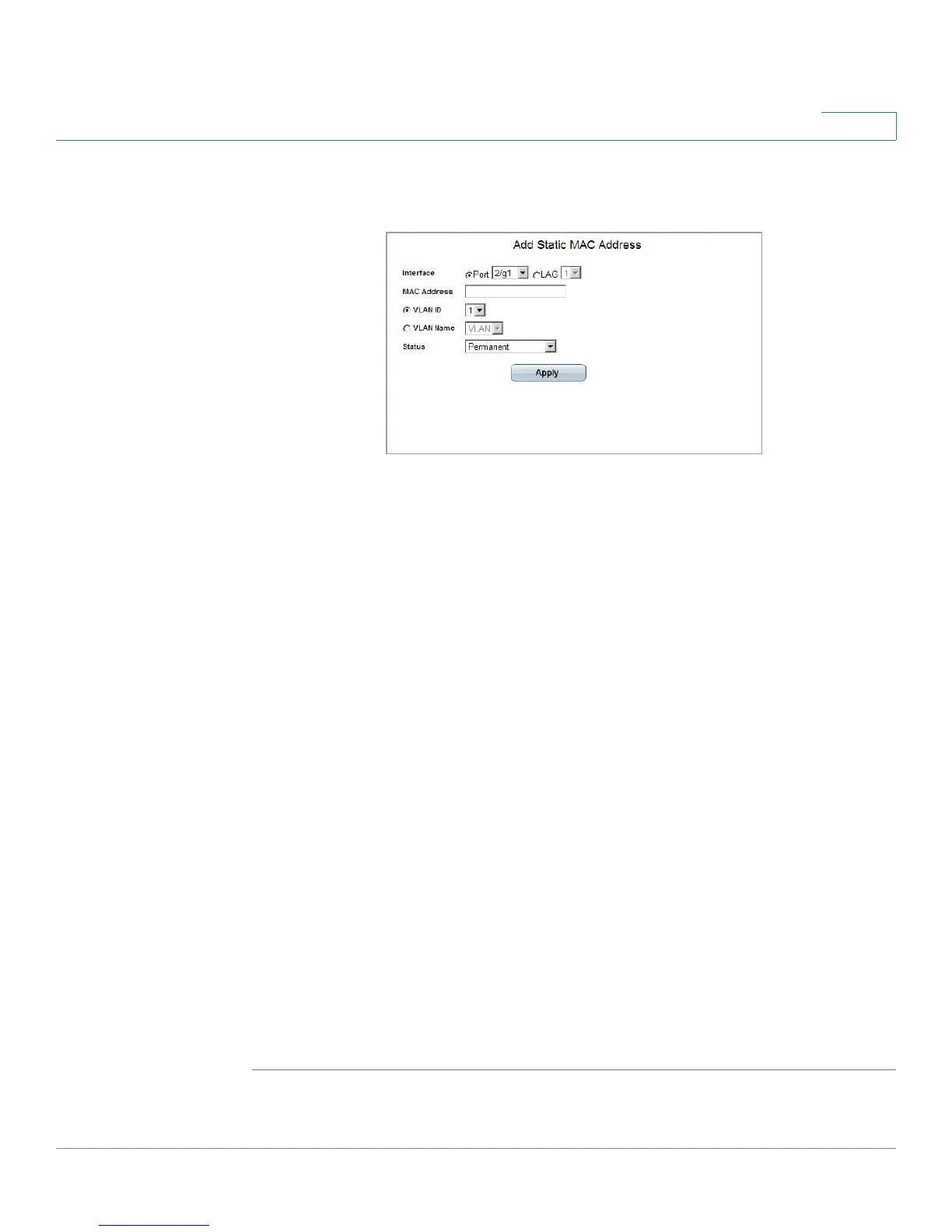

Add Static MAC Address Page
The
Add Static MAC Address Page contains the following fields:
• Interface — Displays the interface to which the entry refers:
- Ports — The specific port number to which the forwarding database
parameters refer.
- LAGs — The specific LAG number to which the forwarding database
parameters refer.
• MAC Address — Displays the MAC address to which the entry refers.
• VLAN ID — Displays the VLAN ID number to which the entry refers.
• VLAN Name — Displays the VLAN name to which the entry refers.
• Status — Displays how the entry was created. The possible field values are:
- Permanent — The MAC address is permanent.
- Delete on Reset — The MAC address is deleted when the device is
reset.
- Delete on Timeout — The MAC address is deleted when a timeout
occurs.
- Secure — The MAC Address is defined for locked ports.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The device is updated.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
