Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring SNMP
Configuring SNMP Security
Cisco Small Business SFE/SGE Managed Switches Administration Guide 307
12
Defining SNMP Users
The SNMP Users Page provides information for creating SNMP users, and
assigning SNMP access control privileges to SNMP users. Groups allow network
managers to assign access rights to specific device features, or feature aspects.

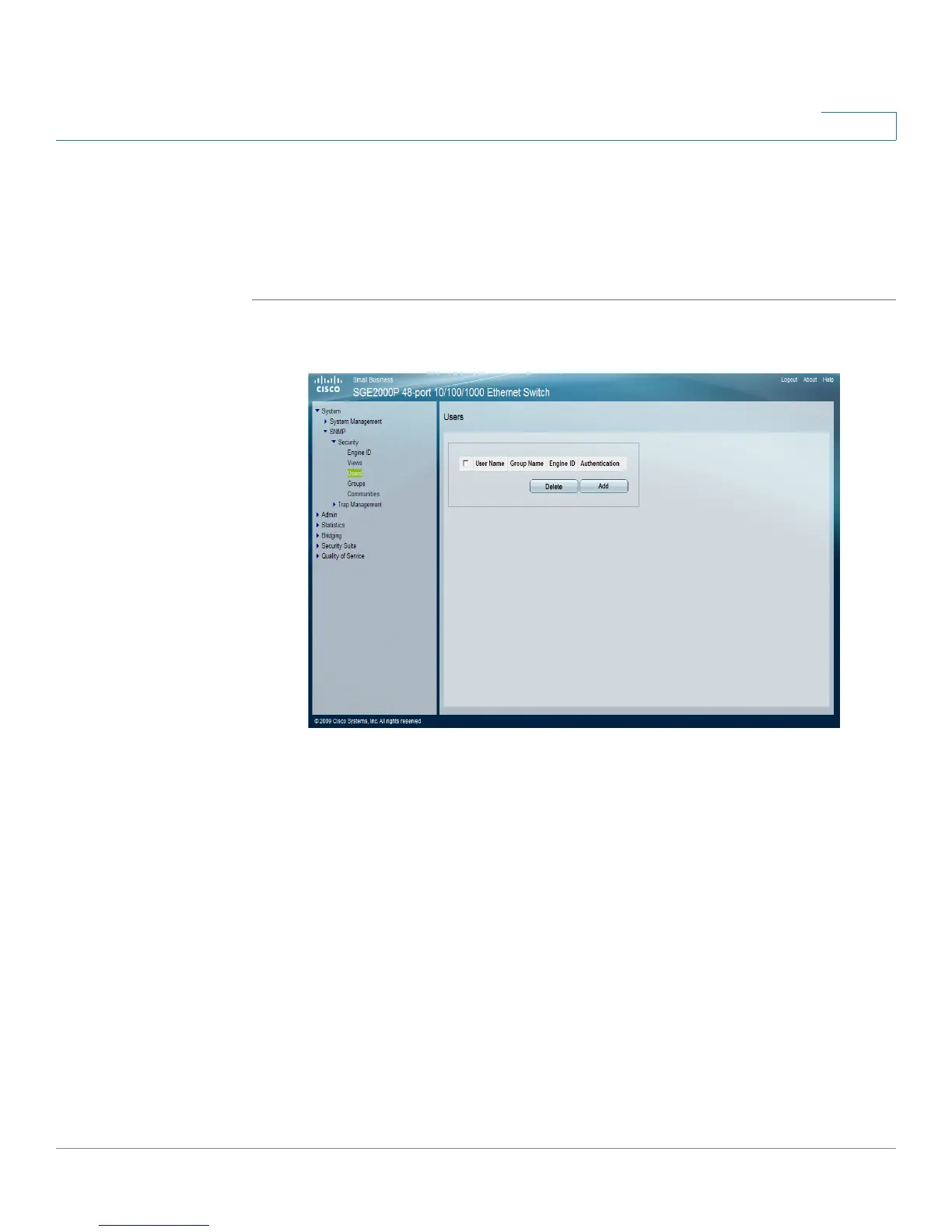

STEP 1 Click System > SNMP > Security > Users. The SNMP Users Page opens:
SNMP Users Page
The
SNMP Users Page contains the following fields.
• User Name — Displays the user-defined user name to which access control
rules are applied. The field range is up to 30 characters.
• Group Name — User-defined SNMP group to which the SNMP user belongs.
SNMP groups are defined in the
SNMP Group Profile Page .
• Engine ID — Indicates the local/remote device engine ID.
• Authentication — Indicates the Authentication method used.
STEP 2 Click the Add button. The Add SNMP Group Membership Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
