Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring SNMP
Configuring SNMP Security
Cisco Small Business SFE/SGE Managed Switches Administration Guide 306
12
• Object ID Subtree — Indicates the device feature OID that is included or
excluded in the selected SNMP view.
• View Type — Indicates if the defined OID branch that are included or excluded
in the selected SNMP view.
STEP 2 Click the Add button. The Add SNMP View Page opens:

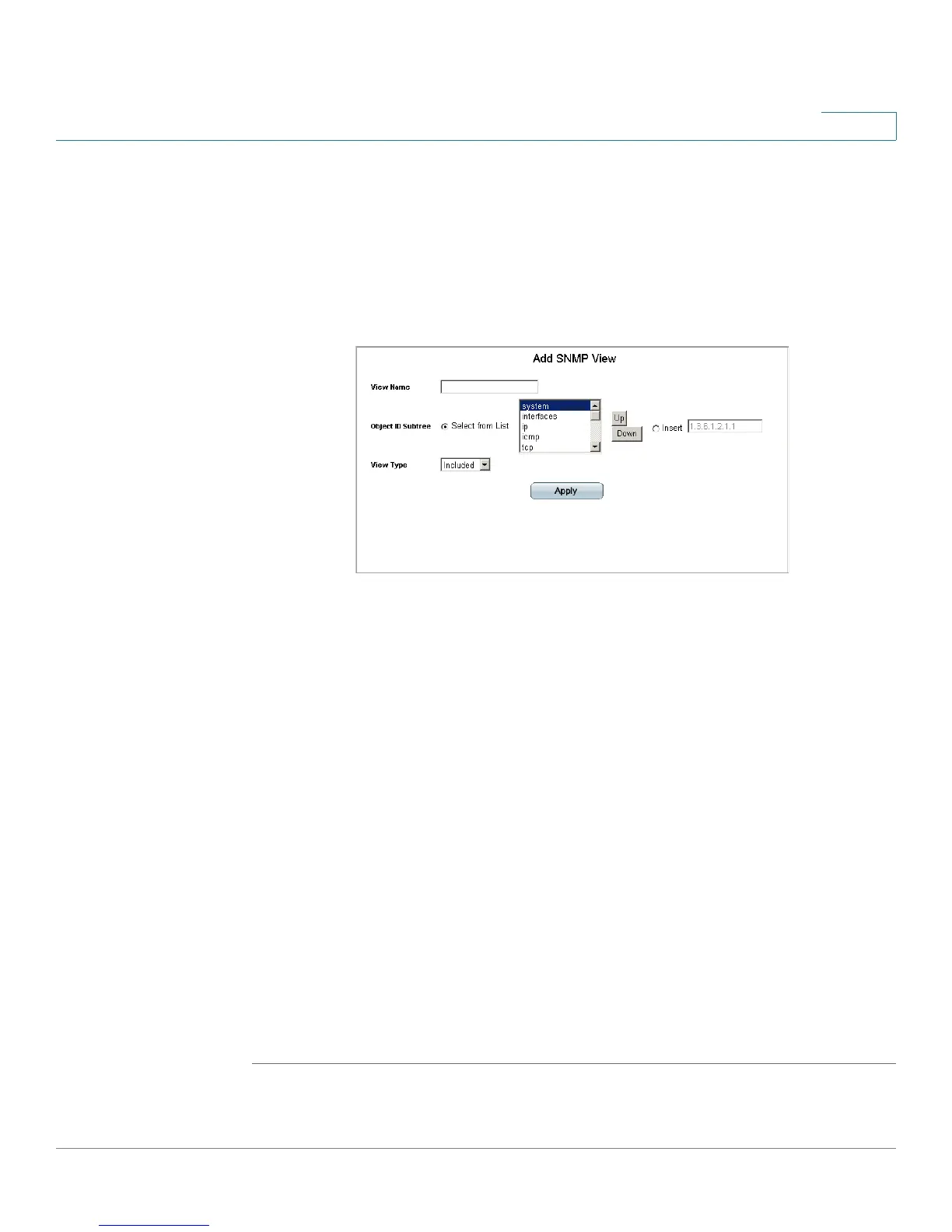

Add SNMP View Page
The
Add SNMP View Page contains parameters for defining and configuring new
SNMP view. The
Add SNMP View Page contains the following fields:
• View Name — Defines the user-defined view name.
• Object ID Subtree — Indicates the device feature OID included or excluded in
the selected SNMP view. The options to select the Object are as follows:
- Select from List — Select the Subtree from the list provided. Pressing
the
Up and Down buttons allows you to change the priority by moving
the selected subtree up or down in the list.
- Insert — Enables a Subtree not included to be entered.
• View Type — Indicates if the defined OID branch will be included or excluded
in the selected SNMP view. The options to select the Subtree are as follows:
- Included — Includes the defined OID branch.
- Excluded — Excludes the defined OID branch.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The SNMP views are defined, and the device is updated.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
