Configuring Device Security
Defining 802.1X
Cisco Small Business SFE/SGE Managed Switches Administration Guide 81
4
• Authentication Server — Specifies the external server, for example, the
RADIUS server that performs the authentication on behalf of the authenticator,
and indicates whether the supplicant is authorized to access system services.
The 802.1X section contains the following topics:
• Defining 802.1X Properties
• Defining Port Authentication
• Defining Authentication
• Defining Authenticated Hosts
Defining 802.1X Properties
The 802.1X Properties Page provides parameters for enabling port authentication,
and selecting the authentication method. To define port based authentication:
STEP 1 Click Security Suite > 802.1X > Properties. The 802.1X Properties Page opens:

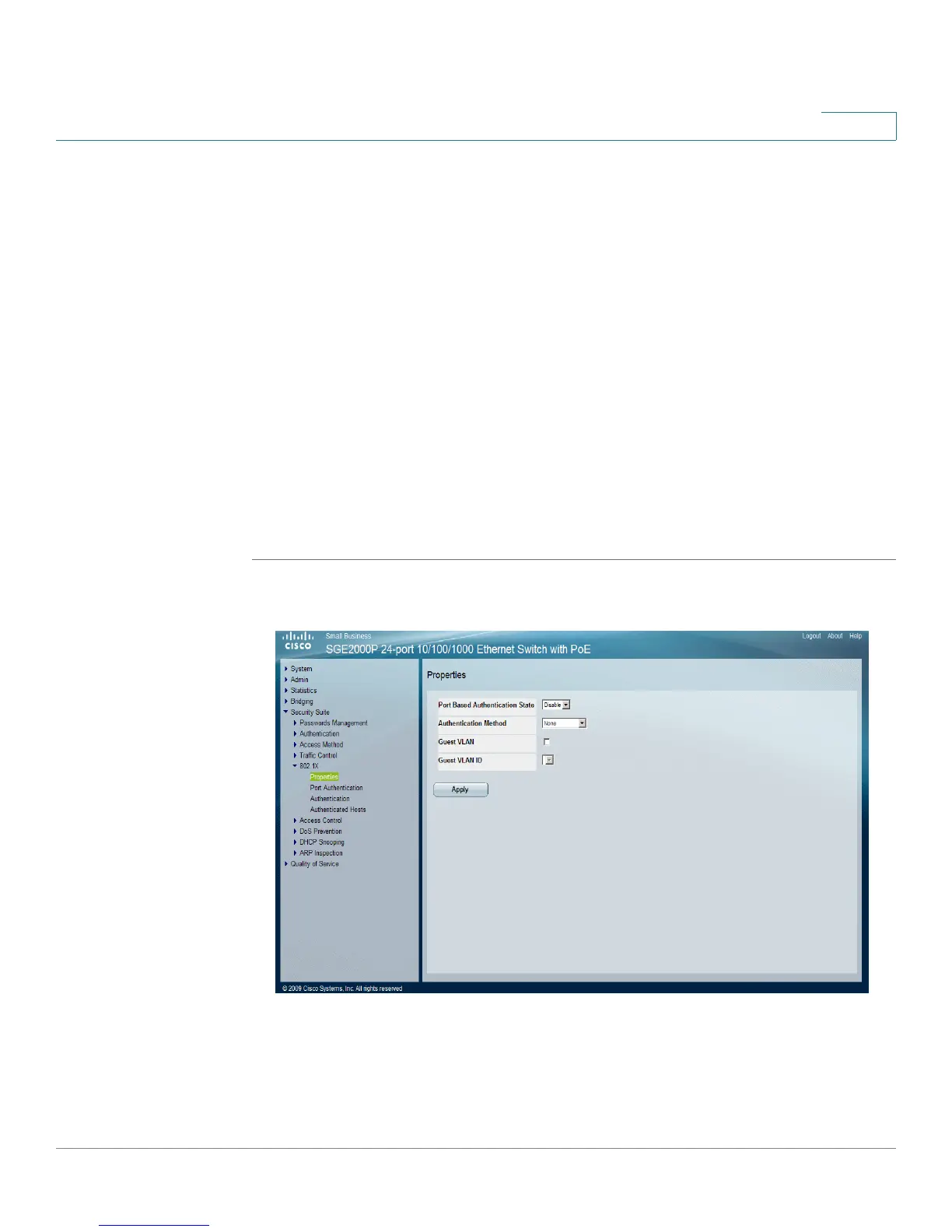

802.1X Properties Page
The
802.1X Properties Page contains the following fields:
• Port Based Authentication State — Enables Port-based Authentication on the
device. The possible field values are:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
