Configuring Quality of Service
Defining General Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 276
11
Modifying Interface Priorities
STEP 2 Click the Edit button. The Edit Interface Priority Page opens:

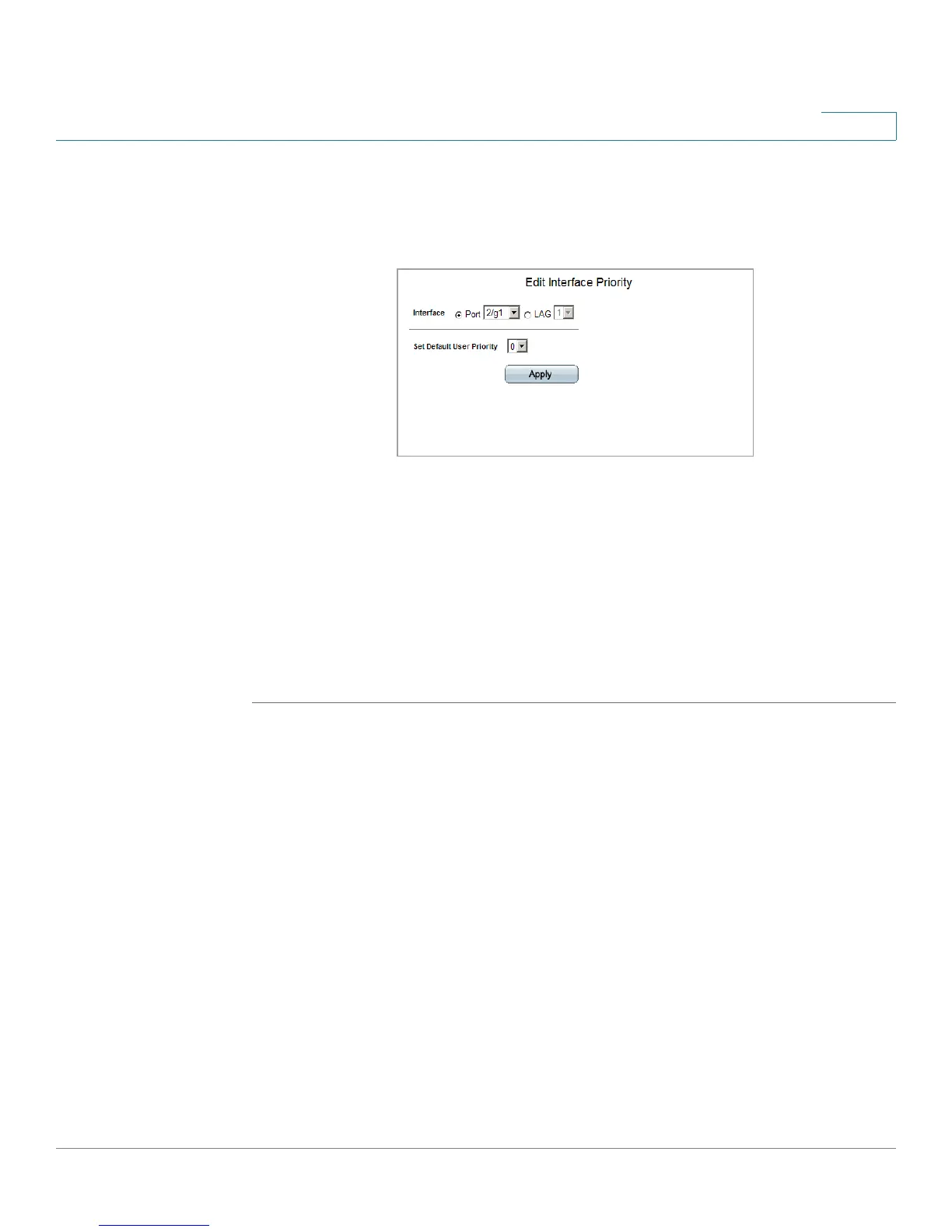

Edit Interface Priority Page
The
Edit Interface Priority Page contains the following fields:
• Interface — Indicates whether the interface is a port or LAG.
• Set Default User Priority— Defines the default CoS value for incoming packets
for which a VLAN tag is not defined. The possible field values are 0-7. The
default CoS is 0.
STEP 3 Modify the Interface priority.
STEP 4 Click Apply. The Interface priority is set, and the device is updated.
Defining QoS Queue
The Queue Page contains fields for defining the QoS queue forwarding types.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
