Configuring Quality of Service
Defining General Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 277
11
STEP 1 Click Quality of Service > General > Queue. The
Queue Page
opens:

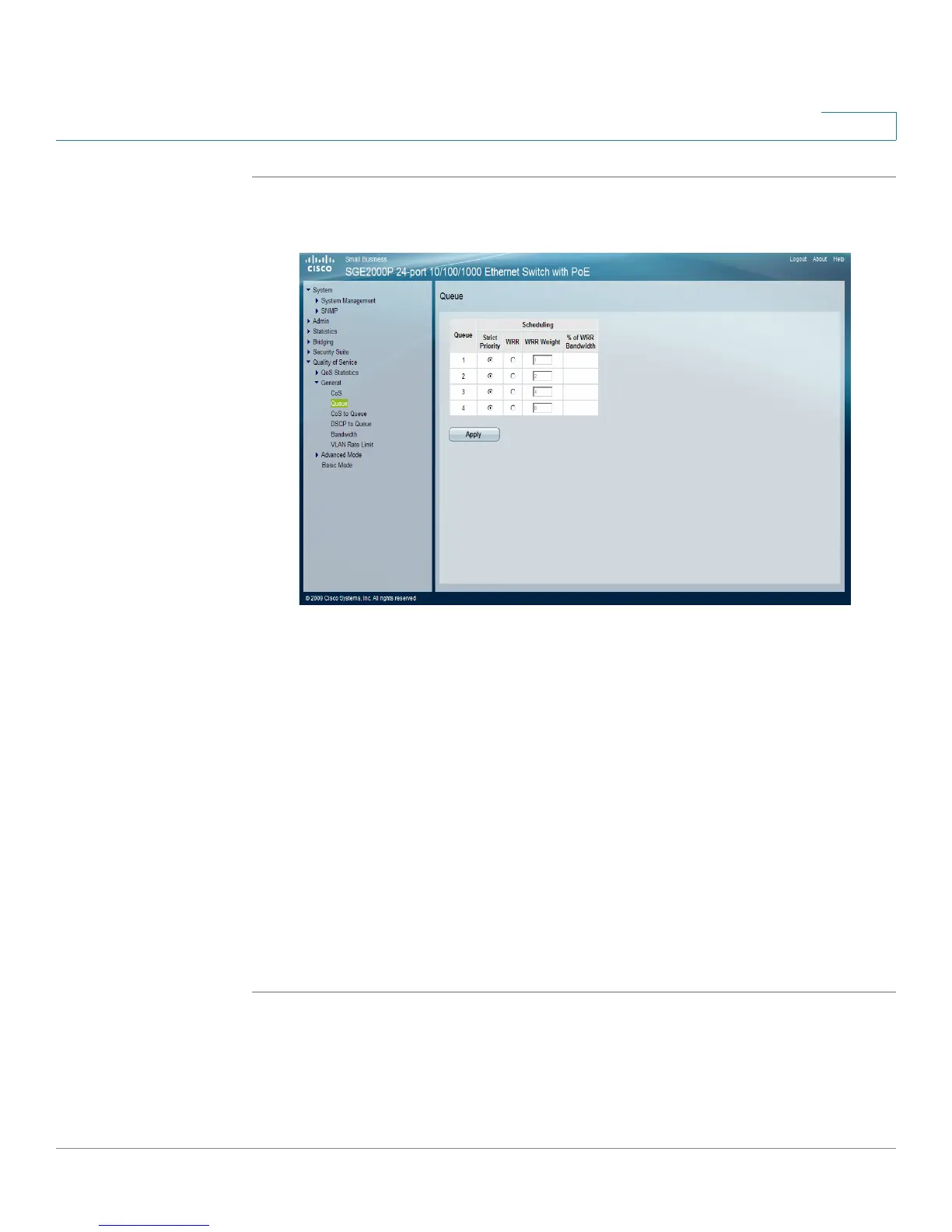

Queue Page
The
Queue Page
contains the following fields:
• Queue — Displays the queue for which the queue settings are displayed. The
possible field range is 1 - 4.
• WRR Weight — Displays the WRR weight assigned to the queue by the user.
• % of WRR Bandwidth — Indicates the amount of bandwidth assigned to the
queue. These values represent the % of the WRR Weight configured by the
user.
• % of WRR Bandwidth — Indicates the amount of bandwidth assigned to the
queue. These values represent the % of the WRR Weight configured by the
user.
STEP 2 Define the queues.
STEP 3 Click Apply. The queues are defined, and the device is updated.
