Configuring VLANs
Defining CPE VLAN Mapping
Cisco Small Business SFE/SGE Managed Switches Administration Guide 183
6
Defining CPE VLAN Mapping
Network managers can map CPE VLANs to Multicast TV VLANs in the CPE VLAN
Mapping Page
. Once the CPE VLAN is mapped to the Multicast VLAN, the VLAN
can participate in IGMP snooping.
To m a p C P E V L A N s :
STEP 1 Click Bridging > VLAN Management > CPE VLAN Mapping. The CPE VLAN
Mapping Page
opens:

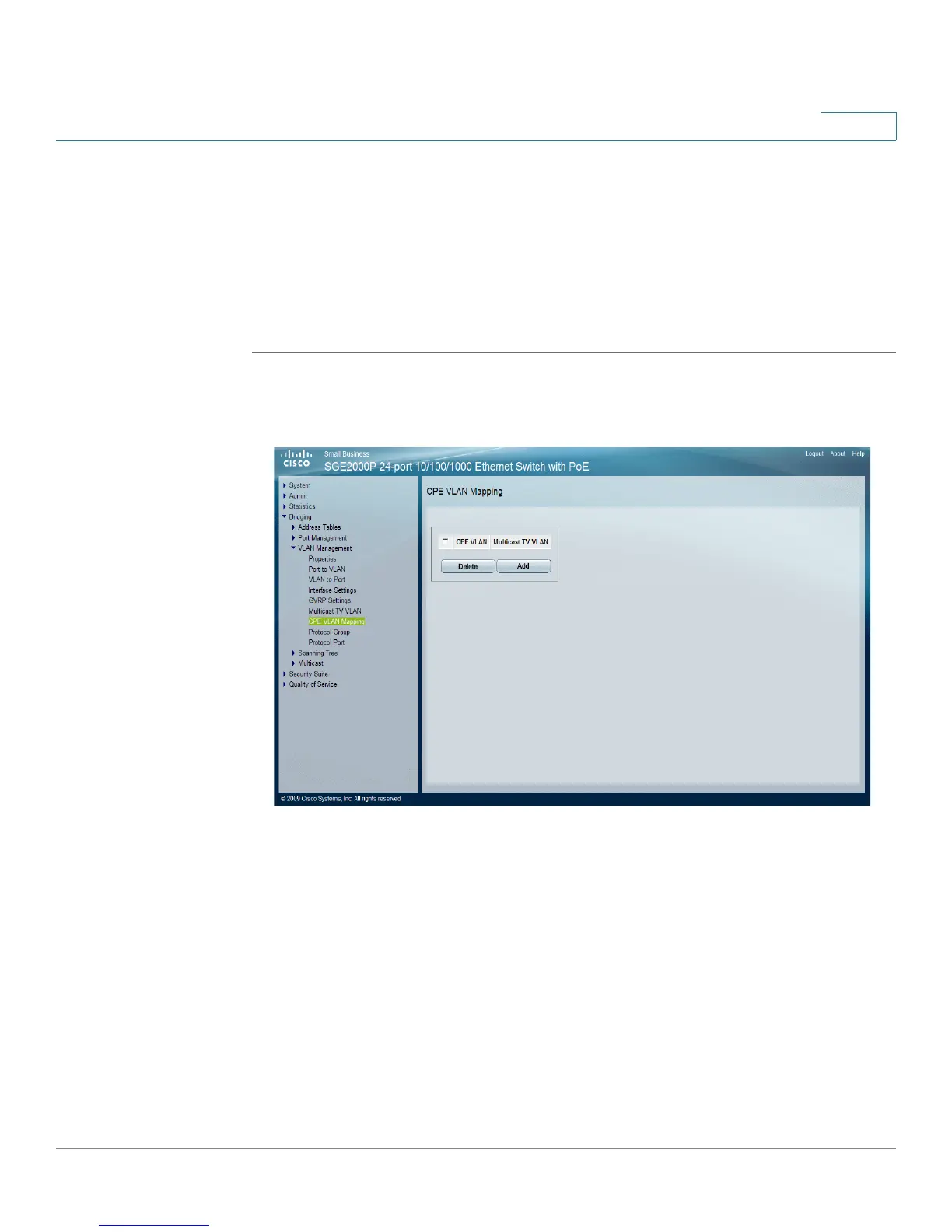

CPE VLAN Mapping Page
The
CPE VLAN Mapping Page contains the following fields:
• CPE VLAN — Indicates the CPE VLAN which is mapped to the Multicast TV
VLAN.
• Multicast TV VLAN — Indicates the Multicast TV VLAN which is mapped to the
CPE VLAN.
STEP 2 Click Add. The Add CPE VLAN Mapping Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
