Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring VLANs
Defining Multicast TV VLAN
Cisco Small Business SFE/SGE Managed Switches Administration Guide 182
6
STEP 1 Click Bridging > VLAN Management > Multicast TV VLAN. The Multicast TV VLAN
Page
opens:

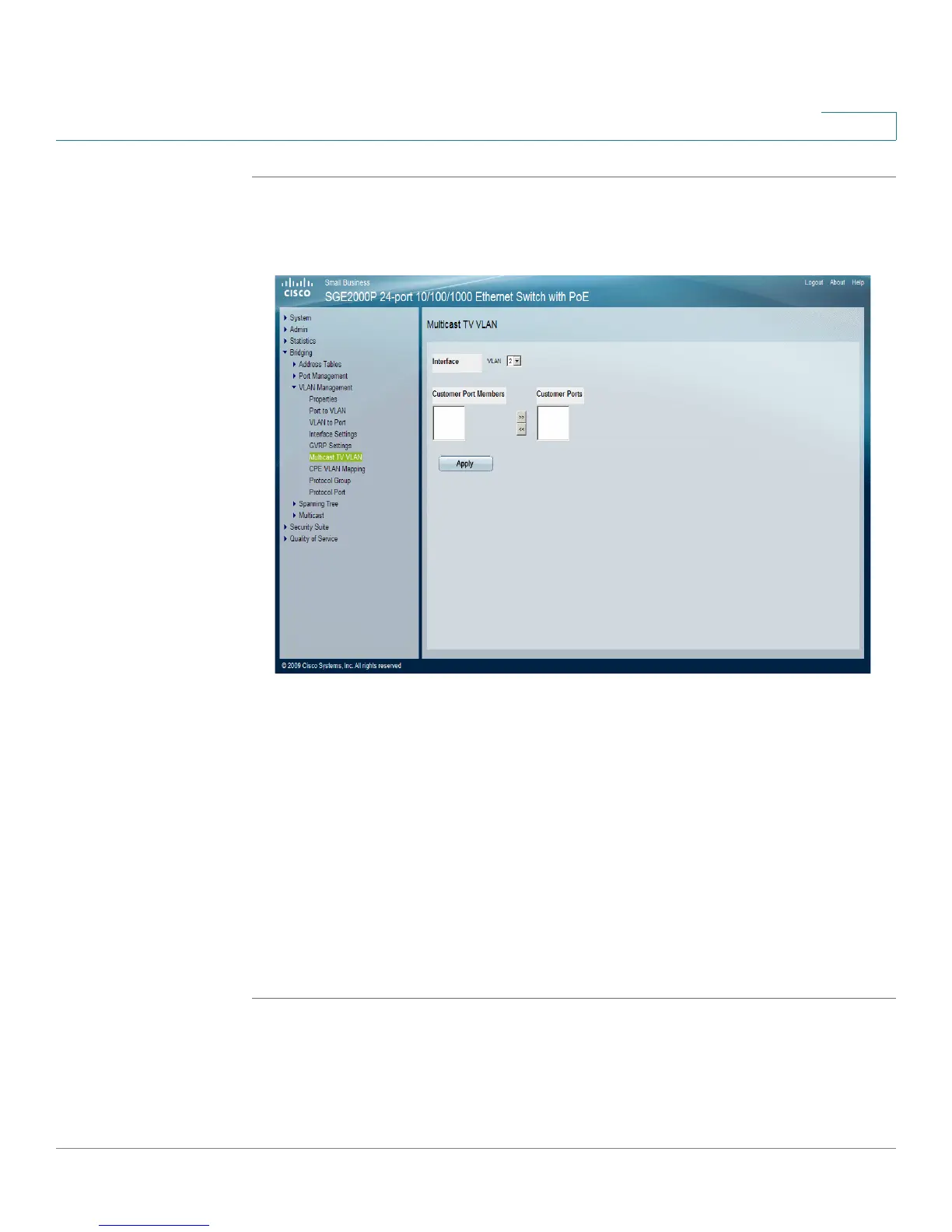

Multicast TV VLAN Page
The
Multicast TV VLAN Page contains the following fields:
• Interface — Defines the VLAN to which the ports are assigned.
• Customer Port Members — Defines the ports already assigned to the Multicast
TV VLAN.
• Customer Ports — Lists the ports available for assigning to the Multicast TV
VLAN.
STEP 2 Define the ports which are members of the Multicast TV VLAN. Select ports from
the Customer Ports list and click the left arrow button to move the ports to the
Customer Ports Member list.
STEP 3 Click Apply. Multicast TV VLAN settings are modified, and the device is updated.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
