Managing Device Diagnostics
Configuring Port Mirroring
Cisco Small Business SFE/SGE Managed Switches Administration Guide 347
15
STEP 3 Define the relevant fields.
STEP 4 Click Apply. Port mirroring is added, and the device is updated.
Modifying Port Mirroring
STEP 1 Click Admin > Diagnostics > Port Mirroring. The Port Mirroring Page opens:
STEP 2 Click the Edit Button. The Edit Port Mirroring Page opens:

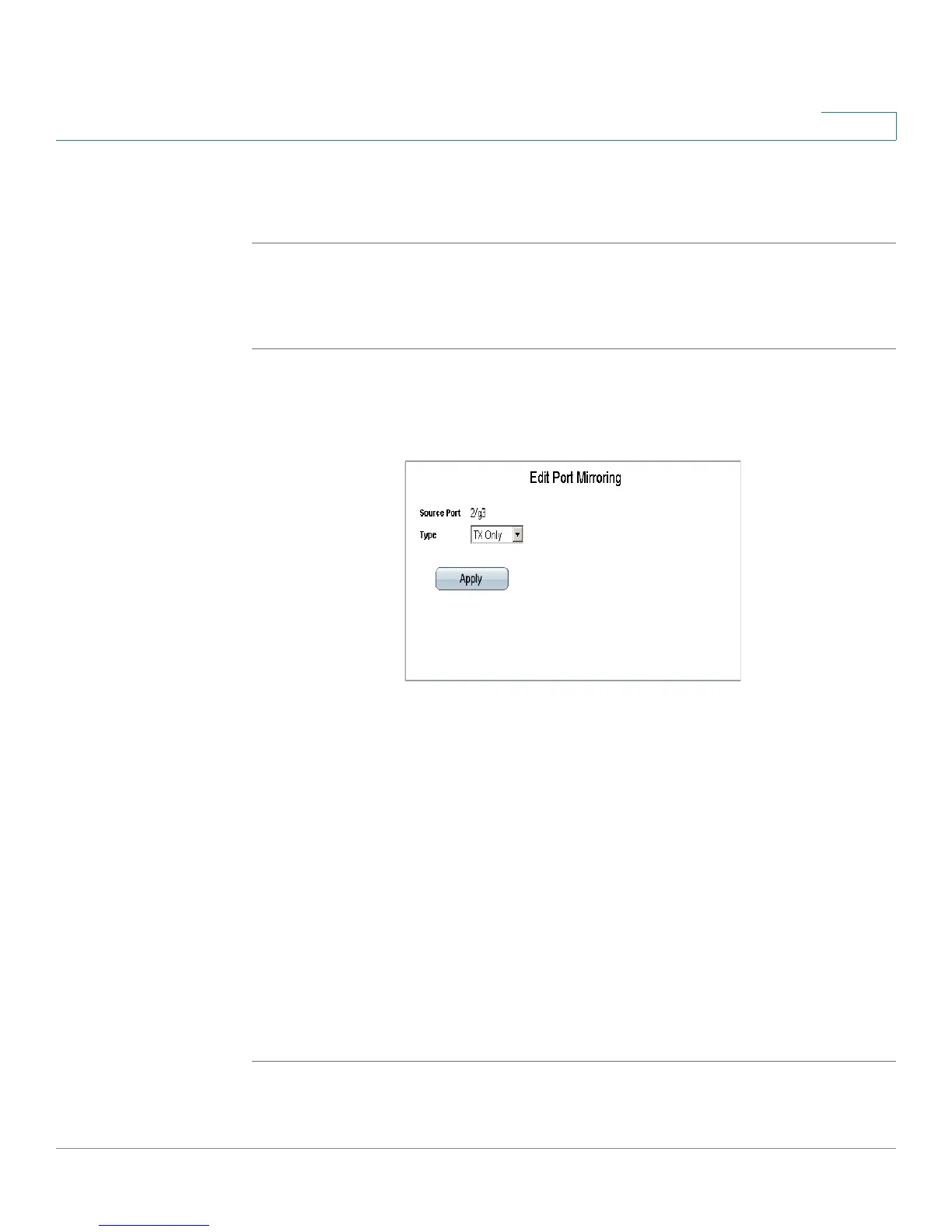

Edit Port Mirroring Page
The
Edit Port Mirroring Page contains the following fields:
• Source Port — Indicates the port from which traffic is to be analyzed.
• Type — Defines the port mode configuration for port mirroring. The possible
field values are:
- RxOnly — Defines the port mirroring on receiving ports. This is the
default value.
- Tx On l y — Defines the port mirroring on transmitting ports.
- Tx a n d R x — Defines the port mirroring on both receiving and
transmitting ports.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The Port mirroring is modified, and the device is updated.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
