Managing Device Diagnostics
Configuring Port Mirroring
Cisco Small Business SFE/SGE Managed Switches Administration Guide 345
15
• Loss of Signal — Indicates if a signal loss occurred in the cable.
• Data Ready — Indicates the data status.
Configuring Port Mirroring
Port Mirroring monitors and mirrors network traffic by forwarding copies of
incoming and outgoing packets from one port to a monitoring port. Port mirroring
can be used as diagnostic tool and/or a debugging feature. Port mirroring also
enables switch performance monitoring.
Network administrators configure port mirroring by selecting a specific port to
copy all packets, and different ports from which the packets are copied.
To enable port mirroring:
STEP 1 Click Admin > Diagnostics > Port Mirroring. The Port Mirroring Page opens:

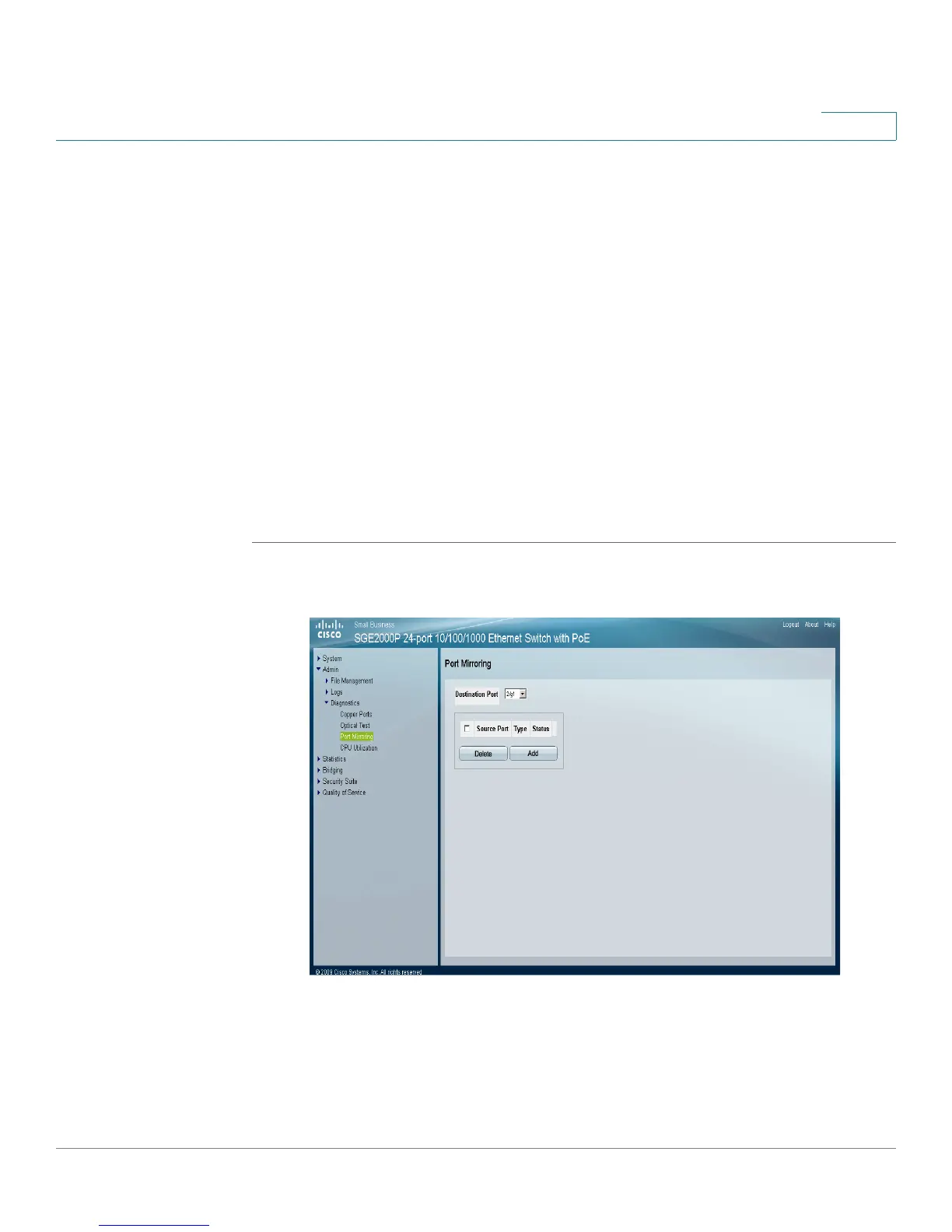

Port Mirroring Page
The
Port Mirroring Page contains the following fields:
• Destination Port — Defines the port to which the source port’s traffic is
mirrored.
• Source Port — Defines the port from which traffic is to be analyzed.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
