Configuring Quality of Service
Defining General Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 275
11

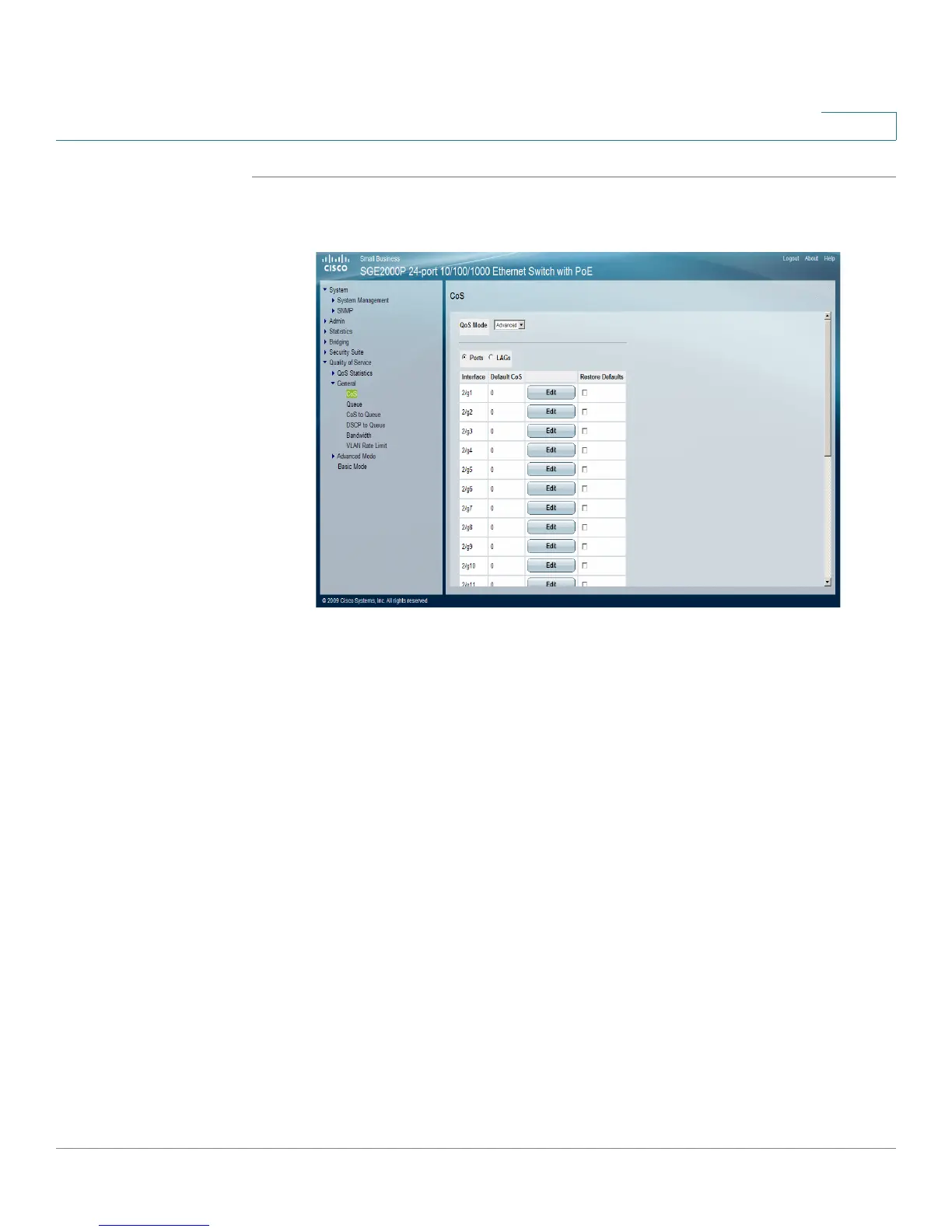

STEP 1 Click Quality of Service > General > CoS. The CoS Page opens:
CoS Page
The
CoS Page contains the following fields:
• QoS Mode — Indicates if QoS is enabled on the device. The possible values
are:
- Advanced — Enables Advanced mode QoS on the device.
• Ports — Indicates that the CoS configuration of the ports on the specified
stacking member are described in the page.
• LAGs — Indicates that the CoS configuration of the LAGs are described in the
page.
• Interface — Indicates the interface for which the CoS information is displayed.
• Default CoS — Displays the default CoS value for incoming packets for which a
VLAN tag is not defined. The possible field values are 0-7. The default CoS is 0.
• Restore Defaults— Restores the factory CoS default settings to the selected
port.
- Checked — Restores the factory QoS default settings to ports after
clicking the Apply button.
- Unchecked — Maintains the current QoS settings.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
