Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring VLANs
Defining VLAN Properties
Cisco Small Business SFE/SGE Managed Switches Administration Guide 165
6
• Type — Displays the VLAN type. The possible field values are:
- Dynamic — Indicates the VLAN was dynamically created through GVRP.
- Static — Indicates the VLAN is user-defined.
- Default — Indicates the VLAN is the default VLAN.
• Authentication — Indicates whether unauthorized users can access a VLAN.
The possible field values are:
- Enabled — Disables unauthorized users to use the VLAN.
- Disabled — Enables unauthorized users from using the VLAN.
STEP 2 Click the Add button. The Add VLAN Range Page opens:

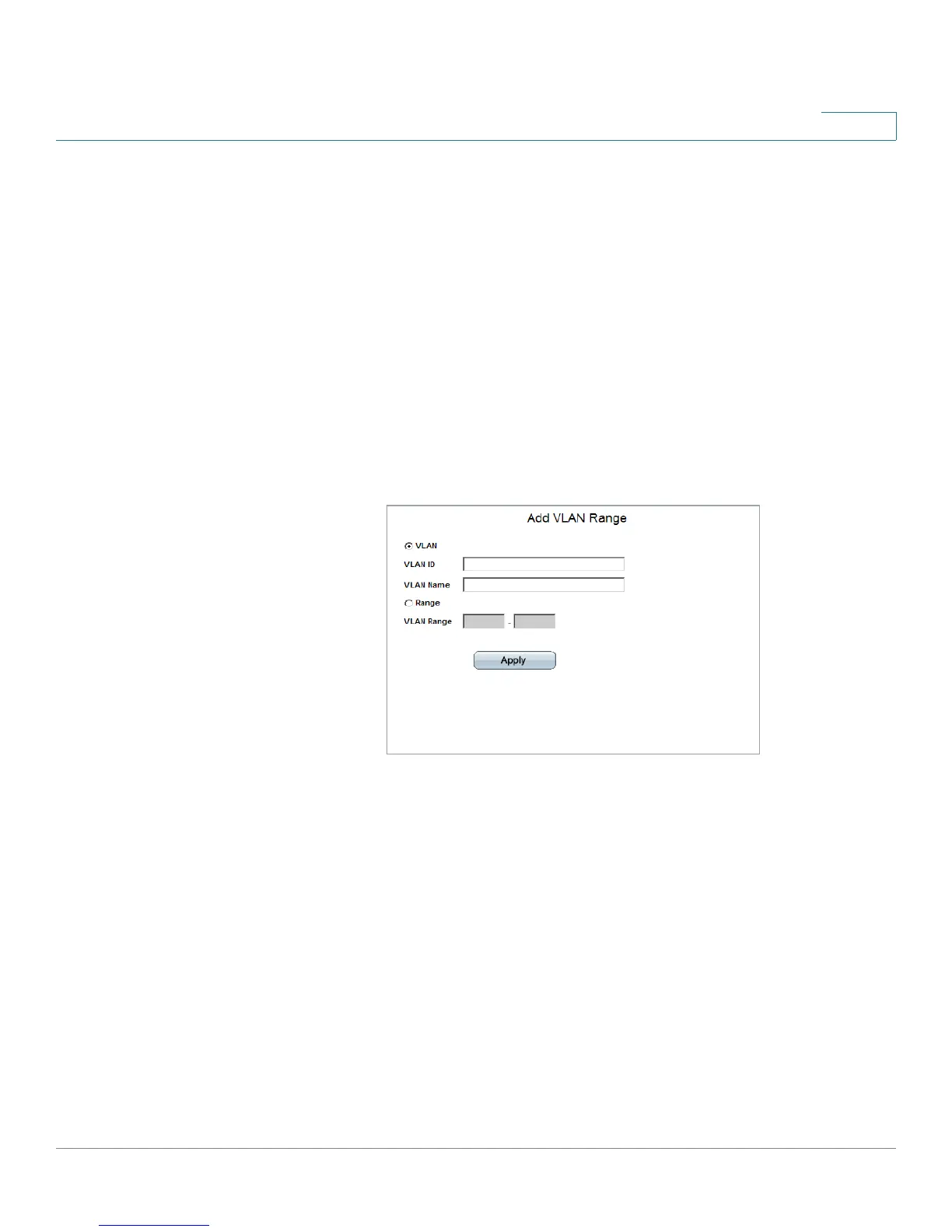

Add VLAN Range Page
The
Add VLAN Range Page allows network administrators to define and configure
new VLANs, and contains the following fields:
• VLAN — Specifies that a specific VLAN is to be defined. The possible field
values are:
- VLAN ID — Defines the VLAN ID.
- VLAN Name — Defines a VLAN name.
• Range — Specifies that a range of VLAN IDs is to be defined. The possible
field values are:
- VLAN Range — Defines the lower and upper bounds of the VLAN range.
STEP 3 Define the relevant fields.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
