Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Aggregating Ports
Defining LAG Management
Cisco Small Business SFE/SGE Managed Switches Administration Guide 395
18
STEP 2 Define the relevant fields.
STEP 3 Click Apply. LAG Management is defined, and the device is updated.
Modifying LAG Membership
STEP 1 Click Bridging > Port Management > LAG Management. The LAG Management
Page
opens:

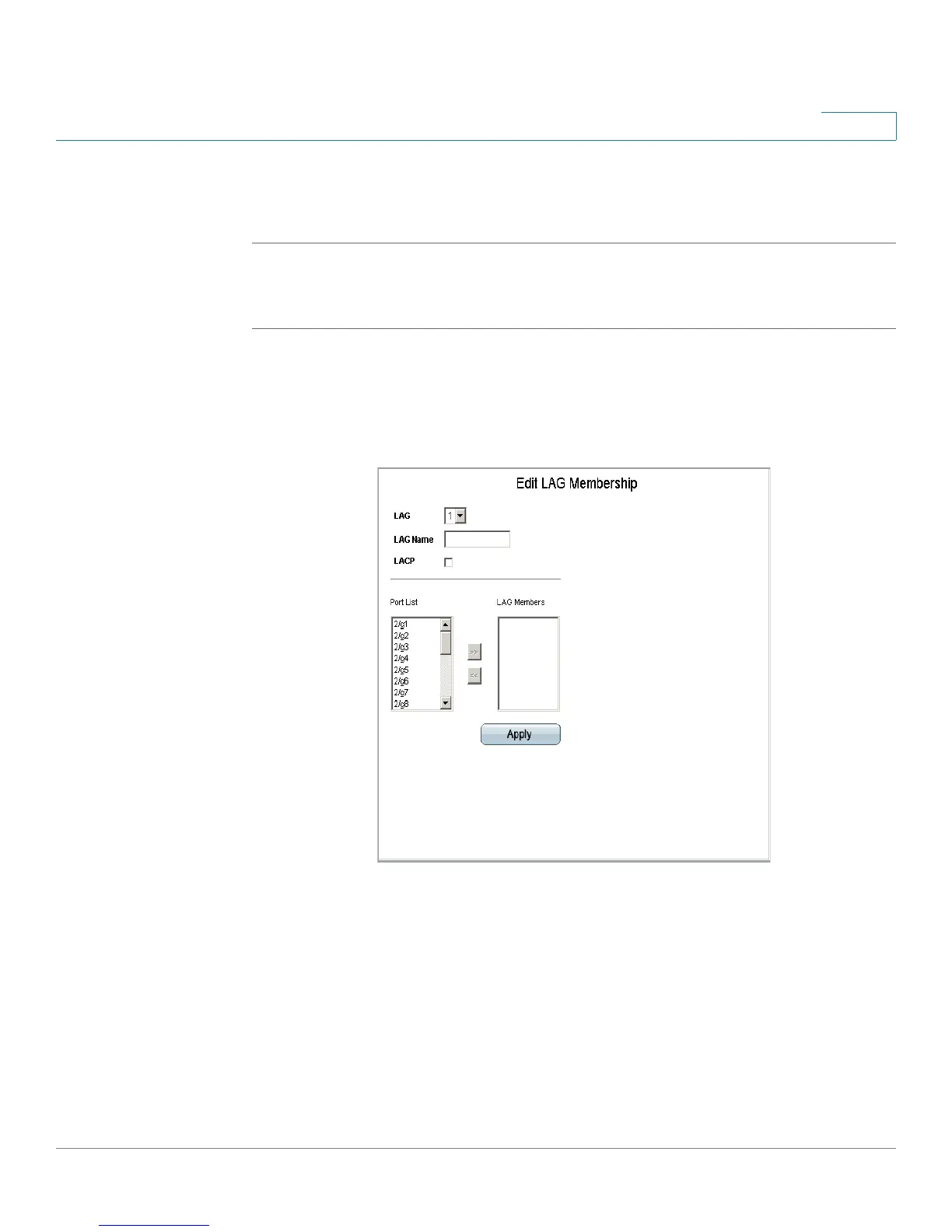

STEP 2 Click the Edit button. The Edit LAG Membership Page opens:
Edit LAG Membership Page
The
Edit LAG Membership Page contains the following fields.
• LAG — Displays the LAG number.
• LAG Name — Displays the LAG name.
• LACP — Indicates that LACP is enable on the LAG.
• Unit Number — Displays the stacking member for which LAG information is
defined.
STEP 3 Define the relevant fields.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
