Configuring Device Security
Defining Access Control
Cisco Small Business SFE/SGE Managed Switches Administration Guide 113
4
STEP 1 Click Security Suite >Access Control > IPv6 Based ACL. The IPv6 Based ACL
Page
opens:

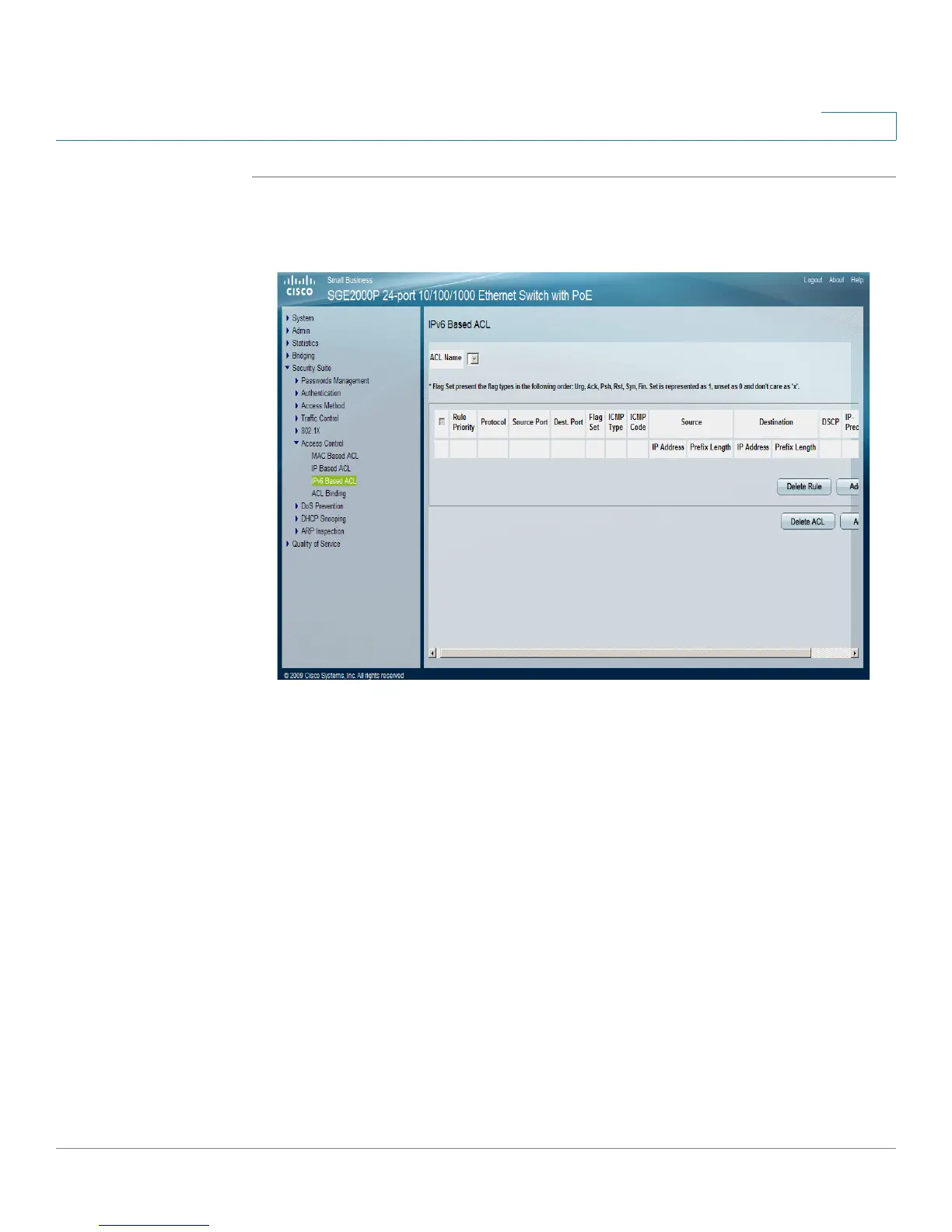

IPv6 Based ACL Page
The
IPv6 Based ACL Page contains the following fields:
• ACL Name — Displays the user-defined IP based ACLs.
• Rule Priority — Indicates the rule priority, which determines which rule is
matched to a packet on a first-match basis.
• Protocol — Creates an ACE based on a specific protocol.
- ICMP — Internet Control Message Protoco l (ICMP). The ICMP allows the
gateway or destination host to communicate with the source host. For
example, to report a processing error.
- IGMP — Internet Group Management Protocol (IGMP). Allows hosts to
notify their local switch or router that they want to receive transmissions
assigned to a specific multicast group.
- IP — Internet Protocol (IP). Specifies the format of packets and their
addressing method. IP addresses packets and forwards the packets to
the correct port.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
