Configuring Device Security
Defining Dynamic ARP Inspection
Cisco Small Business SFE/SGE Managed Switches Administration Guide 147
4
STEP 1 Click Security Suite > ARP Inspection > ARP Inspection List. The ARP Inspection
List Page
opens:

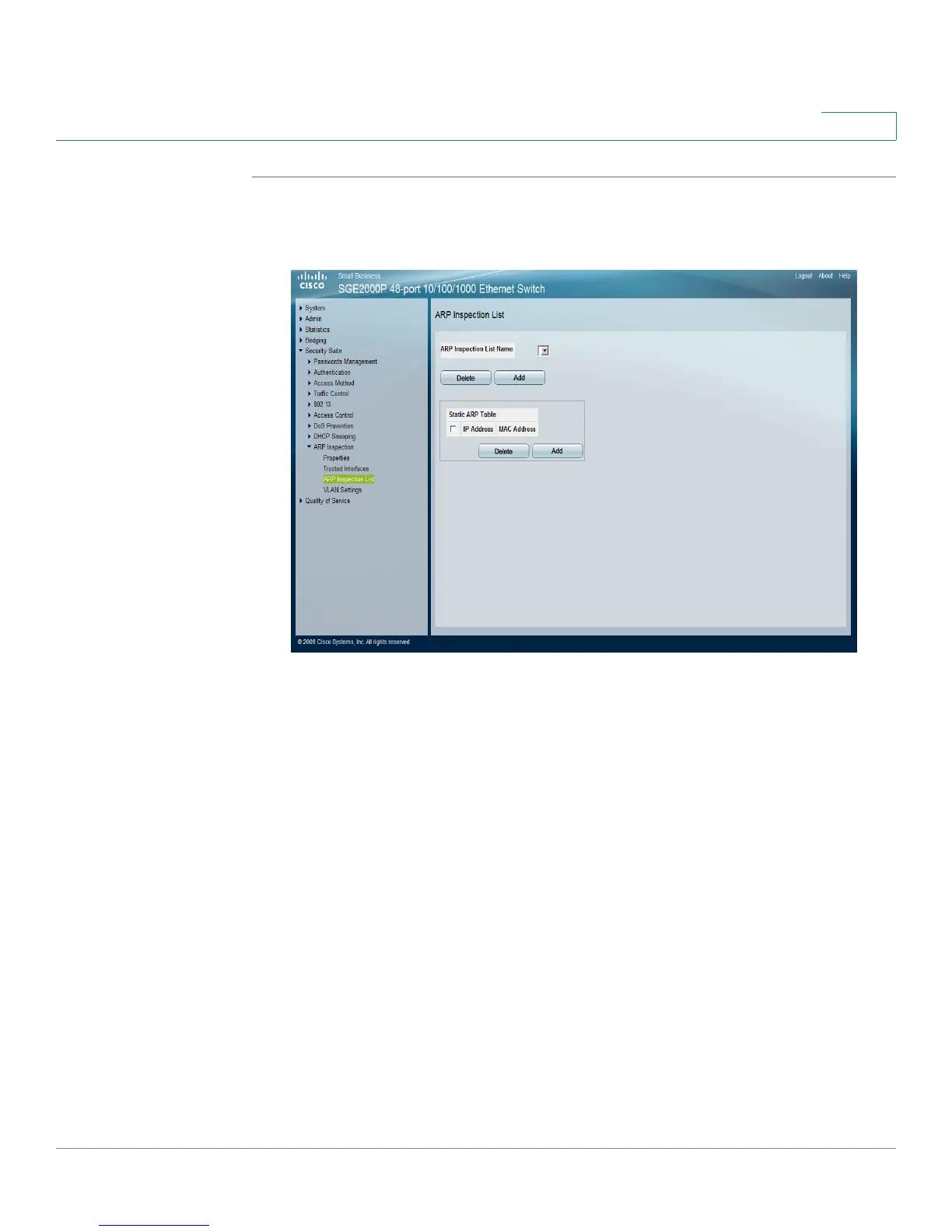

ARP Inspection List Page
The
ARP Inspection List Page contains the following fields:
• ARP Inspection List Name — Name of the Inspection List.
- Select List — Contains a list of existing user-defined ARP Inspection
Lists.
- Add — Defines a new ARP Inspection List. The list’s name can contain
up to 32 characters.
- Delete — Removes the selected list. Only lists that were added by the
New box above can be removed. To remove a list, the user selects the
list name and selects this field’s check box.
Static ARP Table
• IP Address — Specifies IP address included in ARP Binding Lists which is
checked against ARP requests and replies.
• MAC Address — Specifies MAC address included in ARP Binding Lists which
is checked against ARP requests and replies.
STEP 2 Click Add. The Add ARP List Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
