Configuring Ports
Configuring Ports Settings for Layer 2 Enabled Devices
Cisco Small Business SFE/SGE Managed Switches Administration Guide 154
5

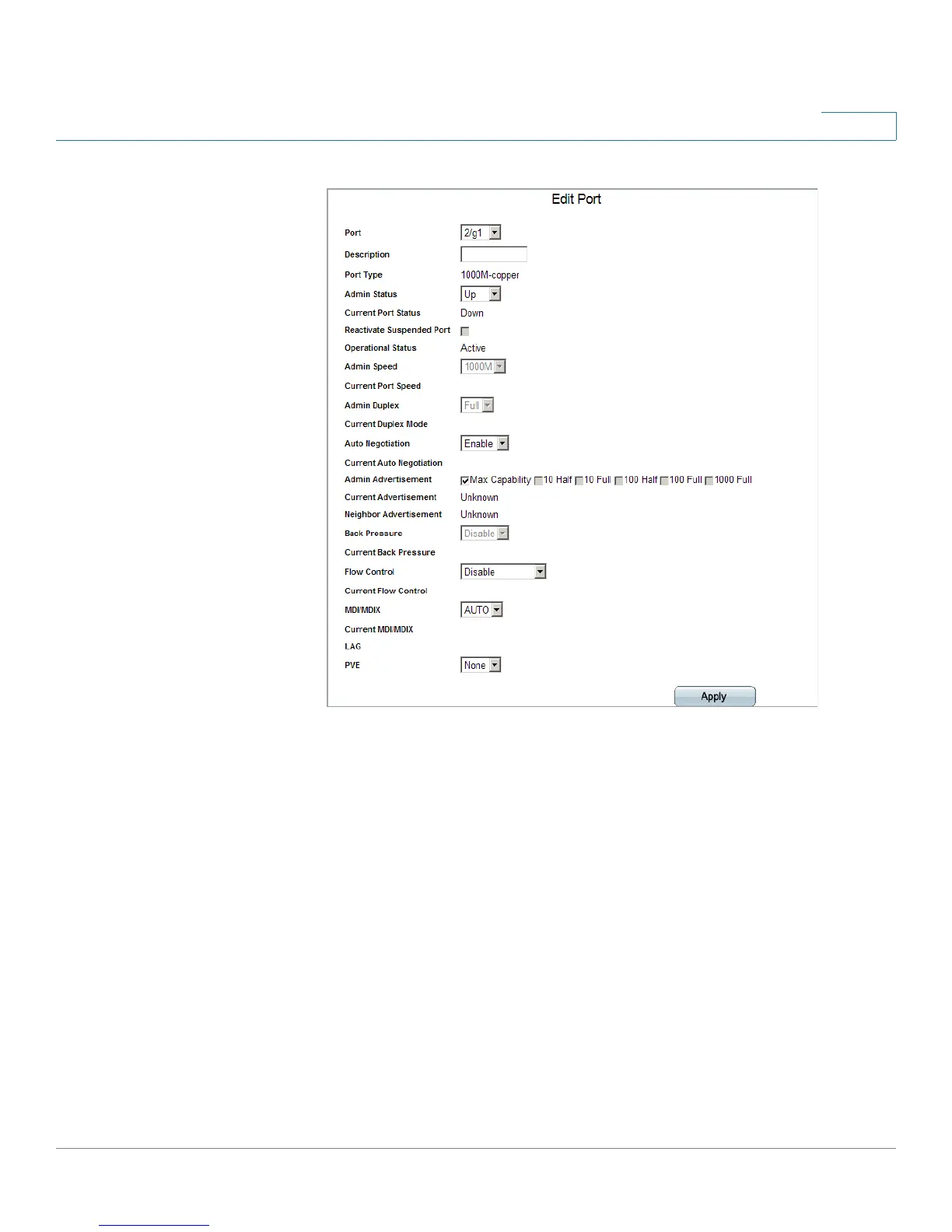

Edit Port Page
The
Edit Port Page
contains the following fields:
• Port — Displays the port number.
• Description — Specifies the port’s user-defined name.
• Port Type — Displays the port type. The possible field values are:
-
1000M
— Copper (copper cable).
-
1000M
— ComboC (combo port with copper cable 3).
-
1000M
— ComboF (combo port with optic fiber cable).
-
Fiber
— Indicates the port has a fiber optic port connection.
• Admin Status — Indicates whether the port is currently operational or non-
operational. The possible field values are:
- Up — Indicates the port is currently operating.
