Configuring VLANs
Defining a Protocol Port
Cisco Small Business SFE/SGE Managed Switches Administration Guide 188
6
STEP 1 Click Bridging > VLAN Management > Protocol Port. The Protocol Port Page
opens:

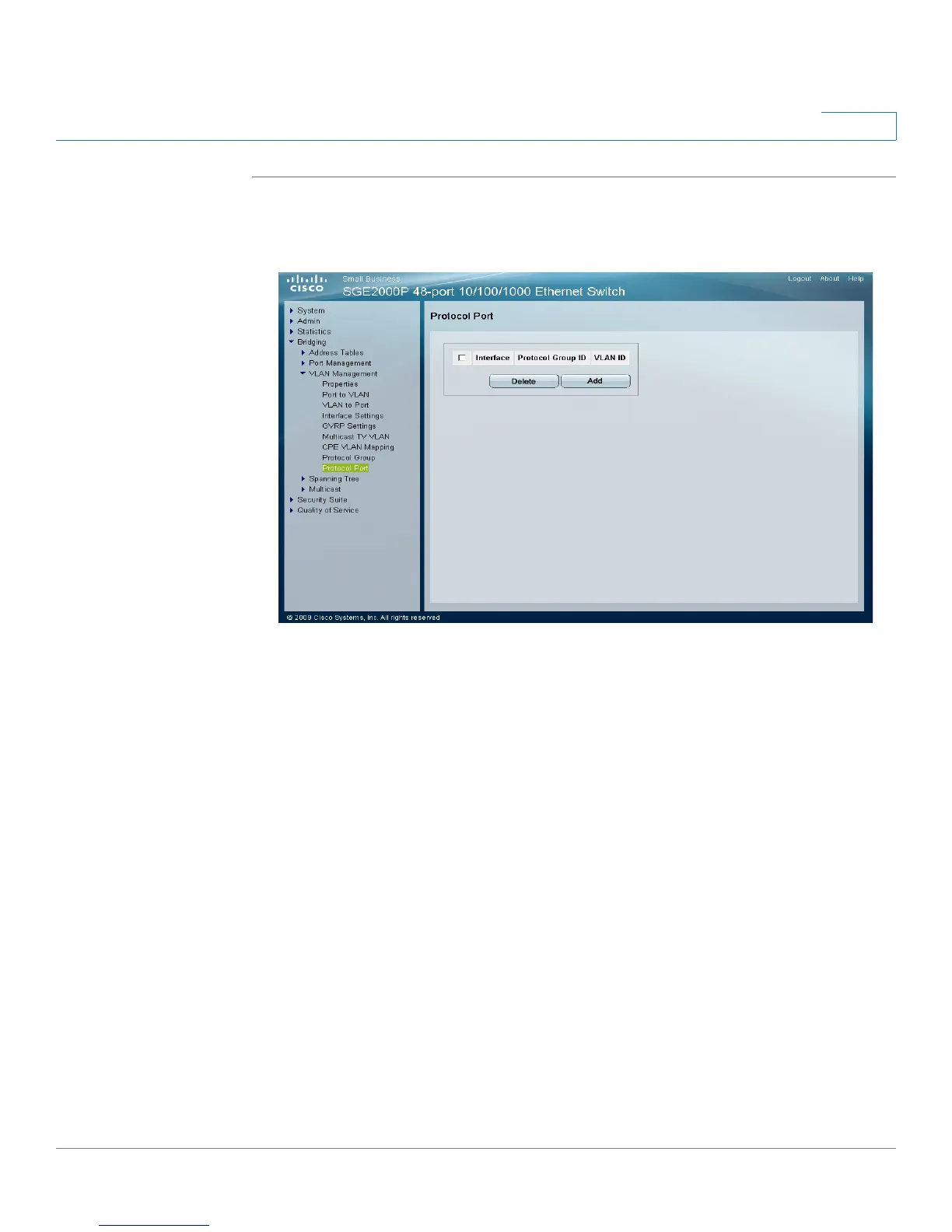

Protocol Port Page
The
Protocol Port Page contains the following fields.
• Interface — Port or LAG number added to a protocol group.
• Protocol Group ID — Protocol group ID to which the interface is added.
Protocol group IDs are defined in the Protocol Group Table.
• VLAN ID — Attaches the interface to a user-defined VLAN ID. Protocol ports
can either be attached to a VLAN ID or a VLAN name.
STEP 2 Click the Add Button. The Add Protocol Port to VLAN Page opens:
The
Add Protocol Port to VLAN Page provides parameters for adding protocol
port configurations.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
