Configuring Multicast Forwarding
IGMP Snooping
Cisco Small Business SFE/SGE Managed Switches Administration Guide 236
9
STEP 1 Click Bridging > Multicast > IGMP Snooping. The IGMP Snooping Page opens:

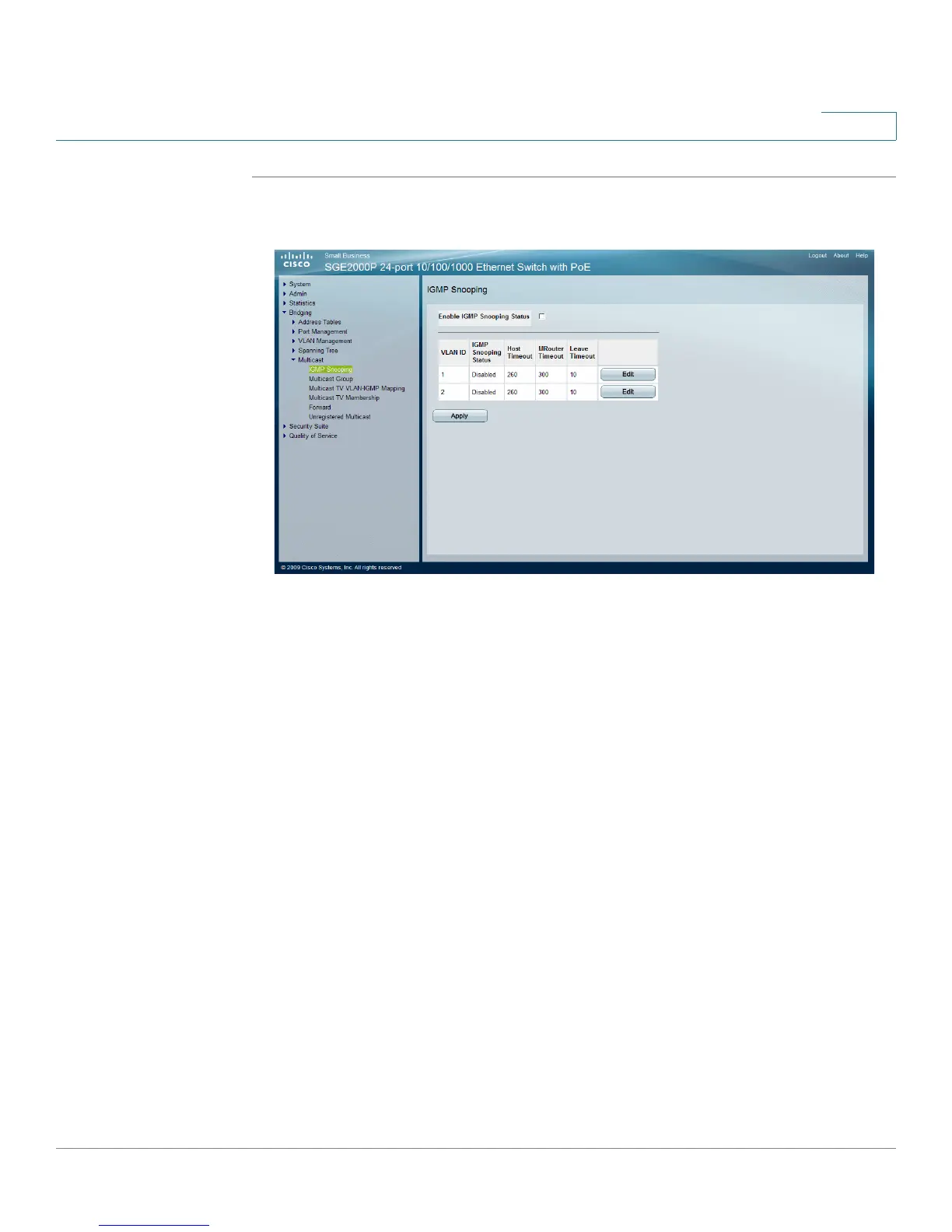

IGMP Snooping Page
The
IGMP Snooping Page contains the following fields:
• Enable IGMP Snooping Status — Indicates that the device monitors network
traffic to determine which hosts want to receive multicast traffic. IGMP
Snooping can be enabled only if Bridge Multicast Filtering is enabled. The
possible field values are:
- Checked — Enables IGMP Snooping on the device.
- Unchecked — Disables IGMP Snooping on the device.
• VLAN ID — Specifies the VLAN ID.
• IGMP Snooping Status — Indicates if IGMP snooping is enabled on the specific
VLAN. The possible field values are:
- Enabled — IGMP Snooping is enabled on the VLAN.
- Disabled — IGMP Snooping is not enabled on the VLAN.
• Host Timeout — Indicates the amount of the time the Host waits to receive a
message before it times out. The default value is 260 seconds.
• MRouter Timeout — Indicates the amount of the time the Multicast router waits
to receive a message before it times out. The default value is 300 seconds.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
