Configuring Multicast Forwarding
Defining Multicast Group
Cisco Small Business SFE/SGE Managed Switches Administration Guide 239
9
STEP 1 Click Bridging > Multicast> Multicast Group. The Multicast Group Page opens:

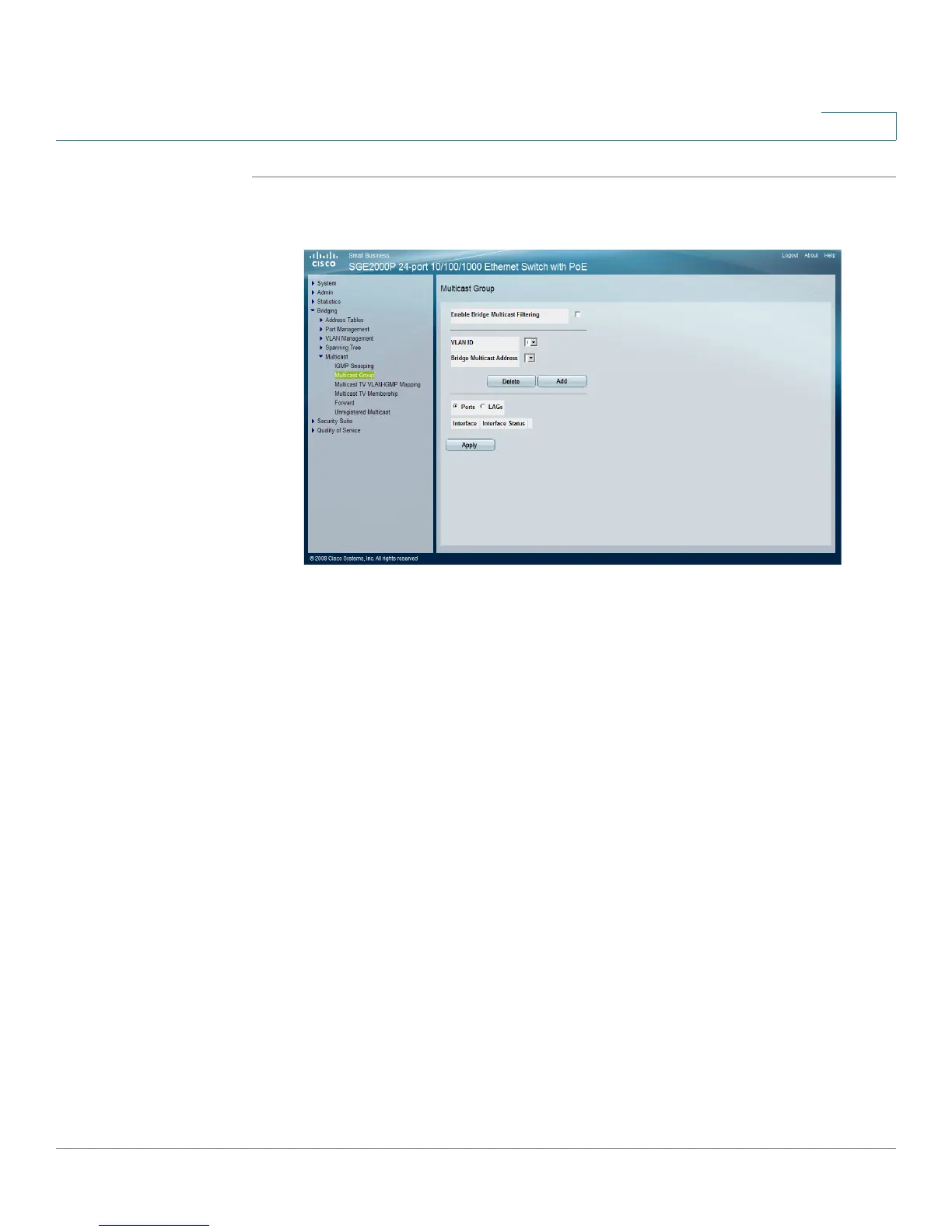

Multicast Group Page
The
Multicast Group Page contains the following fields:
• Enable Bridge Multicast Filtering — Indicates if Bridge Multicast Filtering is
enabled on the device. Bridge Multicast Filtering can be enabled only if IGMP
Snooping is enabled. The possible field values are:
- Checked — Enables Multicast Filtering on the device.
- Unchecked — Disables Multicast Filtering on the device.
• VLAN ID — Specifies the VLAN ID.
• Bridge Multicast Address — Identifies the Multicast group MAC address or IP
address.
• Ports — Displays the Multicast Group status of all of the specified stacking
member’s ports.
• LAGs — Displays the Multicast Group status of all of the device’s LAGs.
• Interface — Displays the interface on which the Multicast service is configured.
• Interface Status — Displays the interface status. The options are as follows:
- Static — Attaches the interface to the Multicast group as static member
in the Static Row. The interface has joined the Multicast group statically
in the Current Row.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
