Configuring Multicast Forwarding
Defining Unregistered Multicast Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 247
9
The Unregistered Multicast Page contains fields to handle Multicast frames that
belong to Unregistered Multicast groups. Unregistered Multicast groups are the
groups that are not known to the device. All Unregistered Multicast frames are still
forwarded to all ports on the VLAN. After a port has been set to Forwarding/
Filtering, then this port's configuration is valid for any VLAN it is a member of (or
will be a member of).
To define unregistered Multicast settings:
STEP 1 Click Bridging > Multicast > Unregistered Multicast. The Unregistered Multicast
Page
opens:

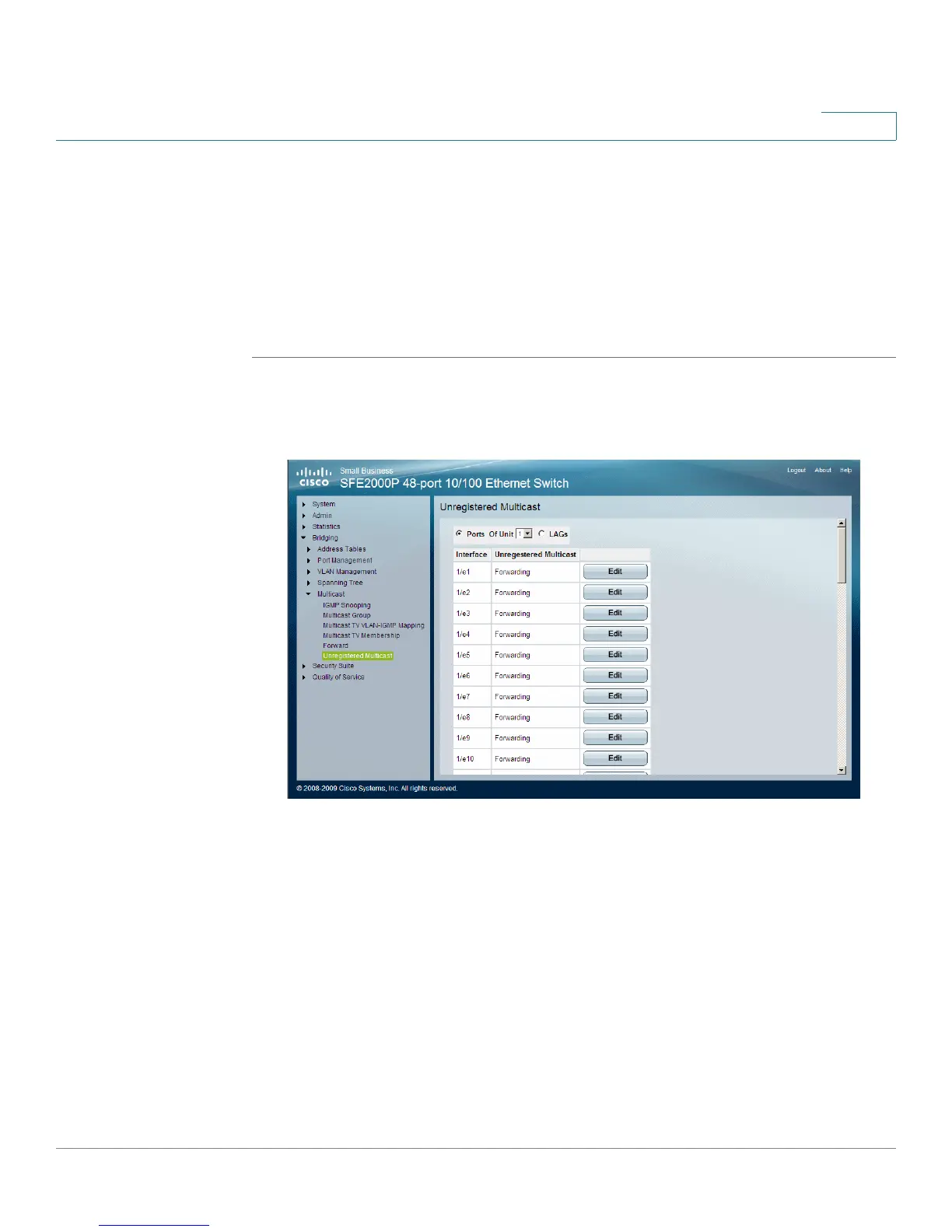

Unregistered Multicast Page
The
Unregistered Multicast Page contains the following fields:
• Ports — Indicates the port for which the unregistered Multicast parameters are
displayed.
• EtherChannels — Specifies the EtherChannel for which the Unregistered
Multicast settings are displayed.
• Interface — Displays the interface ID.
• Unregistered Multicast — Indicates the forwarding status of the selected
interface. The possible values are:
- Forwarding — Enables forwarding of Unregistered Multicast frames to
the selected VLAN interface. This is the default setting.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
