Configuring Spanning Tree
Defining Multiple Spanning Tree
Cisco Small Business SFE/SGE Managed Switches Administration Guide 270
10
• Designated Bridge ID — Indicates the bridge ID number that connects the link
or shared LAN to the root.
• Designated Port ID — Indicates the Port ID number on the designated bridge
that connects the link or the shared LAN to the root.
• Designated Cost — Indicates that the default path cost is assigned according
to the method selected on the Spanning Tree Global Settings page.
• Forward Transitions — Indicates the number of times the port has changed
from Forwarding state to Blocking state.
• Remain Hops — Indicates the hops remaining to the next destination.
STEP 2 Click the Interface Table button. The MSTP Interface Table Page opens:

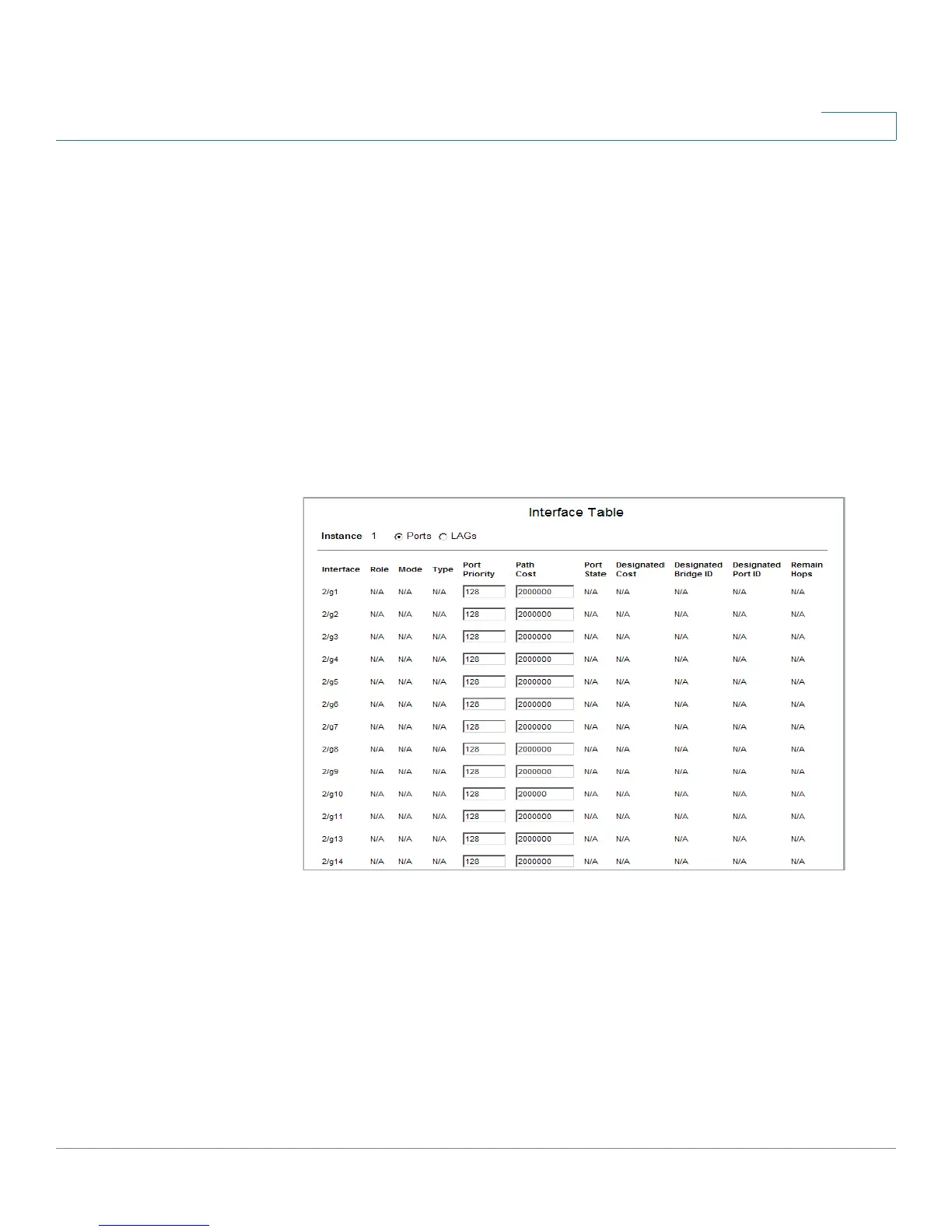

MSTP Interface Table Page
The
MSTP Interface Table Page contains the following fields:
• Instance — Defines the VLAN group to which the interface is assigned.
• Interface — Indicates the port or LAG for which the MSTP settings are
displayed.
• Role — Indicates the port role assigned by the STP algorithm in order to
provide to STP paths. The possible field values are:
- Root — Provides the lowest cost path to forward packets to root device.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
