Configuring Quality of Service
Defining Advanced QoS Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 287
11
STEP 1 Click Quality of Service > Advanced Mode > DSCP Mapping. The
DSCP Mapping
Page
opens:

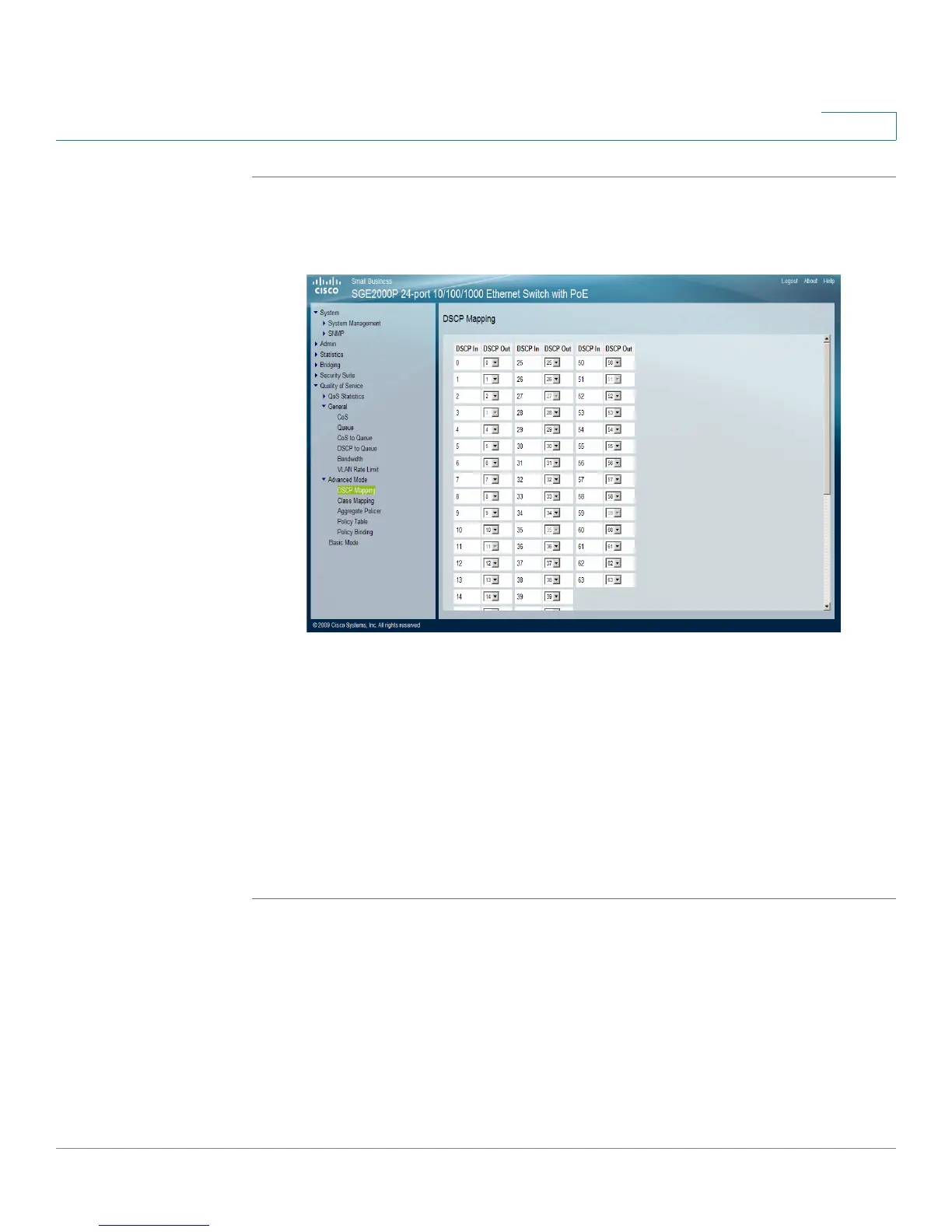

DSCP Mapping Page
The
DSCP Mapping Page
contains the following fields:
• DSCP In — Indicates the DSCP value in the incoming packet which will be
mapped to an outgoing packet.
• DSCP Out — Sets a mapped DSCP value in the outgoing packet for the
corresponding incoming packet.
STEP 2 Define the relevant mapping.
STEP 3 Click Apply. DSCP incoming values are mapped to DSCP outgoing values, and the
device is updated.
