Configuring Quality of Service
Defining Advanced QoS Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 289
11
STEP 2 Click the Add button. The Add QoS Class Map Page opens:

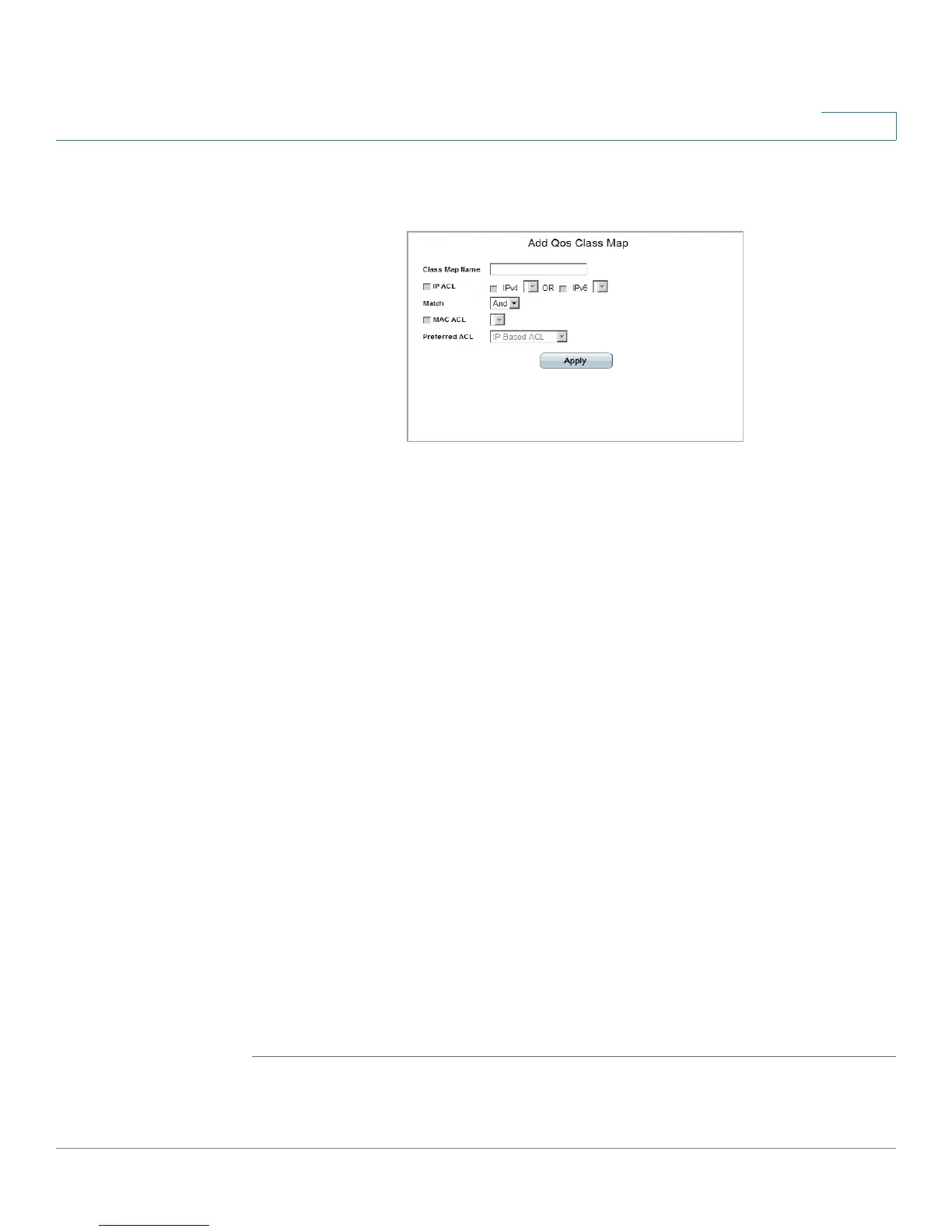

Add QoS Class Map Page
The
Add QoS Class Map Page contains the following fields.
• Class Map Name — Defines a new Class Map name
• IP ACL — Matches packets to IP based ACLs first, then matches packets to
MAC based ACLs. Select either an IPv4 ACL or an IPv6 ACL.
• Match — Criteria used to match IP addresses and /or MAC addresses with an
ACL’s address.The possible field values are:
- And — Both the MAC-based and the IP-based ACL must match a
packet.
- O r — Either the MAC-based or the IP-based ACL must match a packet.
• MAC ACL — Matches packets to MAC based ACLs first, then matches packets
to IP based ACLs.
• Preferred ACL — Defines if packets are first matched to an IP based ACL or a
MAC based ACL. The possible field values are:
- IP Based ACLs — Matches packets to IP based ACLs first, then matches
packets to MAC based ACLs.
- MAC Based ACLs — Matches packets to MAC based ACLs first, then
matches packets to IP based ACLs.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The device is updated.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
