Configuring Quality of Service
Defining Advanced QoS Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 296
11

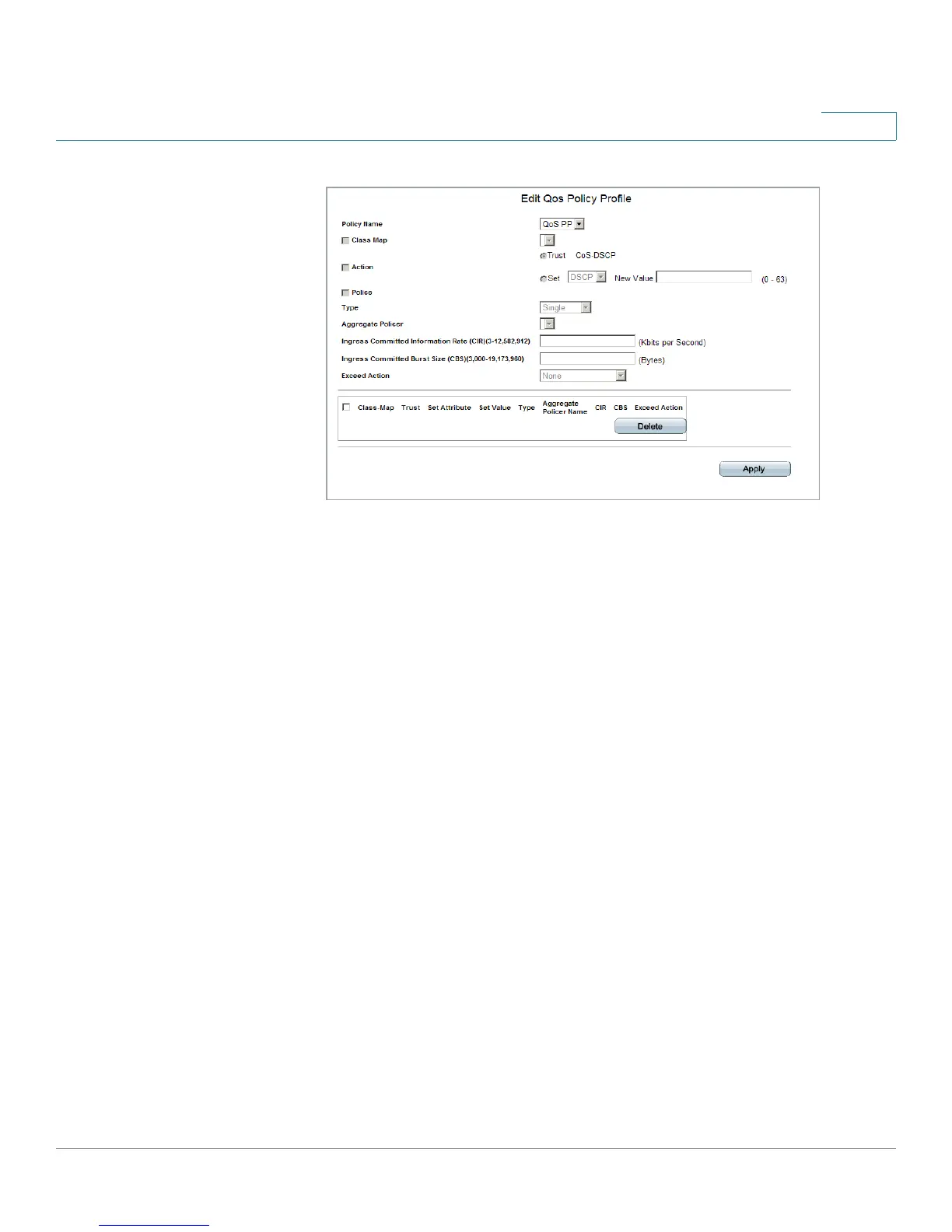

Edit QoS Policy Profile Page
The
Edit QoS Policy Profile Page contains the following fields.
• Policy Name — Displays the user-defined policy name.
• Class Map — Displays the user-defined name of the class map.
• Action — Defines the action attached to the rule. The possible field value is:
• Set — Defines the Trust configuration manually. The possible field values
are:
- DSCP — In the New Value box, the possible values are 0-63.
- CoS — In the New Value box, the possible values are 0-7.
• Police — Enables Policer functionality.
• Type — Policer type for the policy. Possible values are:
- Aggregate — Configures the class to use a configured aggregate
policer selected from the drop-down menu. An aggregate policer is
defined if the policer is shared with multiple classes. Traffic from two
different ports can be configured for policing purposes. An aggregate
policer can be applied to multiple classes in the same policy map, but
cannot be used across different policy maps.
- Single — Configures the class to use manually configured information
rates and exceed actions.
• Aggregate Policer — Specifies the Aggregate Policer Name

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
