Configuring Quality of Service
Defining QoS Basic Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 301
11
STEP 1 Click Quality of Service > Advanced Mode > DSCP Mapping. The
DSCP Mapping
Page
opens:

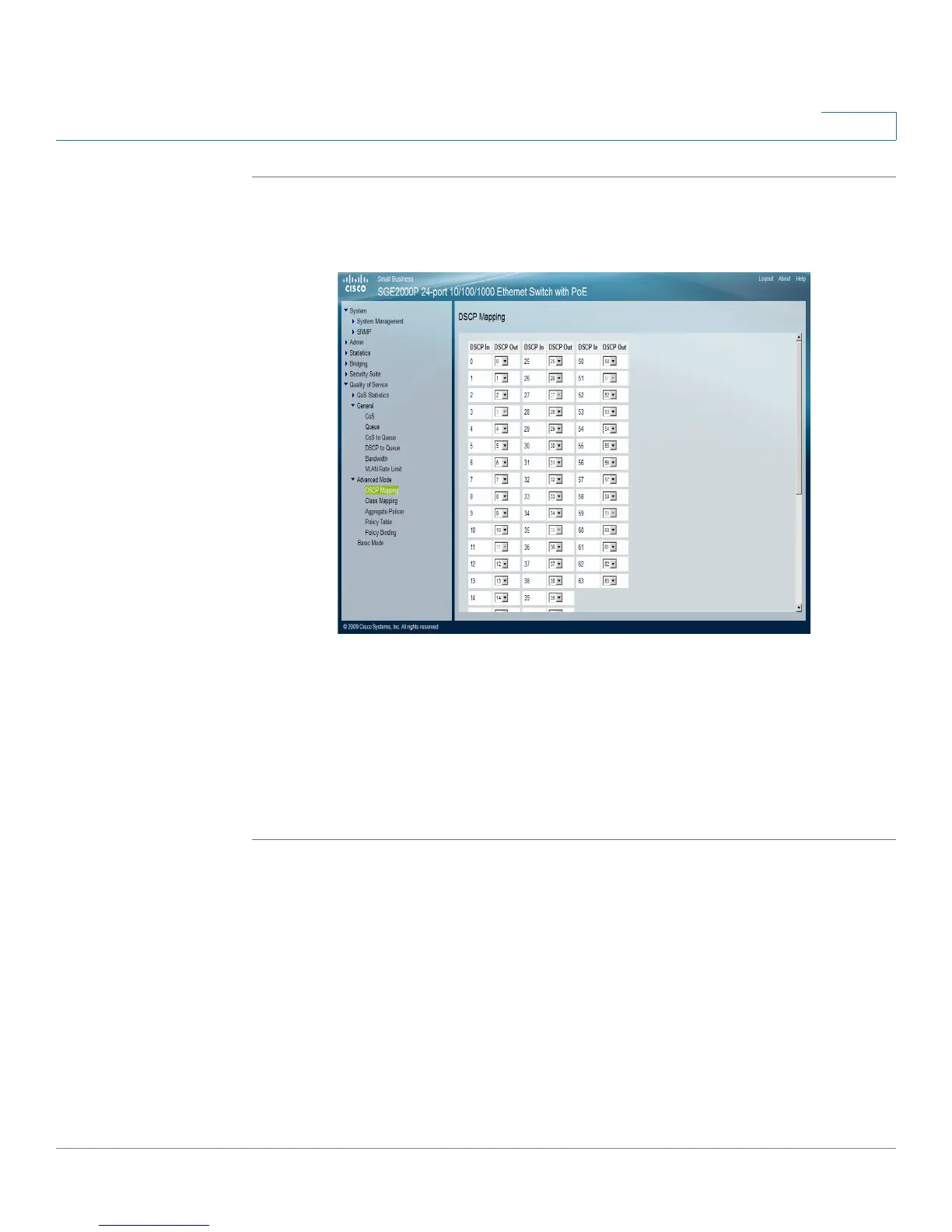

DSCP Mapping Page
The
DSCP Mapping Page
contains the following fields:
• DSCP In — Indicates the DSCP value in the incoming packet.
• DSCP Out — Indicates the DSCP value in the outgoing packet.
STEP 2 Define the relevant fields.
STEP 3 Click Apply. The device is updated.
