Managing System Files
Save Configuration
Cisco Small Business SFE/SGE Managed Switches Administration Guide 332
13
was started or rebooted. When the device shuts down or reboots the next time,
this configuration becomes the Starting Configuration.
• Starting configuration — Contains the parameter definitions which were valid
in the Running Configuration when the system last rebooted or shut down.
• Backup configuration — Contains a copy of the system configuration for
protection against system shutdown, or for maintenance of a specific operating
state.
File names cannot contain slashes (\ or /), the leading letter of the file name should
not be a period (.), and the maximum length for file names on the TFTP server is
127 characters or 31 characters for files on the switch. (Valid characters: A-Z, a-z,
0-9, “.”, “-”, “_”). In the
Save Configuration Page , define the parameters of the
system configuration files.
STEP 1 Click Admin > File Management > Save Configuration. The Save Configuration
Page
opens:

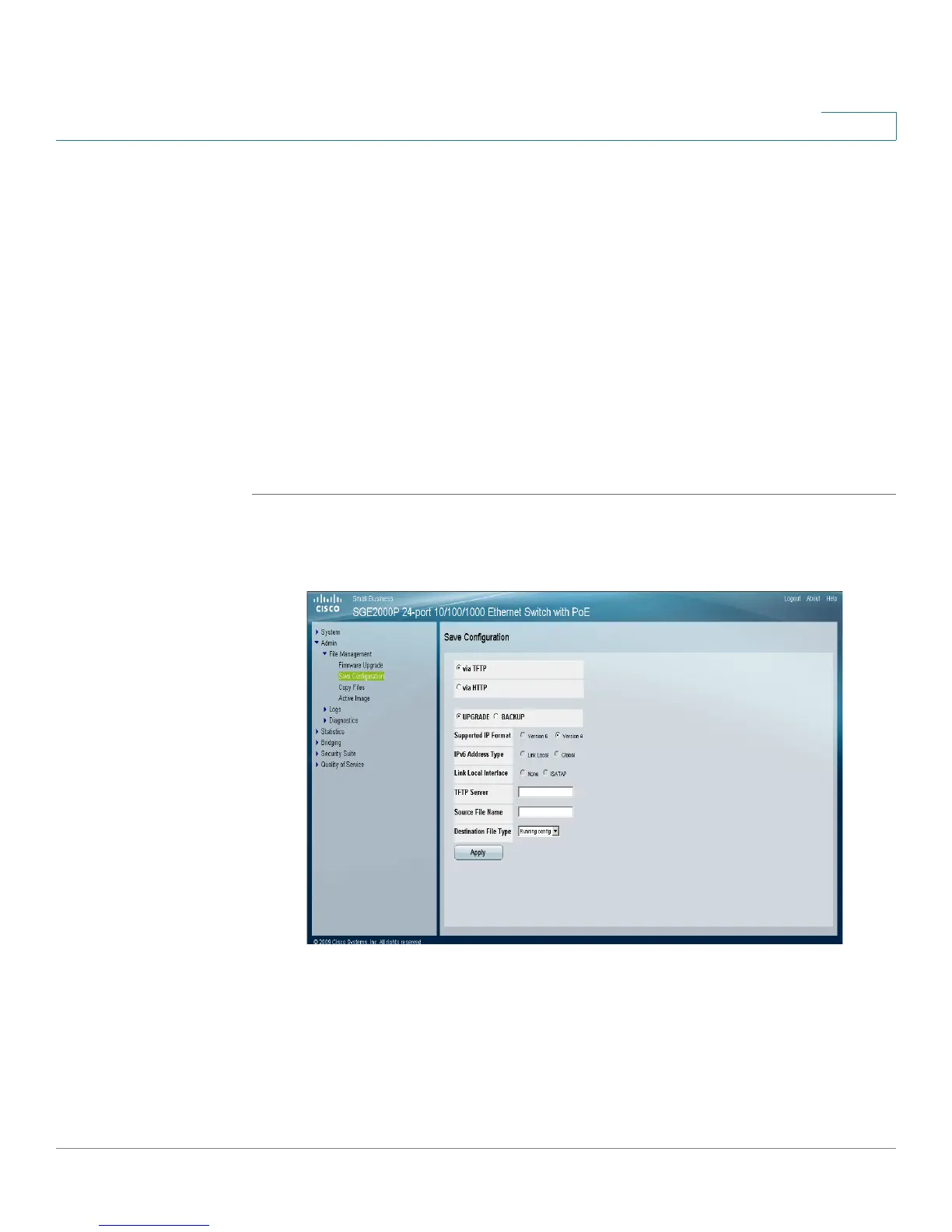

Save Configuration Page
The
Save Configuration Page contains the following fields:
• via TFTP — Download and upload files using TFTP.
• via HTTP — Download and upload files using HTTP.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
