Managing Power-over-Ethernet Devices
Defining PoE Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 337
14

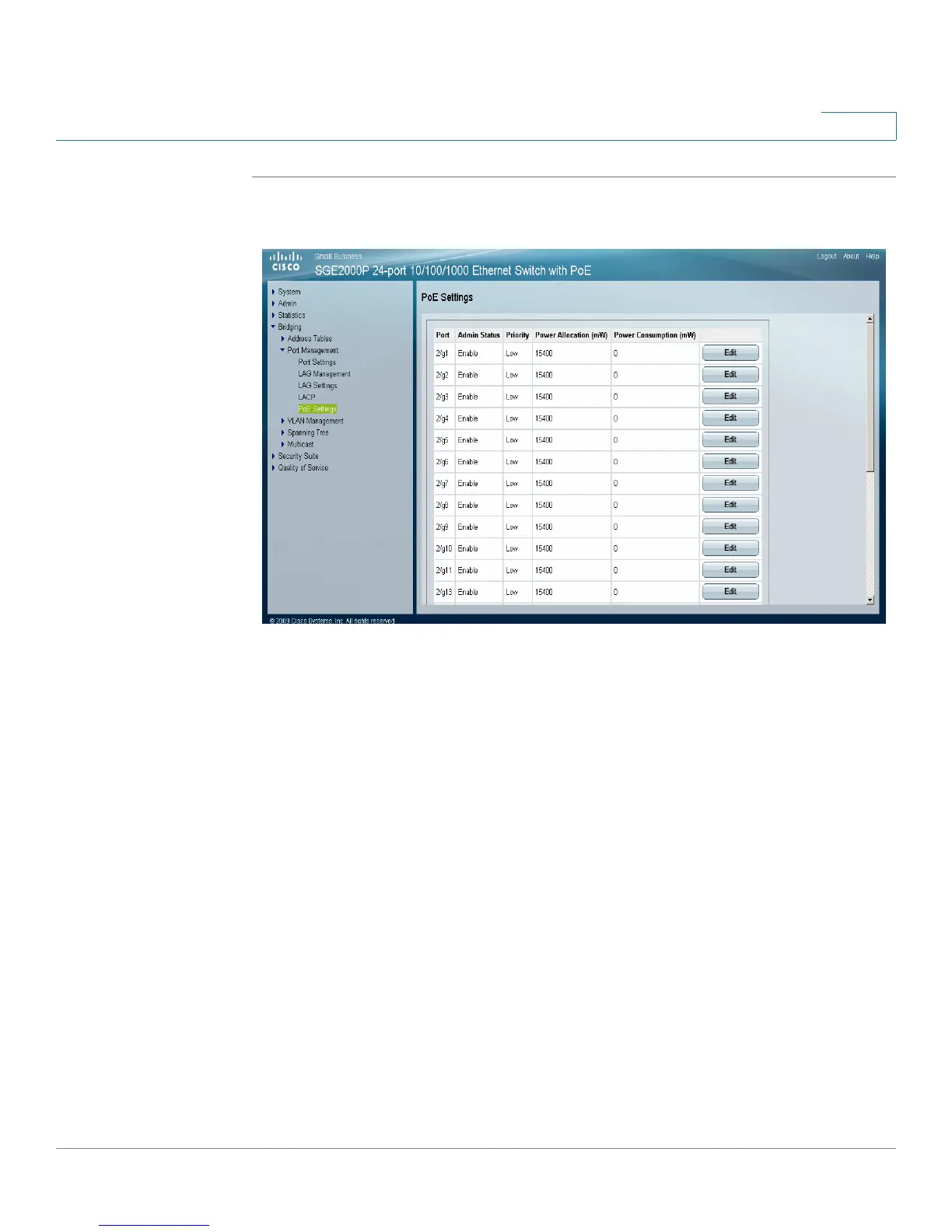

STEP 1 Click Bridging > Port Management > PoE Settings. The PoE Settings Page opens:
PoE Settings Page
The
PoE Settings Page displays the currently configured PoE ports and contains
the following information:
• Port — Displays the selected port number.
• Admin Status — Indicates whether PoE is enabled or disabled on the port. The
possible values are:
- Enable — Enables PoE on the port. This is the default setting.
- Disable — Disables PoE on the port.
• Priority — Indicates the PoE port priority. The possible values are: Critical , High
and
Low . The default is Low .
• Power Allocation (mW) — Indicates the power in milliwatts allocated to the
port. The range is 3,400 -15,400.
• Power Consumption (mW) — Indicates the amount of power in milliwatts
assigned to the powered device connected to the selected interface.
STEP 2 Click the Edit button. The Edit PoE Settings Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
