Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Managing System Logs
Viewing Remote Logs
Cisco Small Business SFE/SGE Managed Switches Administration Guide 357
16

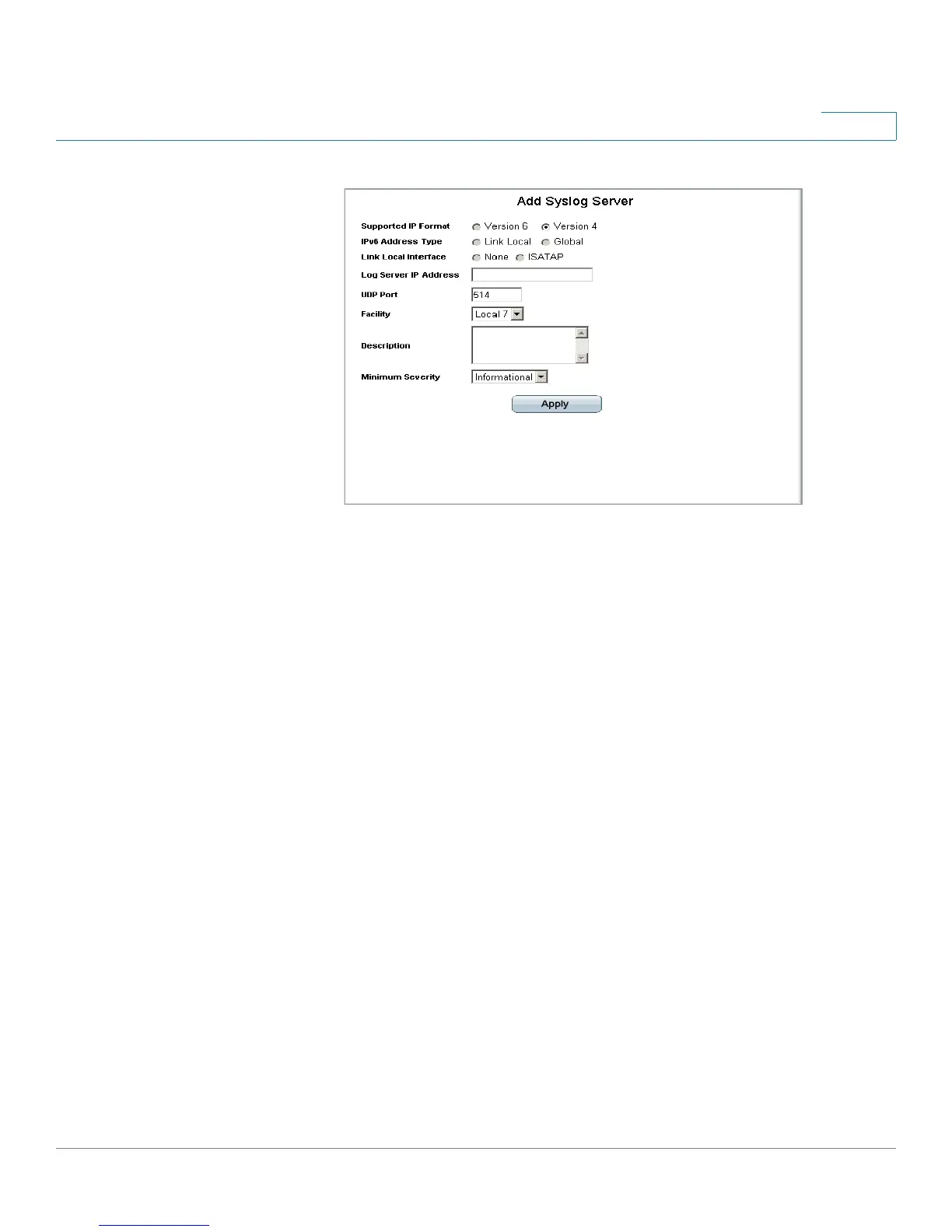

Add Syslog Server Page
The
Add Syslog Server Page contains fields for defining new Remote Log
Servers.
The
Add Syslog Server Page contains the following fields:
• Supported IP Format — Provides the supported IP format: Version 6 or Version
4.
• IPv6 Address type — Indicates the IPv6 Type. The possible field values are:
- Link Local — Indicates the IPv6 address is link-local.
- Global — Indicates the IPv6 address is global Unicast.
• Link Local Interface — Indicates the Link Local Interface. The possible field
values are:
- — Indicates Link Local interface.
- ISATAP — Indicates a ISATAP tunnel is a Link Local interface.
• Log Server IP Address — Specifies the server to which logs can be sent.
• UDP Port — Defines the UDP port to which the server logs are sent. The
possible range is 1 to 65535. The default value is 514.
• Facility — Defines a user-defined application from which system logs are sent
to the remote server. Only one facility can be assigned to a single server. If a
second facility level is assigned, the first facility is overridden. All applications
defined for a device utilize the same facility on a server. The field default is
Local 7. The possible field values are Local 0 - Local 7.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
