Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Viewing Statistics
Viewing Ethernet Statistics
Cisco Small Business SFE/SGE Managed Switches Administration Guide 362
17

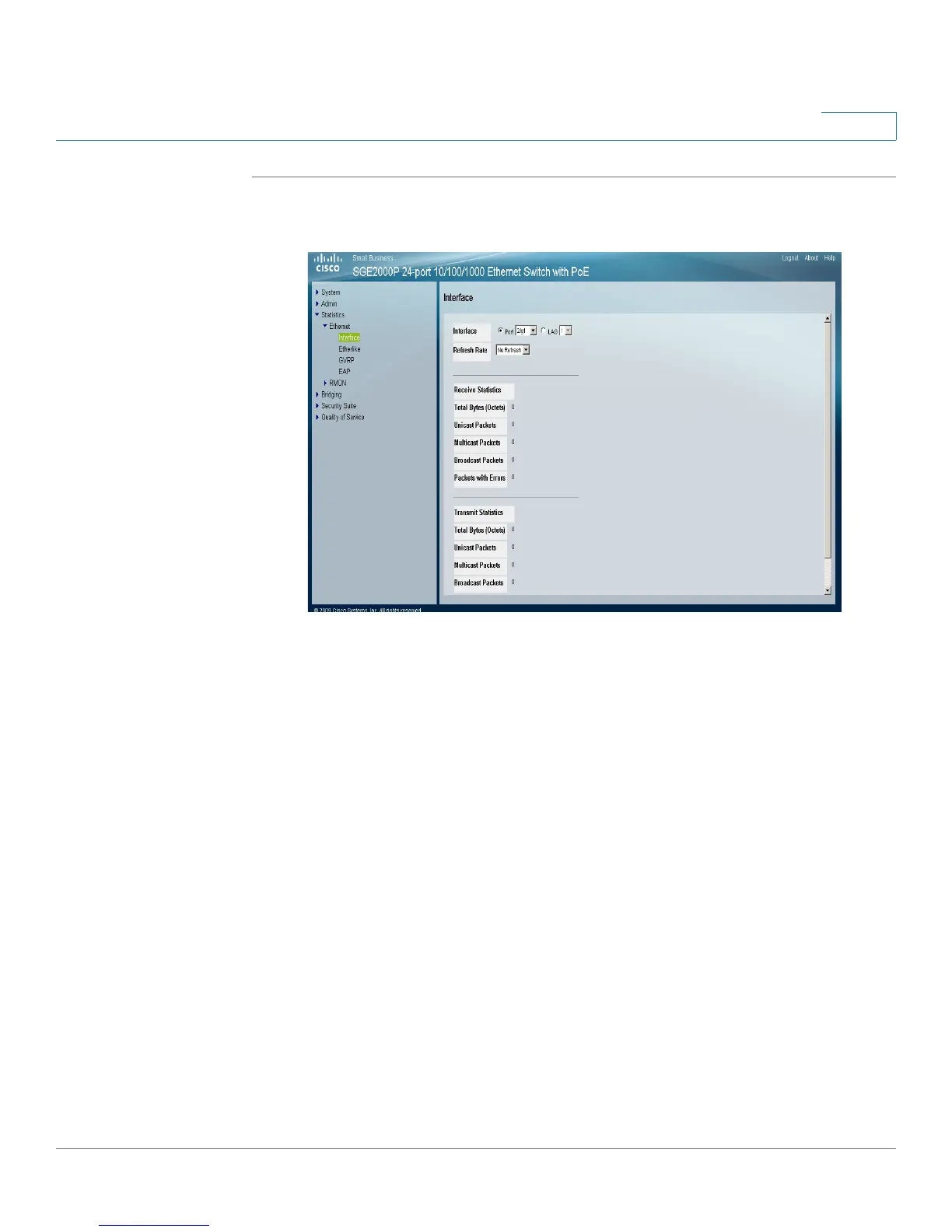

STEP 1 Click Statistics > Ethernet > Interface. The Ethernet Interface Page opens:
Ethernet Interface Page
The
Ethernet Interface Page contains the following fields:
• Interface — Indicates the interface for which statistics are displayed. The
possible field values are:
- Port — Defines the specific port for which Ethernet statistics are
displayed.
- LAG — Defines the specific LAG for which Ethernet statistics are
displayed.
• Refresh Rate — Defines the amount of time that passes before the interface
statistics are refreshed. The possible field values are:
- 15 Sec — Indicates that the Ethernet statistics are refreshed every 15
seconds.
- 30 Sec — Indicates that the Ethernet statistics are refreshed every 30
seconds.
- 60 Sec — Indicates that the Ethernet statistics are refreshed every 60
seconds.
The Receive Statistics area contains the following fields:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
