Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Viewing Statistics
Viewing Ethernet Statistics
Cisco Small Business SFE/SGE Managed Switches Administration Guide 366
17

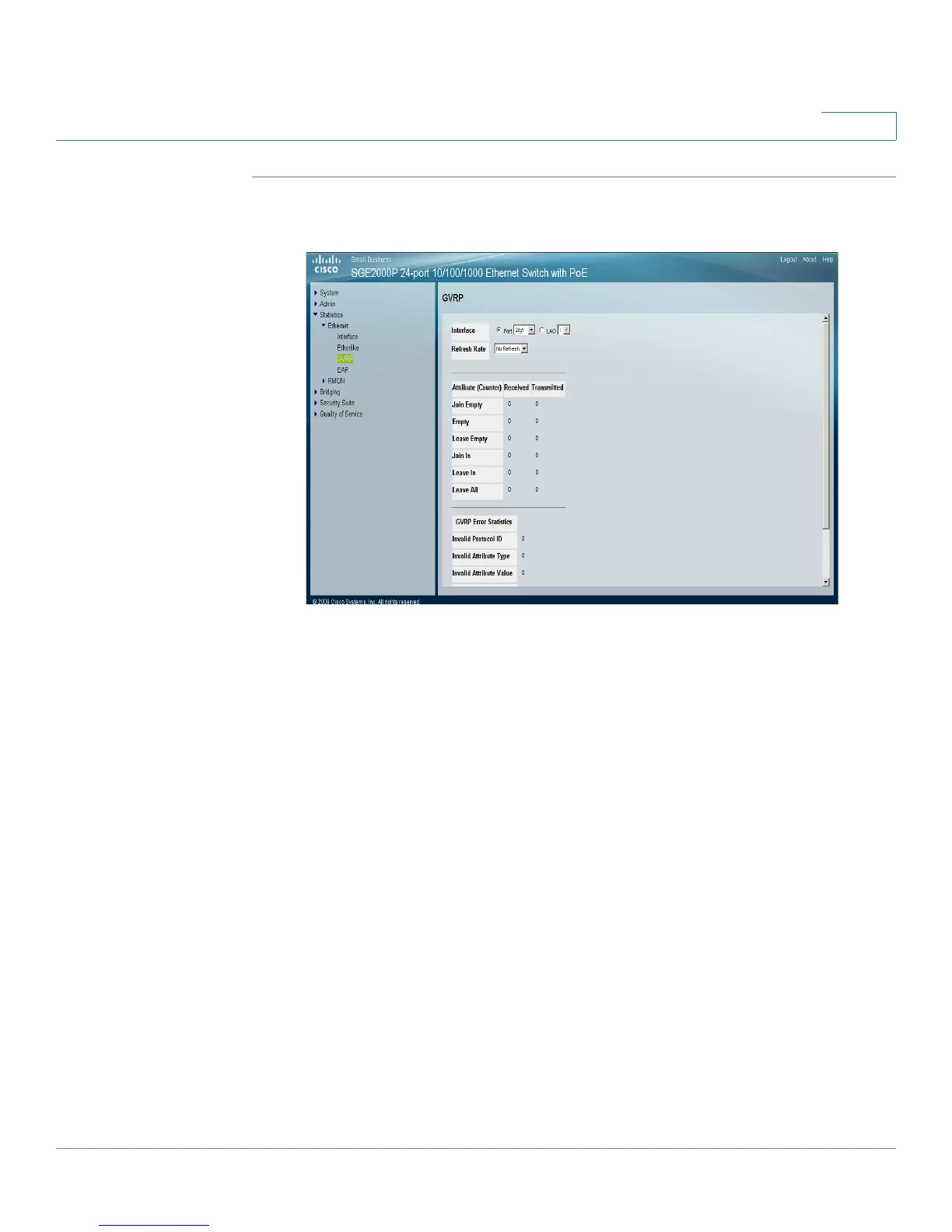

STEP 1 Click Statistics > Ethernet > GVRP. The GVRP Page opens:
GVRP Page
The
GVRP Page is divided into two areas, GVRP Statistics Table and GVRP Error
Statistics Table.
The following fields are relevant for both tables:
• Interface — Specifies the interface type for which the statistics are displayed.
- Port — Indicates if port statistics are displayed.
- LAG — Indicates if LAG statistics are displayed.
• Refresh Rate — Indicates the amount of time that passes before the GVRP
statistics are refreshed. The possible field values are:
- 15 Sec — Indicates that the GVRP statistics are refreshed every 15
seconds.
- 30 Sec — Indicates that the GVRP statistics are refreshed every 30
seconds.
- 60 Sec — Indicates that the GVRP statistics are refreshed every 60
seconds.
The GVRP Received Transmitted Table contains the following fields:
• Join Empty — Displays the device GVRP Join Empty statistics.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
