Viewing Statistics
Viewing Ethernet Statistics
Cisco Small Business SFE/SGE Managed Switches Administration Guide 368
17

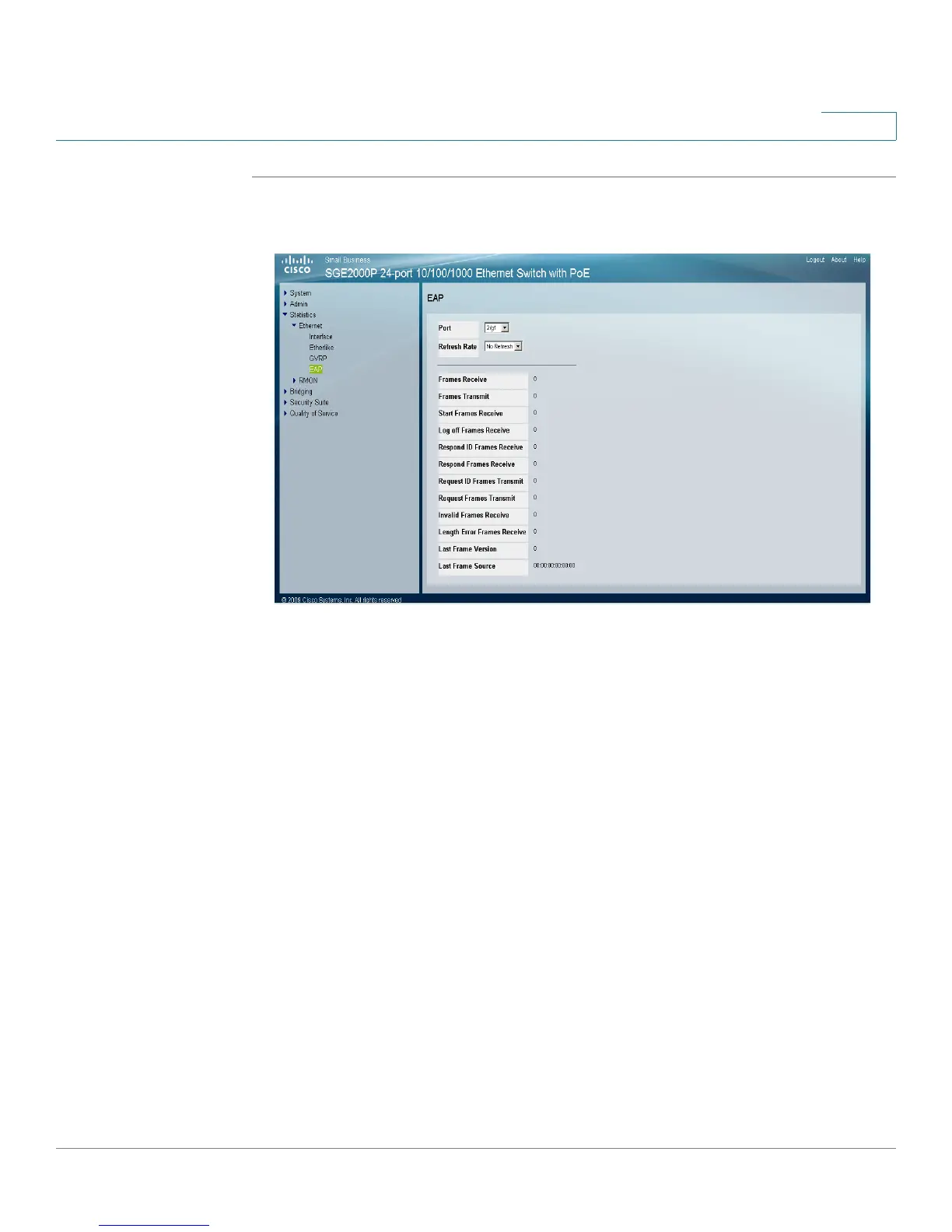

STEP 1 Click Statistics > Ethernet > EAP. The EAP Page opens:
EAP Page
The EAP Page contains the following fields:
• Unit Number — Indicates the stacking member for which the EAP statistics are
displayed.
• Port — Indicates the port which is polled for statistics.
• Refresh Rate — Defines the amount of time that passes before the EAP
statistics are refreshed. The possible field values are:
- 15 Sec — Indicates that the EAP statistics are refreshed every 15
seconds.
- 30 Sec — Indicates that the EAP statistics are refreshed every 30
seconds.
- 60 Sec — Indicates that the EAP statistics are refreshed every 60
seconds.
• Frames Receive — Indicates the number of valid EAPOL frames received on
the port.
• Frames Transmit— Indicates the number of EAPOL frames transmitted via the
port.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
