Viewing Statistics
Configuring RMON History
Cisco Small Business SFE/SGE Managed Switches Administration Guide 376
17
To view the RMON History Table:
STEP 1 Click Statistics > RMON > History. The RMON History Control Page opens:
STEP 2 Click the History Table button. The RMON History Table Page opens:

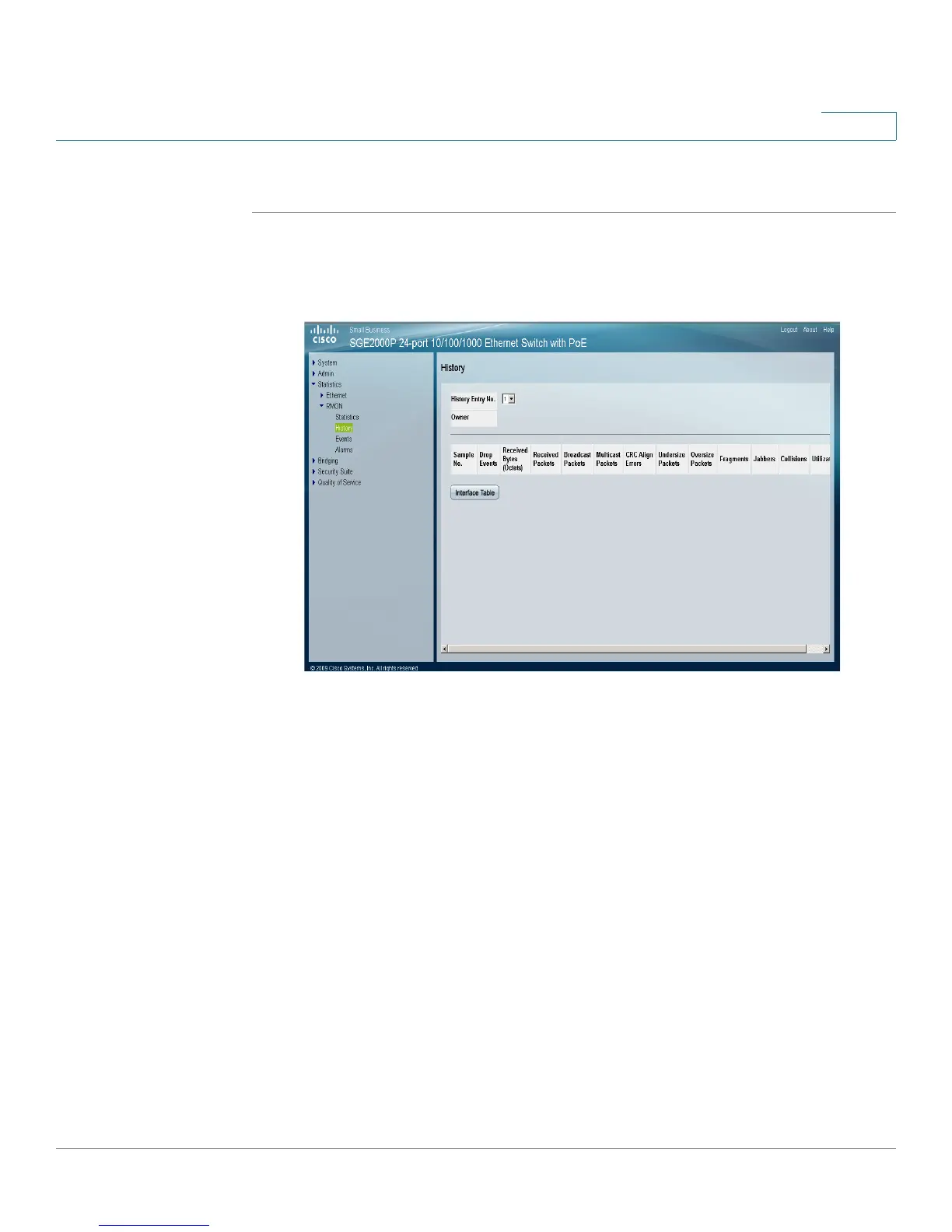

RMON History Table Page
The
RMON History Table Page contains the following fields:
• History Entry No. — Displays the entry number for the History Control Table
page.
• Owner — Displays the RMON station or user that requested the RMON
information. The field rang is 0-20 characters.
• Sample No. — Indicates the sample number from which the statistics were
taken.
• Drop Events — Indicates the number of dropped packets due to lack of
network resources during the sampling interval. This may not represent the
exact number dropped packets, but rather the number of times dropped
packets were detected.
• Received Bytes (Octets) — Displays the number of octets received on the
interface since the page was last refreshed. This number includes bad packets
and FCS octets, but excludes framing bits.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
