Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring Device Security
Defining Authentication
Cisco Small Business SFE/SGE Managed Switches Administration Guide 46
4

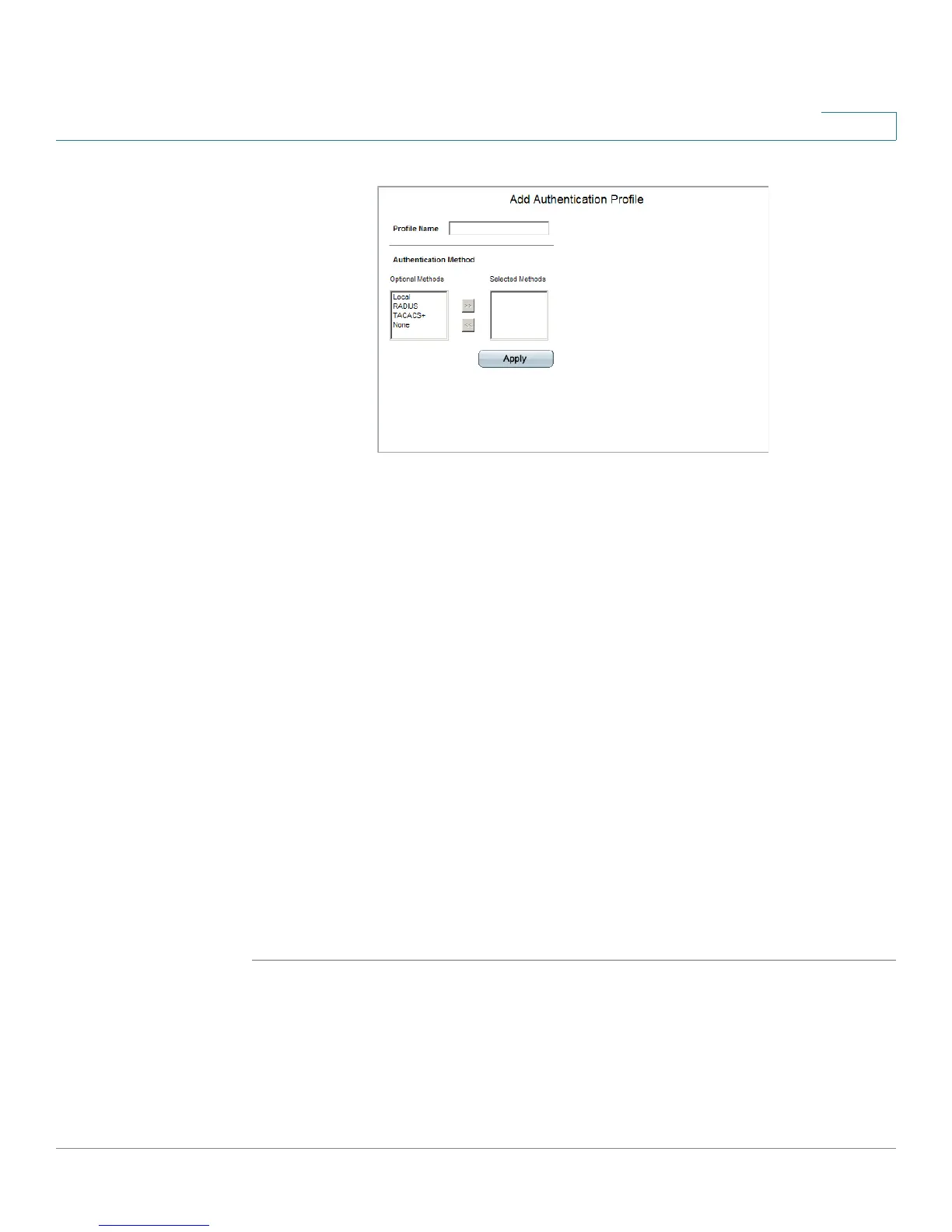

Add Authentication Profile Page
The
Add Authentication Profile Page contains the following fields:
• Profile Name — Displays the Authentication profile name.
• Authentication Method — Defines the user authentication methods. The order
of the authentication methods defines the order in which authentication is
attempted. For example, if the authentication method order is RADIUS, Local,
the system first attempts to authenticate the user on a RADIUS server. If there is
no available RADIUS server, then authentication is attempted on the local data
base. Note that if the RADIUS server is available, but authentication fails, then
the user is denied access. The possible field values are:
- Local — Authenticates the user at the device level. The device checks
the user name and password for authentication. No option can be
inserted below Local.
- RADIUS — Authenticates the user at the RADIUS server.
- TA CAC S + — Authenticates the user at the TACACS+ server.
- None — Indicates that no authentication method is used to authenticate
the user. No option can be inserted below None.
STEP 3 Click the Delete button to delete the Authentication Profile .

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
