Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring Device Security
Defining Authentication
Cisco Small Business SFE/SGE Managed Switches Administration Guide 57
4
• Key String — Defines the default key string used for authenticating and
encrypting all RADIUS communications between the device and the RADIUS
server. This key must match the RADIUS encryption.
• Usage Type — Specifies the RADIUS server authentication type. The default
value is Login. The possible field values are:
- Login — Indicates that the RADIUS server is used for authenticating user
name and passwords.
- 802.1X — Indicates that the RADIUS server is used for 802.1X
authentication.
- All — Indicates that the RADIUS server is used for authenticating user
name and passwords, and 802.1X port authentication.

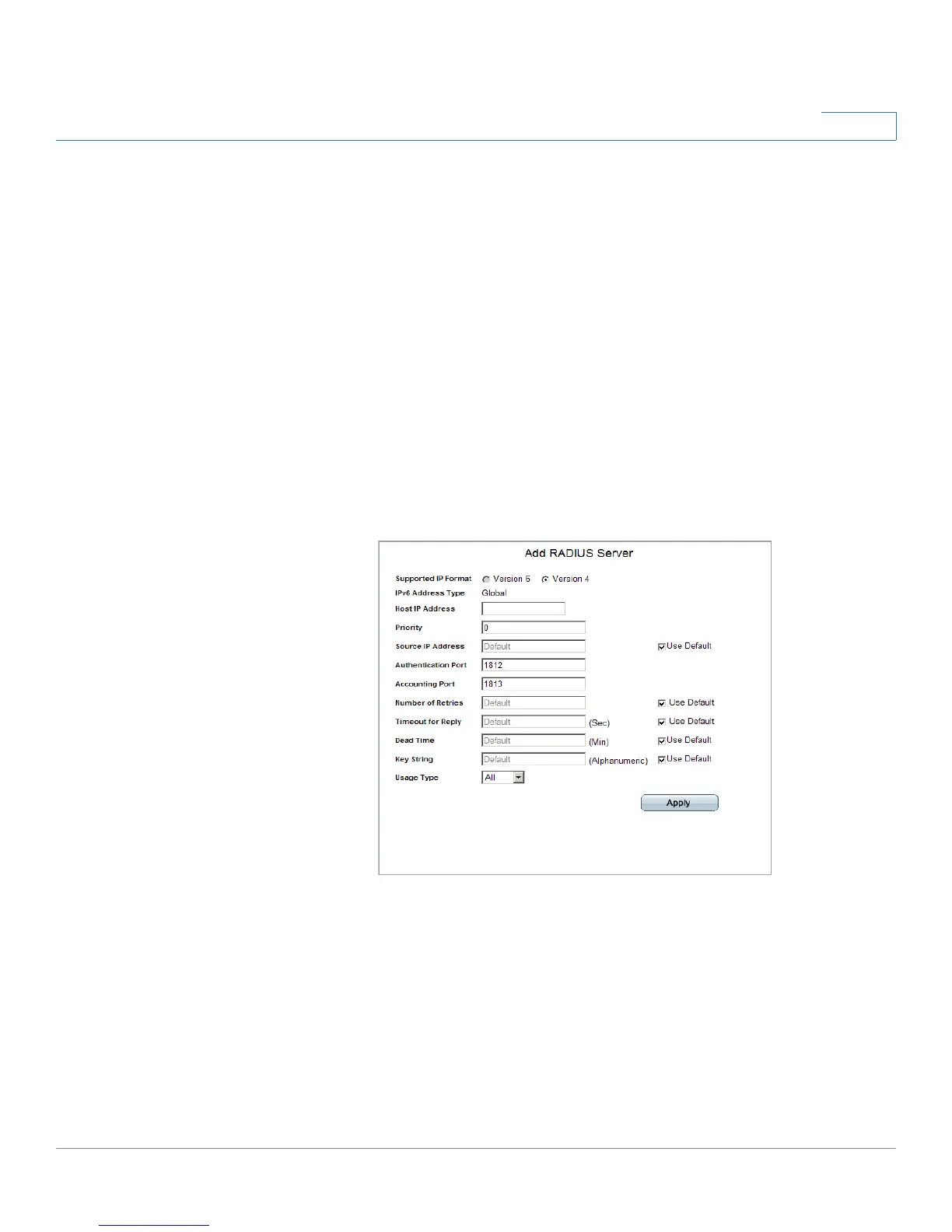

STEP 2 Click the Add button. The Add RADIUS Server Page opens:
Add RADIUS Server Page
The
Add RADIUS Server Page contains the following fields:
• Supported IP Format — Indicates the supported IP version. The possible
values are:
- Version6 — Indicates the device supports IPv6.
- Version4 — Indicates the device supports IPv4.
• IPv6 Address type — Displays the IPv6 Type. The possible field value is:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
