Configuring Device Security
Defining Traffic Control
Cisco Small Business SFE/SGE Managed Switches Administration Guide 77
4
STEP 1 Click Security Suite > Traf fic Control > Port Security. The Port Security Page
opens:

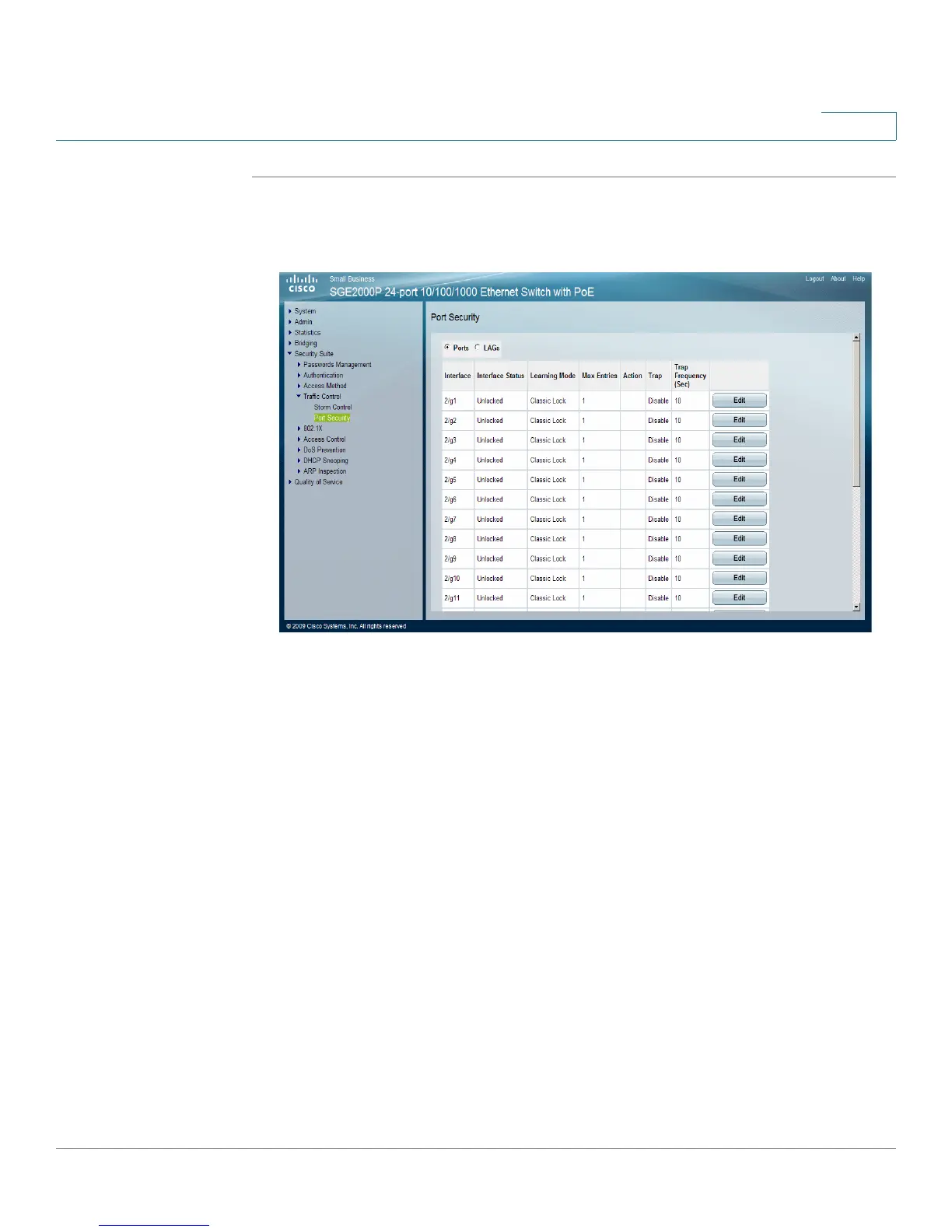

Port Security Page
The
Port Security Page contains the following fields:
• Ports of Unit — Indicates the port number and stacking member on which port
security is configured.
• LAGs — Indicates the LAG number on which port security is configured.
• Interface — Displays the port or LAG name.
• Interface Status — Indicates the port security status. The possible field values
are:
- Unlocked — Indicates the port is currently unlocked. This is the default
value.
- Locked — Indicates the port is currently locked.
• Learning Mode — Defines the locked port type. The Learning Mode field is
enabled only if Locked is selected in the Interface Status field. In order to
change the Learning Mode, the Lock Interface must be set to Unlocked. Once
the mode is changed, the Lock Interface can be reinstated.The possible field
values are:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
