Number
Name
Description
downloaded
4
PROFIBUS-DP interface
PROFIBUS-DP connection
5
RUN LED indicator
LED indicator indicator
6
SYS LED indicator
LED indicator indicator
7
DP LED indicator
LED indicator indicator
8
Set screw
Fixing the module
9
Label
Nameplate
10
Projection
Fixing the module
1. PROFIBUS-DP port
A PROFIBUS-DP port is used to connect a module to a PROFIBUS-DP network. Users can wire
AH10PFBM-5A by using the connector attached to AH10PFBM-5A.
Pin
PIN name
Description
1
--
N/C
2
--
N/C
3
RxD/TxD-P
Receiving/Sending data (P (B)
)
4
--
N/C
5
DGND
Data reference potential (C)
6
VP
Supplying positive voltage
7
--
N/C
8
RxD/TxD-N
Receiving/Sending data (N (A))
9
--
N/C

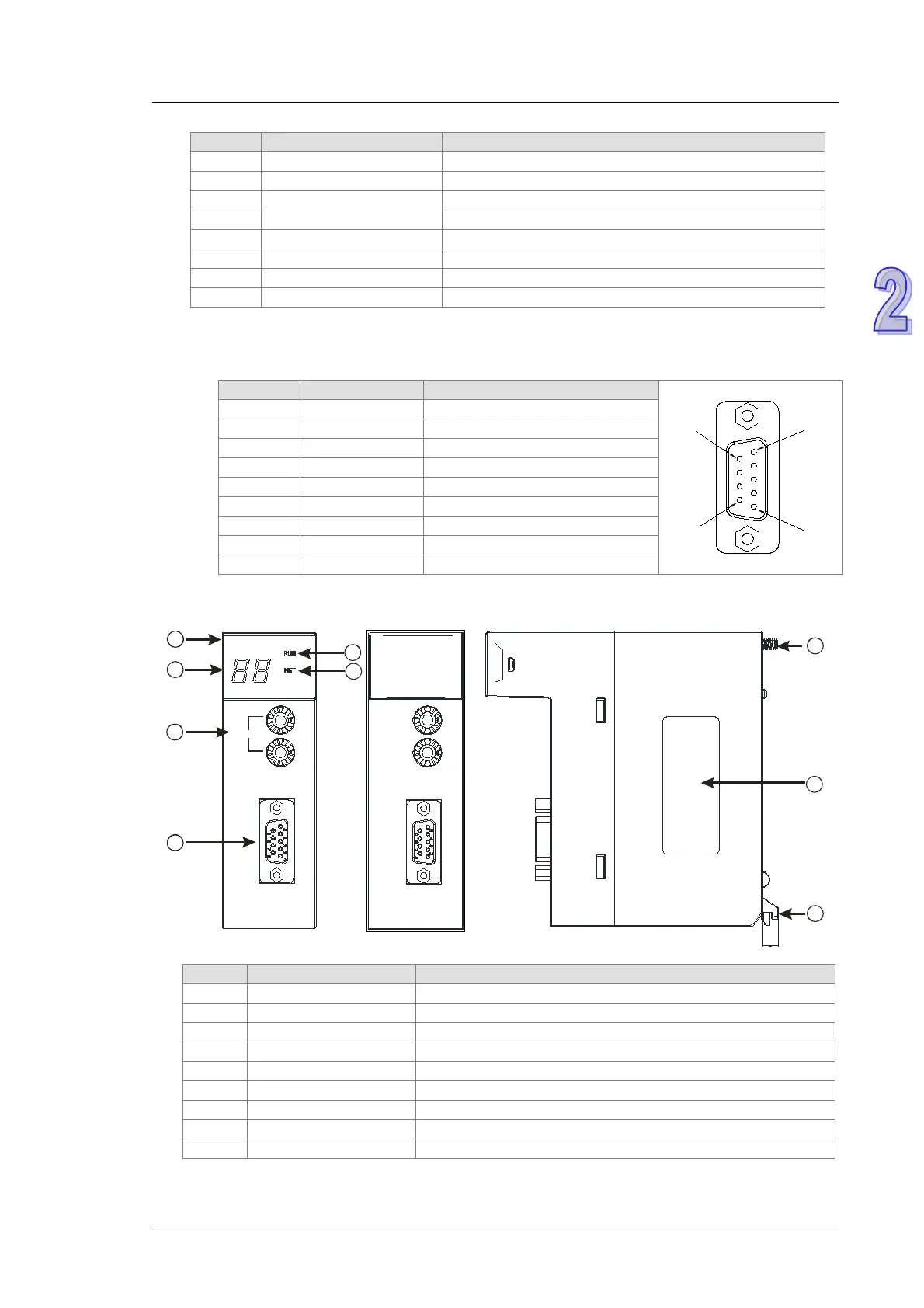

 AH10PFBS-5A
1
2
3
4
5
6
7
8
9
Number
Name
Description
1
Model name
Model name of the module
2
Seven-segment display
Display
3
Address knobs
Setting the address
4
PROFIBUS-DP interface
PROFIBUS-DP connection
5
RUN LED indicator
Operating status of the module
6
NET LED indicator
Status of a network
7
Label
Nameplate
8
Set screw
Fixing the module
9
Projection
Fixing the module
