Chapter 11 Convenient Functions
11-3
11.1.2.1 Opening the PLC Link Table Editor Window
Before creating a PLC Link, users have to make sure that all the network setting is correct. Please use one of
the methods described below.


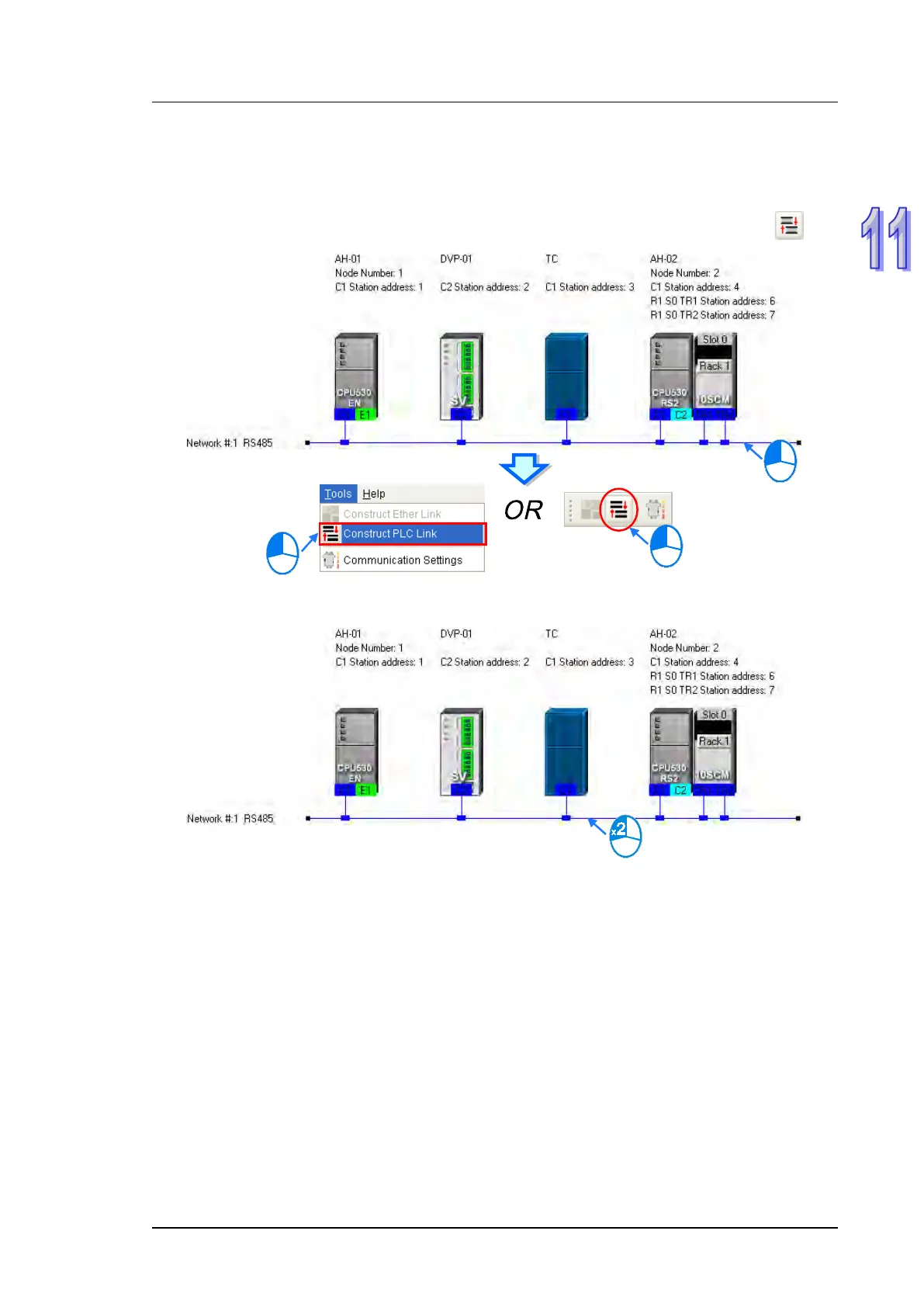

Method 1
After the users select a network, they have to click Construct PLC Link on the Tools menu, or
on
the toolbar.

Method 2
Double-click network.
