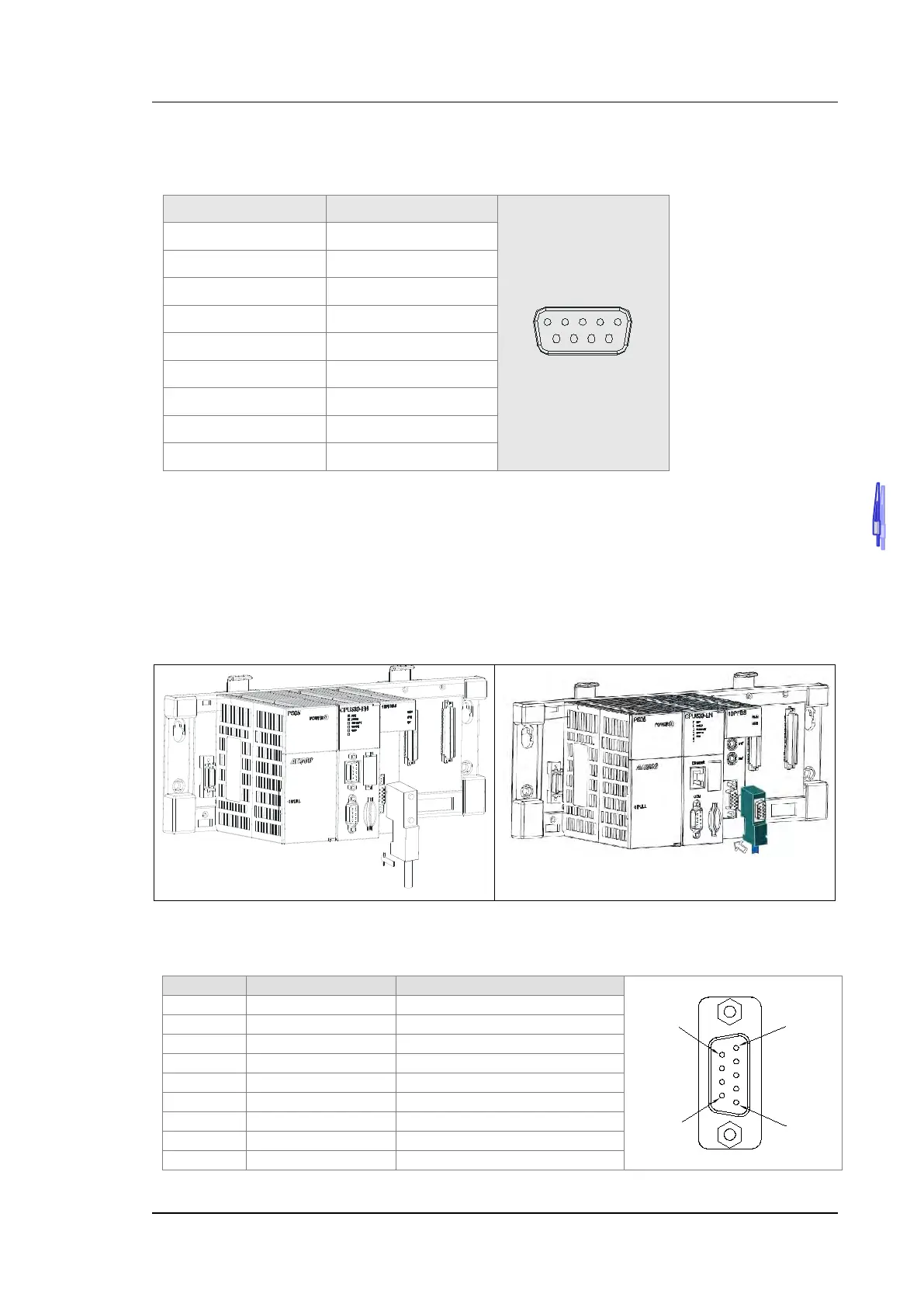

4.11.4 Wiring AH15SCM-5A
RS-232 COM Port communication port
Pin RS-485
12
3
45
67
89
1 N/C
2 TX
3 RX
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
4.11.5 Wiring AH10PFBM-5A/AH10PFBS-5A
4.11.5.1 Connecting the PROFIBUS-DP Connector
 Insert the PROFIBUS-DP connector into the communication port on AH10PFBM-5A/AH10PFBS-5A.
Tighten the screws on the PROFIBUS-DP connector to ensure that AH10PFBM-5A/AH10PFBS-5A is
reliably connected to the PROFIBUS-DP connector.
4.11.5.2 Definitions of the Pins in the PROFIBUS-DP Port
Pin
Definition
Description
1
--
N/C
2
--
N/C
3
RxD/TxD-P
Receiving/Sending data (P (B))
4
--
N/C
5
DGND
Data reference potential (C)
6
VP
Supplying positive voltage (5 V)
7
--
N/C
8
RxD/TxD-N
Receiving/Sending data (N (A))
9
--
N/C
1
5
9
6
