Chapter
2
Specifications
and System Configuration
2
-
11
7

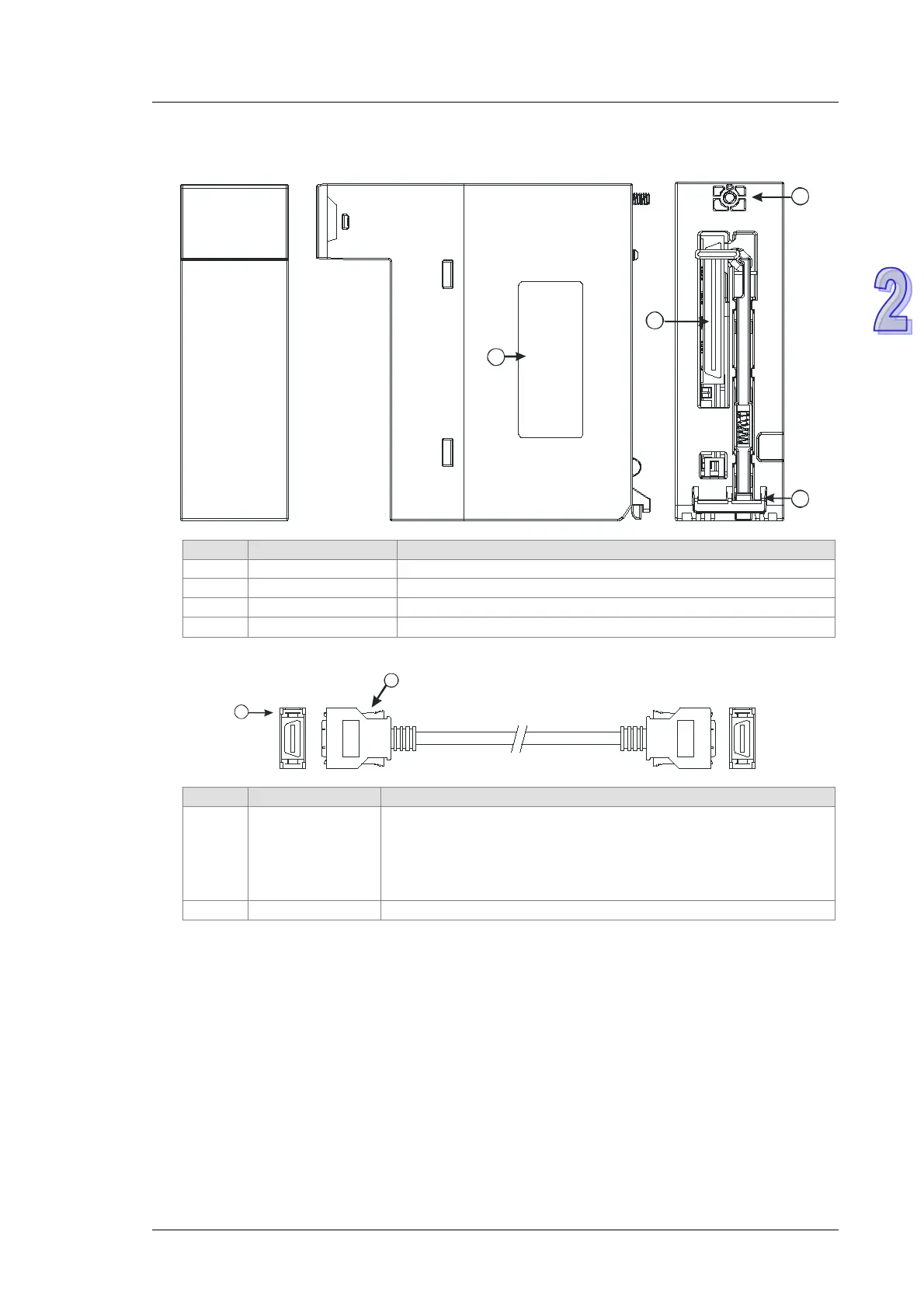

2.12.2
47B
Profiles
S
pace module
AHASP
01
-
5A
1
2
3
4
Number
Name
De
s
cription
1
Label
Nameplate
2
Set screw
Fixing the m
odule
3
Connector
Connectin
g
the module an
d
a backplane
4
Projection
Fixing the m
odule
E
xtension cab
le
2
1
Number
Name
De
s
cription
1
Connector
Connectin
g backplanes
1.
AHACAB06-
5
A
2.
AHACAB10-
5A
3.
AHACAB15-
5A
4.
AHACAB30-
5A
2
Clip
Fixing the c
onnector
149
151
Table of Contents
DELTA_IA-PLC_AH500
1
AH500 Hardware and Operation Manual
1
Revision History
2
Table of Contents
5
Chapter 1 Introduction
16
1.1 Introduction
17
1.1.1 Related Manuals
17
1.1.2 Description of Models
17
1.2 Overview
24
1.3 Characteristics
26
Chapter 2 Specifications and System Configuration
34
2.1 General Specifications
36
2.2 Specifications for CPU Modules
37
2.2.1 AH500 Series Basic CPU Modules
37
2.2.2 AH500 Series Advanced CPU Modules
39
2.2.3 AH500 Redundancy CPU Module Specification
41
2.2.4 Profiles
42
2.2.5 Dimensions
46
2.3 Basic System Configuration
47
2.3.1 Introduction
47
2.3.2 Configuring a Main Backplane
48
2.3.3 Configuring an Extension Backplane
48
2.3.4 Maximum Extension
48
2.4 Specifications for Backplanes
49
2.4.1 General Specifications
49
2.4.2 Profiles
50
2.4.3 Dimensions
54
2.5 Specifications for the Power Supply Module
57
2.5.1 BGeneral Specifications
57
2.5.2 Profile
58
2.5.3 Dimensions
59
2.5.4 Arrangement of Terminals
60
2.6 Specifications for Digital Input/Output Modules
61
2.6.1 General Specifications
61
2.6.2 Profiles
64
2.6.3 Dimensions
73
2.6.4 Arrangement of Input/Output Terminals
78
2.7 Specifications for Analog Input/Output Modules
86
2.7.1 General Specifications
86
2.7.2 Profiles
90
2.7.3 Dimensions
92
2.7.4 Arrangement of Input/Output Terminals
93
2.8 Specifications for Temperature Measurement Modules
94
2.8.1 General Specifications
94
2.8.2 Profiles
96
2.8.3 Dimensions
98
2.8.4 Arrangement of Input/Output Terminals
99
2.9 Specifications for Network Modules
100
2.9.1 General Specifications
100
2.9.2 Profiles
103
2.9.3 Dimensions
111
2.9.4 Arrangement of Input/Output Terminals
115
2.10 Specifications for Motion Control Modules
116
2.10.1 General Specifications
116
2.10.2 Profiles
126
2.10.3 Dimensions
133
2.10.4 Arrangement of Input/Output Terminals
137
2.11 Specifications for the Remote I/O Modules
142
2.11.1 General Specifications
142
2.11.2 Profiles
143
2.11.3 Dimensions
147
2.12 Space Module and Extension Cables
149
2.12.1 General Specifications
149
2.12.2 Profiles
150
2.12.3 Dimensions
151
Chapter 3 Installing Software
