6.4.2 Setting the Parameters in a CPU Module and a Module
After AH16AP11R-5A is configured, users can set the parameters in the CPU module and the parameters in
the extension module. After the users double-click the CPU module or the extension module, a corresponding
window will appear.

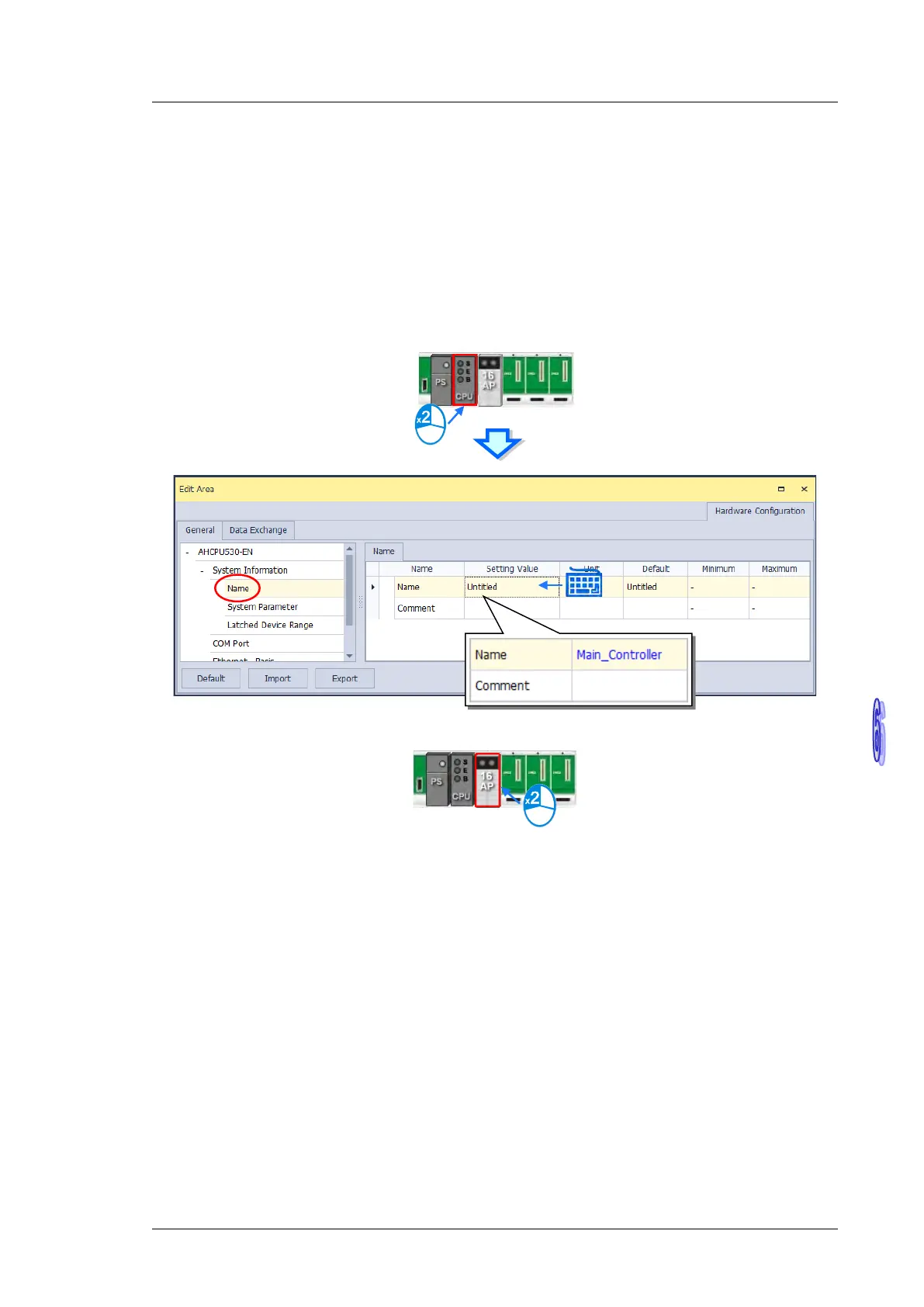

After the CPU module is double-clicked, the PLC Parameter Setting window will appear. The users can click
the primary tabs at the top of the window, and the secondary tables at the bottom of the window to set the
parameters. In this example, the users only need to define the name of the CPU module.
After the users click the CPU tab at the top of the window, and the Name tab at the bottom of the window, they
can type a name in the Name box. The users will find the default name in the Name box is the same as the
project name. Delete the default name, type “Main_Controller” in the Name box, and click OK.
After the users double-click AH16AP11R-5A, the Parameter Setting window will appear.
