AH500 Hardware and Operation Manual
4-82

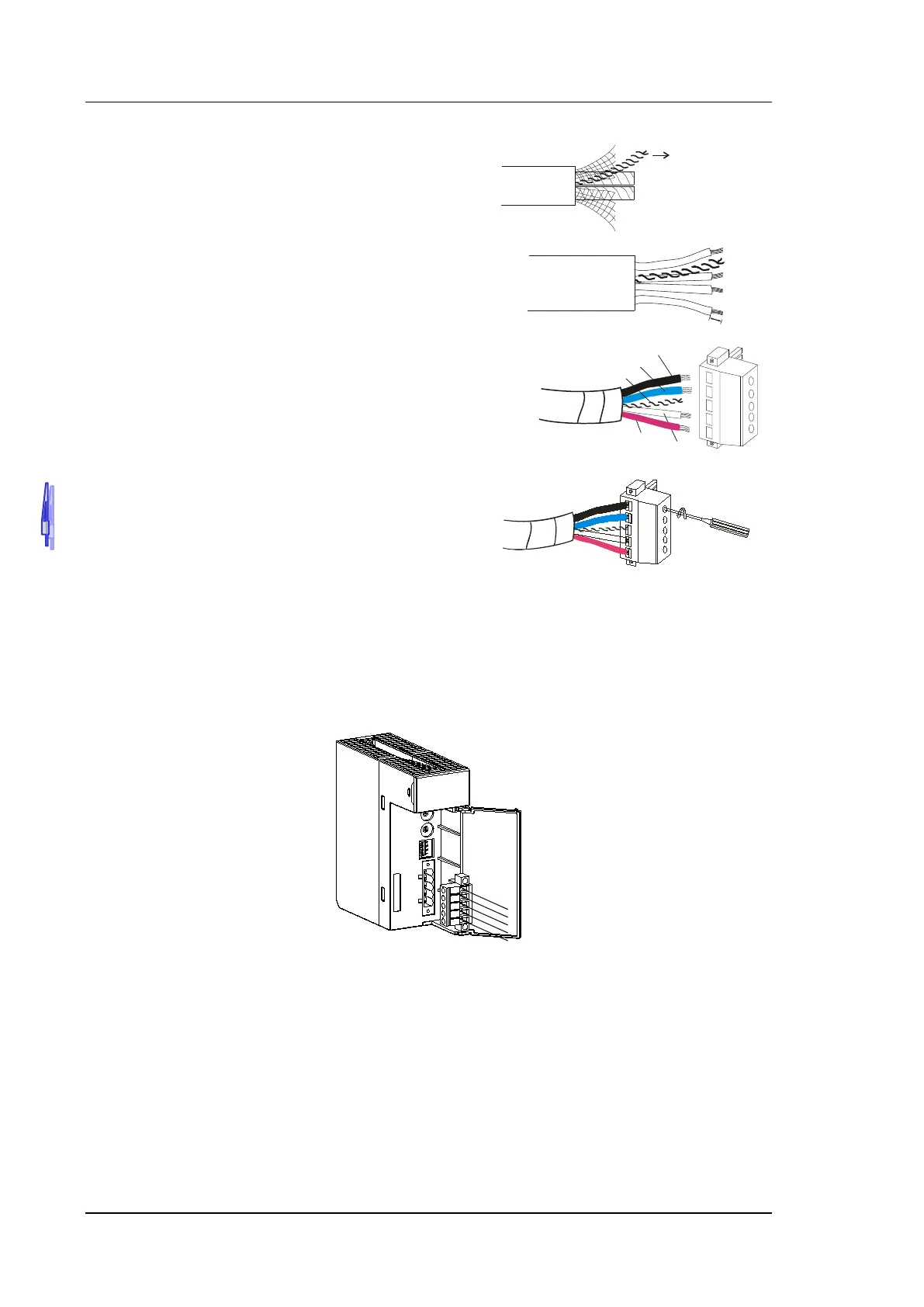

After users remove the metallic shield and the foil, they
can see two power cables (in red and black
respectively), two signal cables (in blue and white
respectively), and one shielded cable.
After the metallic shield and the foil are removed, the
users need to remove the plastic jackets of the power
cables and the plastic jackets of the signal cables
properly.
Insert the communication cable into the holes in the
connector.
After the communication cable is inserted into the holes
in the connector, tighten the screws on the connector
with a slotted screwdriver.
4.12.1.3 Installing the DeviceNet Connector
After the wiring is complete, users can insert the DeviceNet connector into the interface.
Tighten the two screws on the DeviceNet connector.
Points for attention:
After the communication cable is kept separate from the power cable, the electromagnetic interference is
reduced.
Only after the both ends of the shielded cable are grounded can the shielded cable be brought into full
play.
Blue (CAN_L)
Shielded cable (CAN_SHLD)
Bl
ack (V-)
Red (V+)
White(CAN_H)
