5.4 Software-defined Addresses
5.4.1 Start Addresses for Digital Input/Output Modules

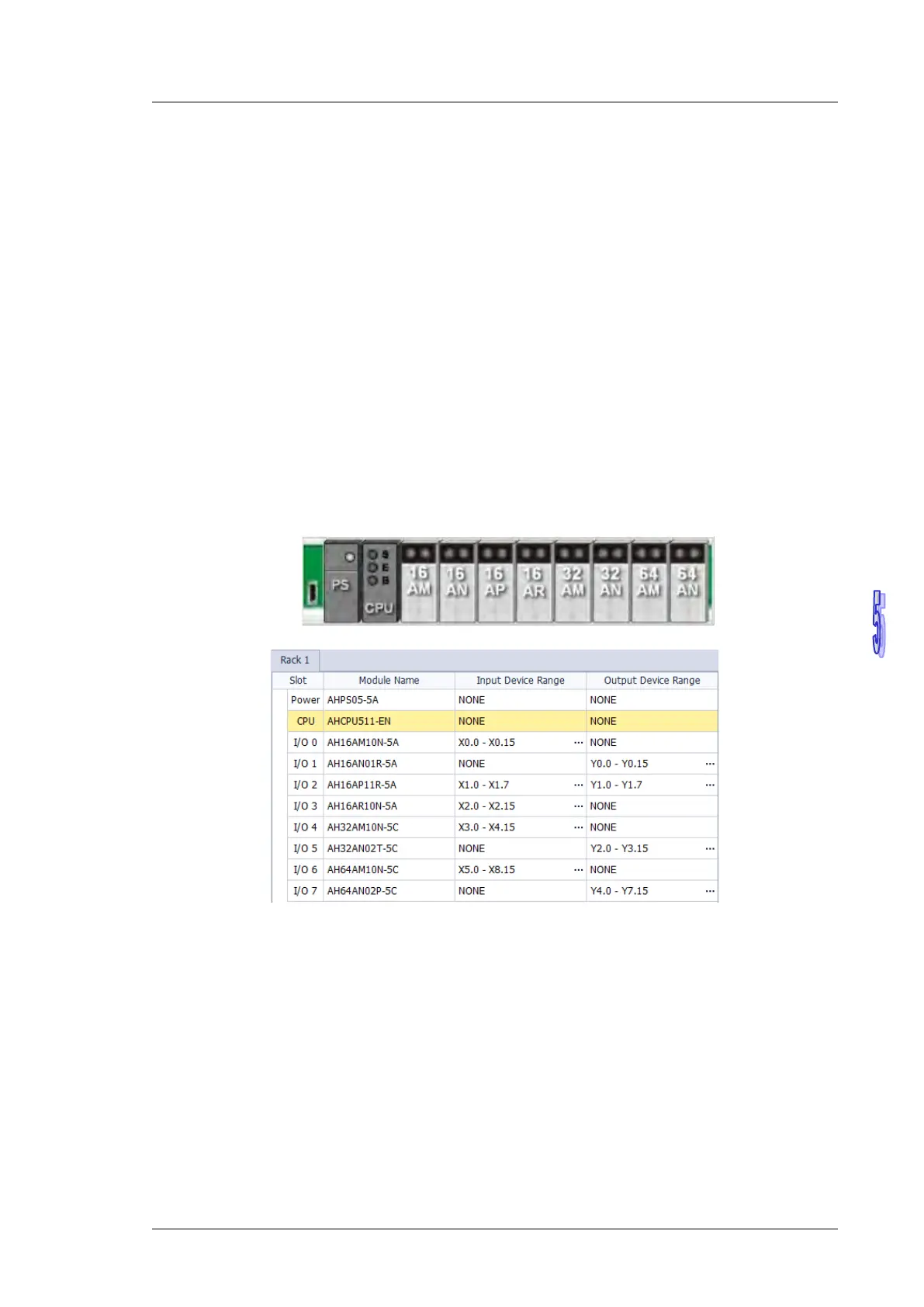

Input/Output devices are automatically assigned to a digital input/output module through HWCONFIG in
ISPSoft according to the number of inputs/outputs which the digital input/output module has. The default start
addresses are shown below.
 AH16AM10N-5A/AH16AM30N-5A: There are 16 inputs. The input device range occupies 16 bits.
(Xn.0~Xn.15)
 AH16AN01R-5A/AH16AN01T-5A/AH16AN01P-5A/AH16AN01S-5A: There are 16 outputs. The output
device range occupies 16 bits. (Yn.0~Yn.15)
 AH16AP11R-5A/AH16AP11T-5A/AH16AP11P-5A: There are 8 inputs, and 8 outputs. The input device
range occupies 16 bits, and the output device range occupies 16 bits. (Xn.0~Xn.7, and Yn.0~Yn.7)
 AH16AR10N-5A: There are 16 inputs. The input device range occupies 16 bits. (Xn.0~Xn.15)
 AH32AM10N-5A/AH32AM10N-5B/AH32AM10N-5C: There are 32 inputs. The input device range
occupies 32 bits.(Xn.0~Xn+1.15)
 AH32AN02T-5A/AH32AN02T-5B/AH32AN02T-5C/AH32AN02P-5A/AH32AN02P-5B/AH32AN02P-5C:
There are 32 outputs. The output device range occupies 32 bits. (Yn.0~Yn+1.15)
 AH64AM10N-5C: There are 64 inputs. The input device range occupies 64 bits. (Xn.0~Xn+3.15)
 AH64AN02T-5C/AH64AN02P-5C: There are 64 outputs. The output device range occupies 64 bits.
(Yn.0~Yn+3.15)
