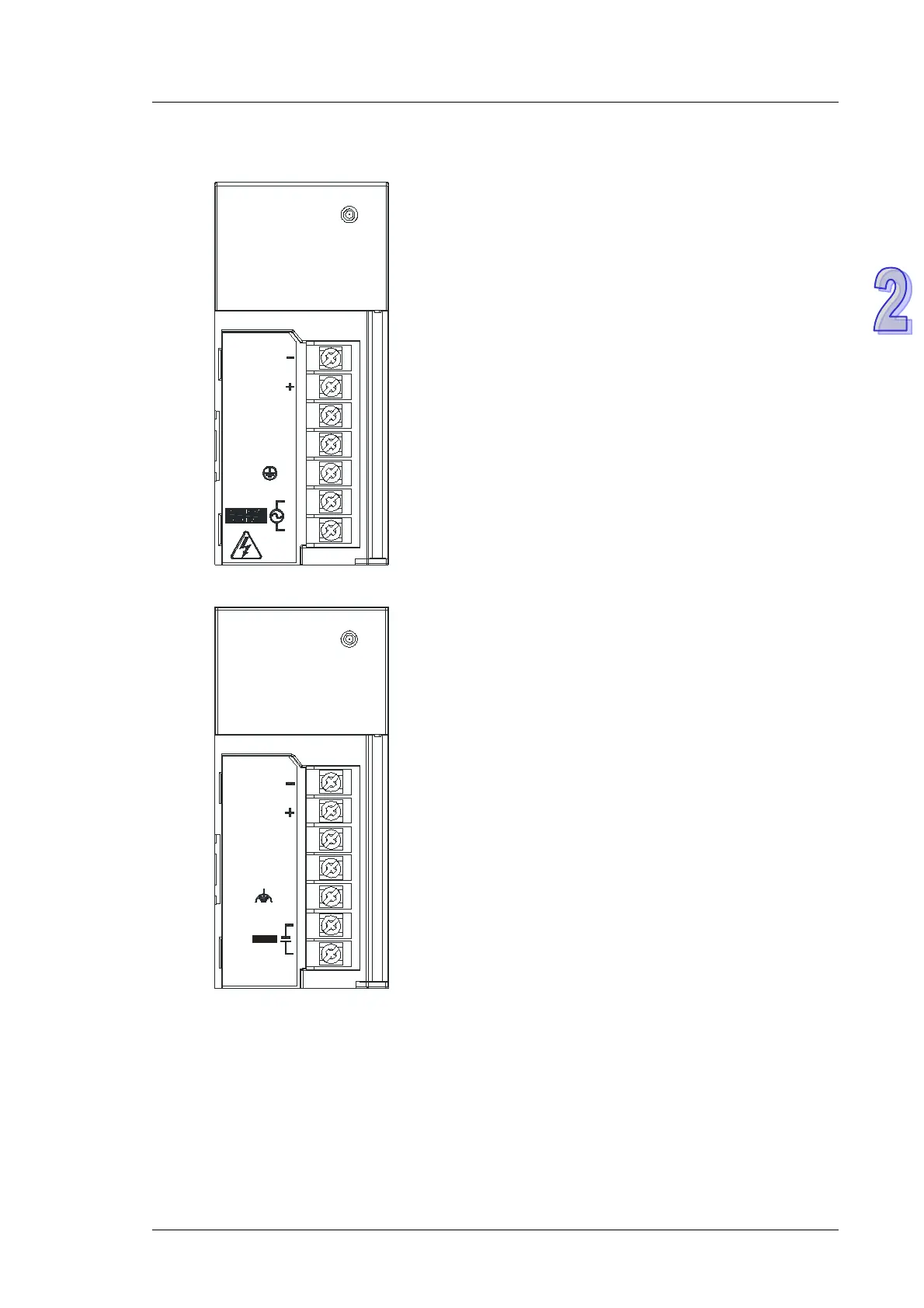

2.5.4 22BArrangement of Terminals
 AHPS05-5A
PS05
POWER
NC
FG
INPUT
VS
VS
LG
N
L
 VS-: It is connected to the negative 24 VDC power supply,
and used to detect the external power supply.
 VS+: It is connected to the positive 24 VDC power supply,
and used to detect the external power supply.
 NC: No connection
 FG: Functional ground
 LG: Line ground
 L/N: AC power input
 AHPS15-5A
PS15
NC
FG
24G
INPUT
VS
VS
FE
+24V
24 VDC
POWER
 VS-: It is connected to the negative 24 VDC power supply,
and used to detect the external power supply.
 VS+: It is connected to the positive 24 VDC power supply,
and used to detect the external power supply.
 NC: No connection
 FG: Functional ground
 FE: Line ground
 24G/+24V: DC power input
